Instrument Cluster Connector End Views

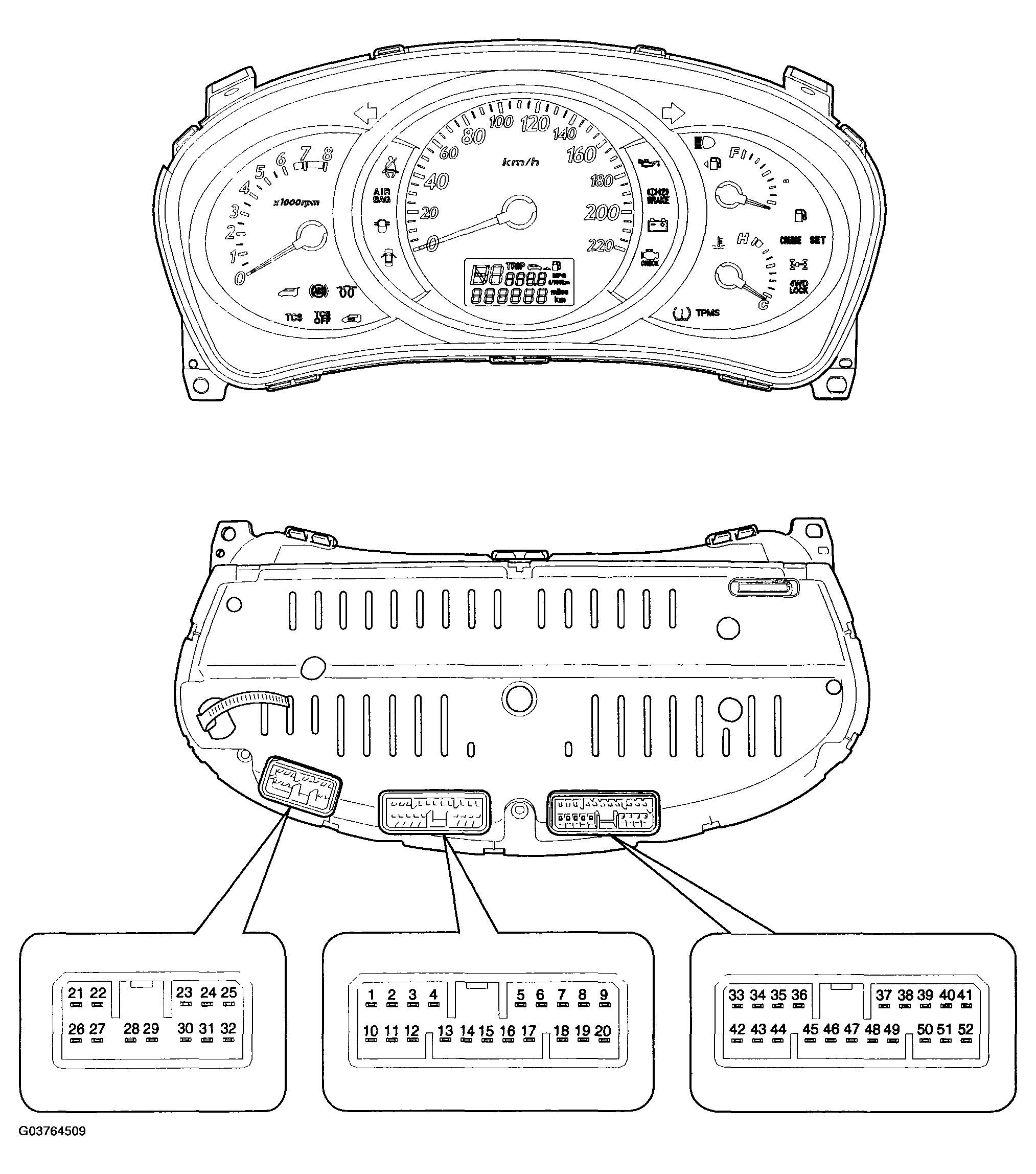

Fig 1: Instrument Cluster Connector End Views

G03764509

Courtesy of HYUNDAI MOTOR AMERICA
