Engine Control Main Relay End View & Location

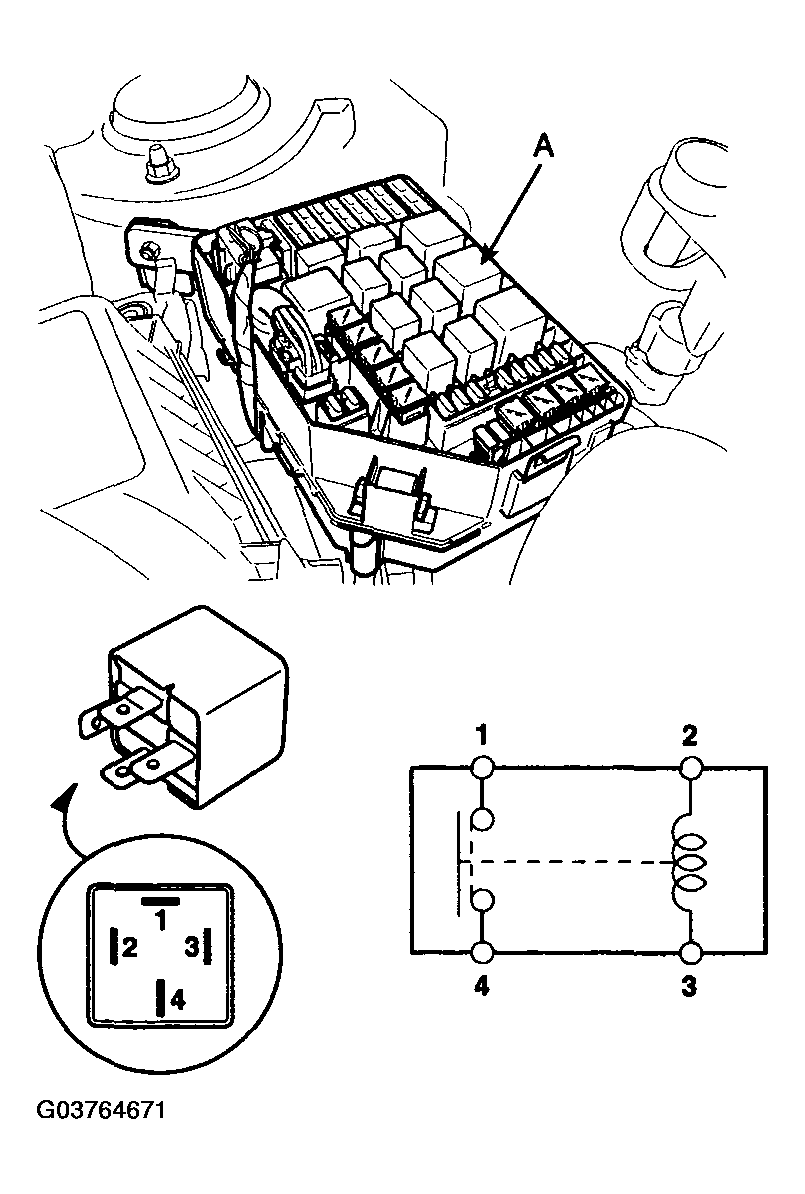

Fig 1: Engine Control Main Relay End View & Location

G03764671

Courtesy of HYUNDAI MOTOR AMERICA
