Circuit Diagram

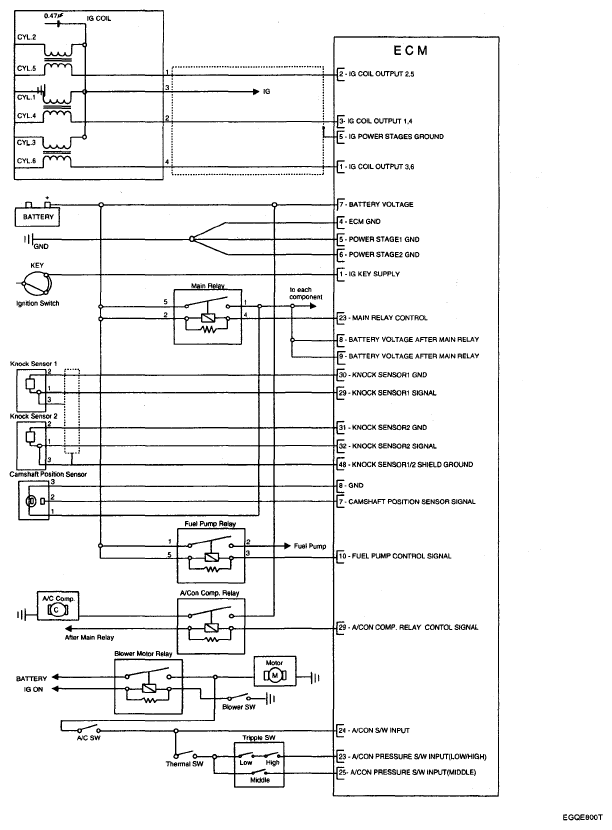

Fig 1: Fuel System Circuit Diagram (1 Of 3)
G04810166Courtesy of HYUNDAI MOTOR CO.

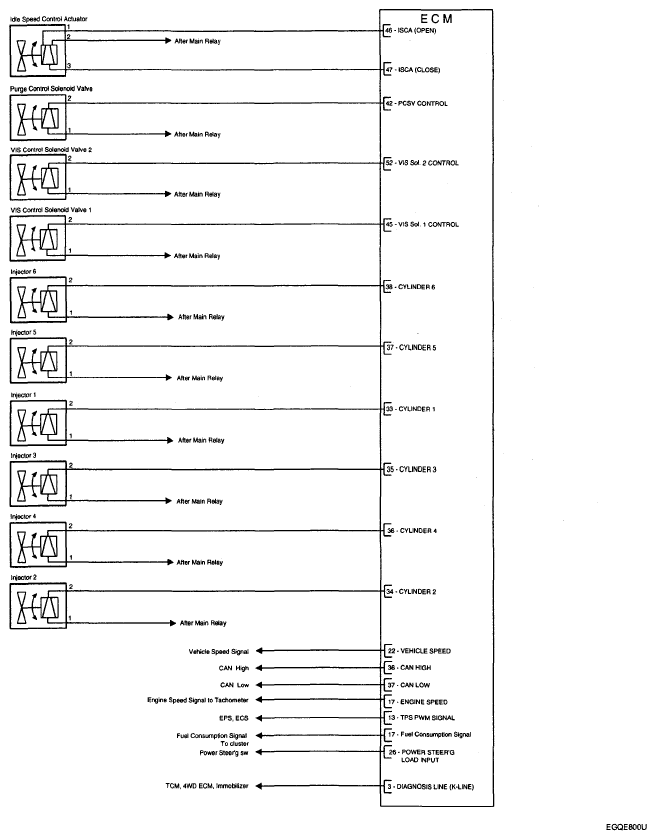

Fig 2: Fuel System Circuit Diagram (2 Of 3)
G04810167Courtesy of HYUNDAI MOTOR CO.

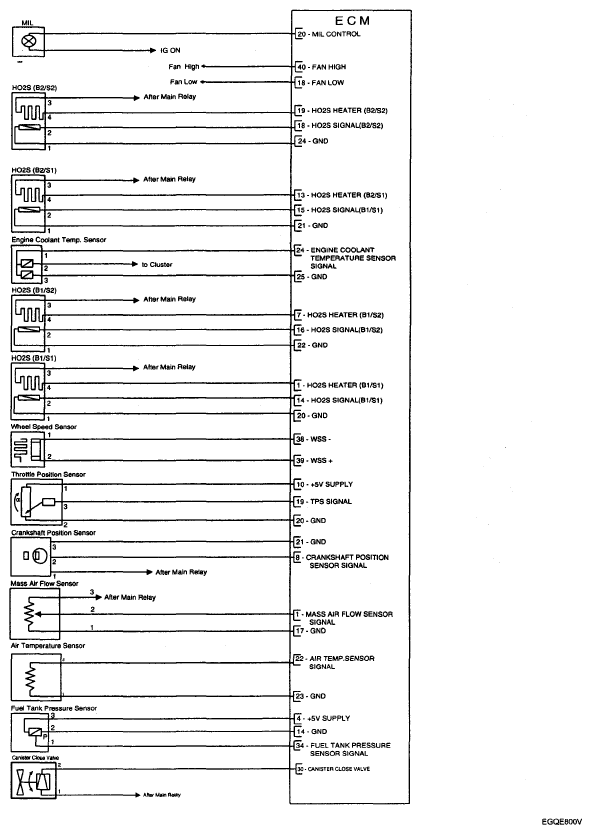

Fig 3: Fuel System Circuit Diagram (3 Of 3)
G04810168Courtesy of HYUNDAI MOTOR CO.
