Fuel Pressure Test

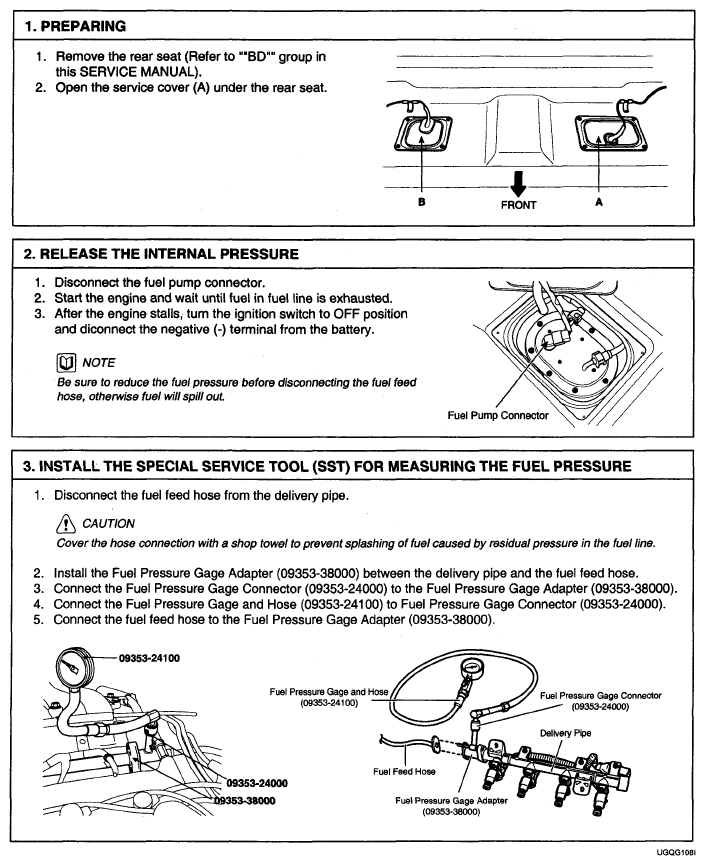

Fig 1: Fuel Pressure Test System Diagram
G04810581Courtesy of HYUNDAI MOTOR CO.
Fig 2: Fuel Leakage Test System Diagram
G04810582Courtesy of HYUNDAI MOTOR CO.
Fig 3: Identifying Fuel Pump Connector System Diagram
G04810583Courtesy of HYUNDAI MOTOR CO.
