Manual Transaxle Shift Control: Components

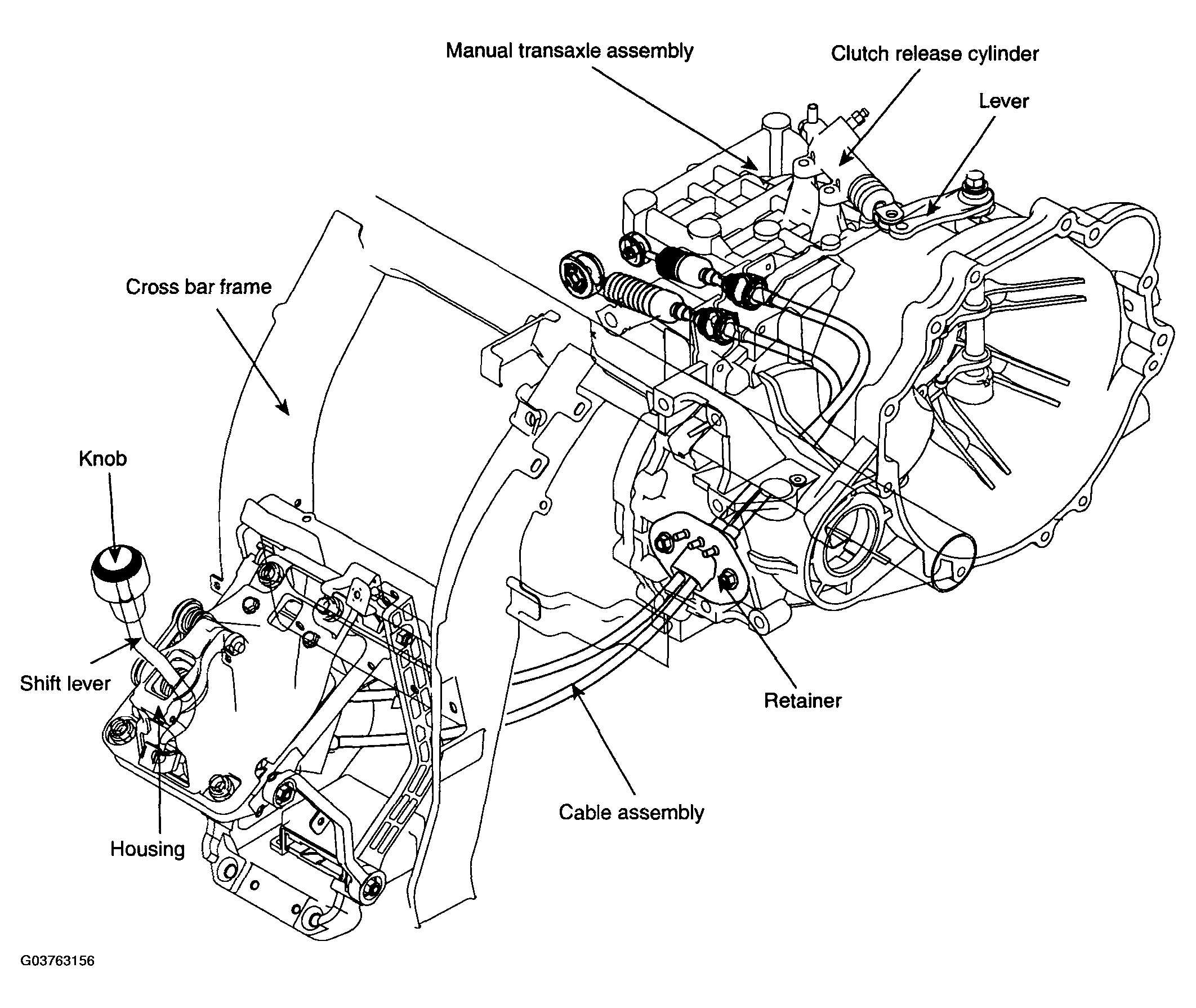

Fig 1: Identifying Manual Transaxle Shift Control Components

G03763156

Courtesy of HYUNDAI MOTOR CO.
