Engine Block: Components

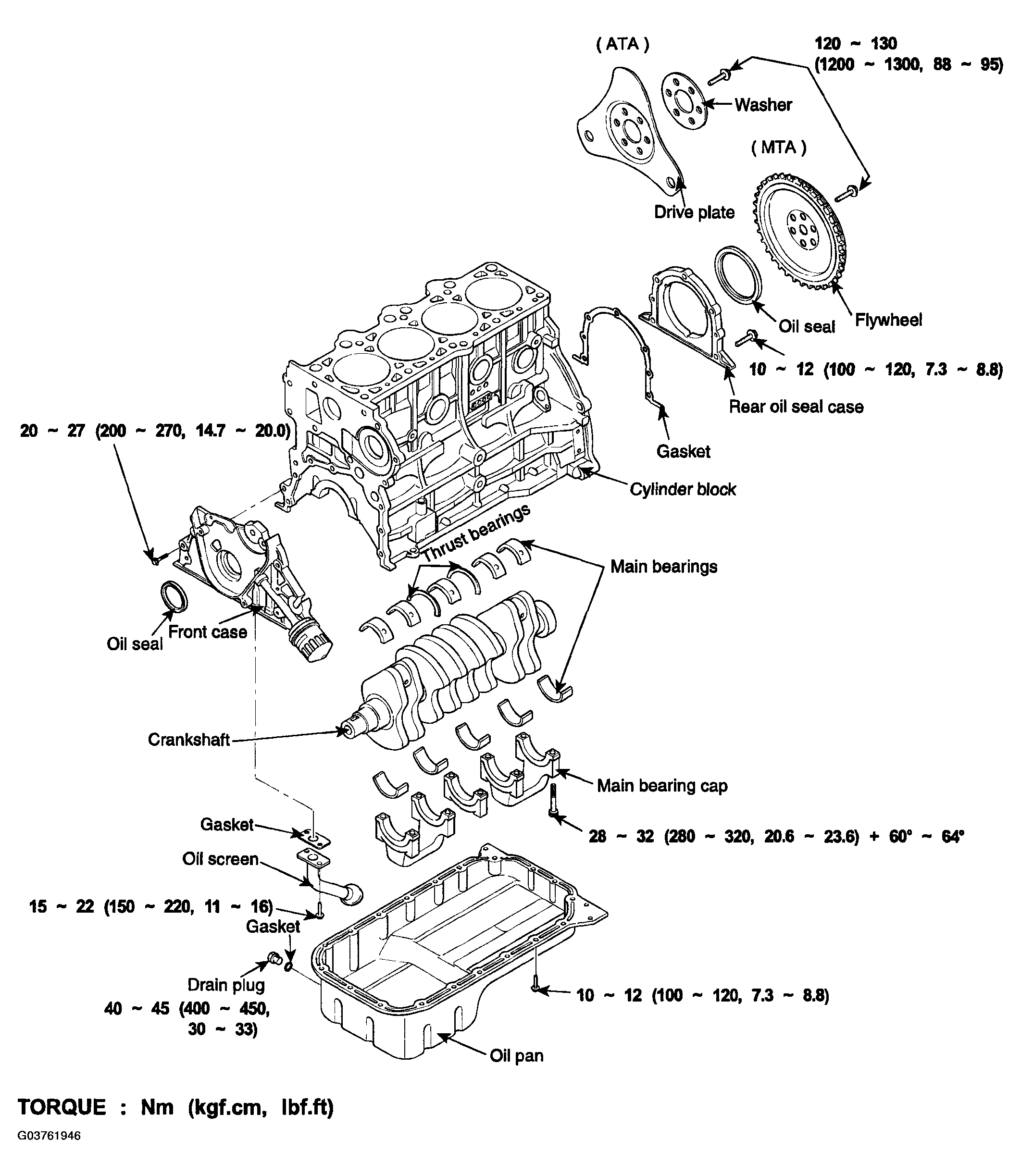

Fig 1: Engine Block Replacement Components With Torque Specifications (1 Of 2)
G03761946Courtesy of HYUNDAI MOTOR CO.

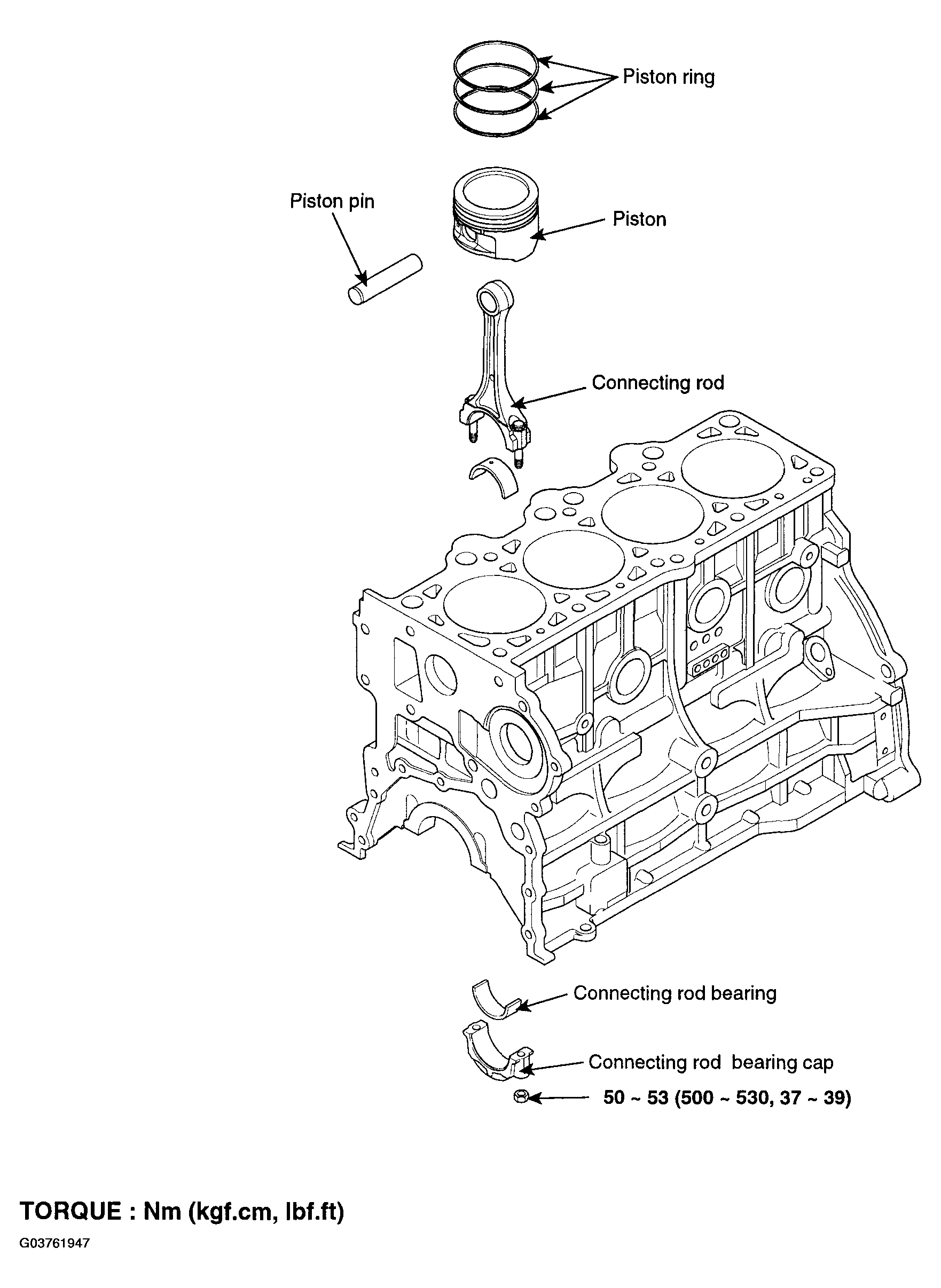

Fig 2: Engine Block Replacement Components With Torque Specifications (2 Of 2)
G03761947Courtesy of HYUNDAI MOTOR CO.
