Manual Transaxle Shift Control: Removal

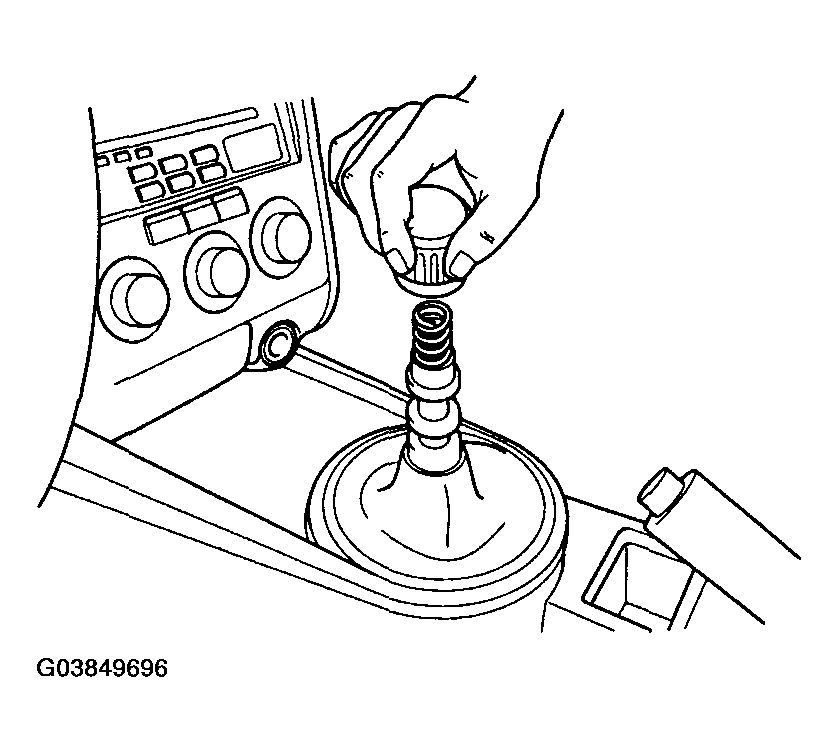

Remove the shift knob.

Fig 1: Removing Shift Knob
Courtesy of HYUNDAI MOTOR CO.

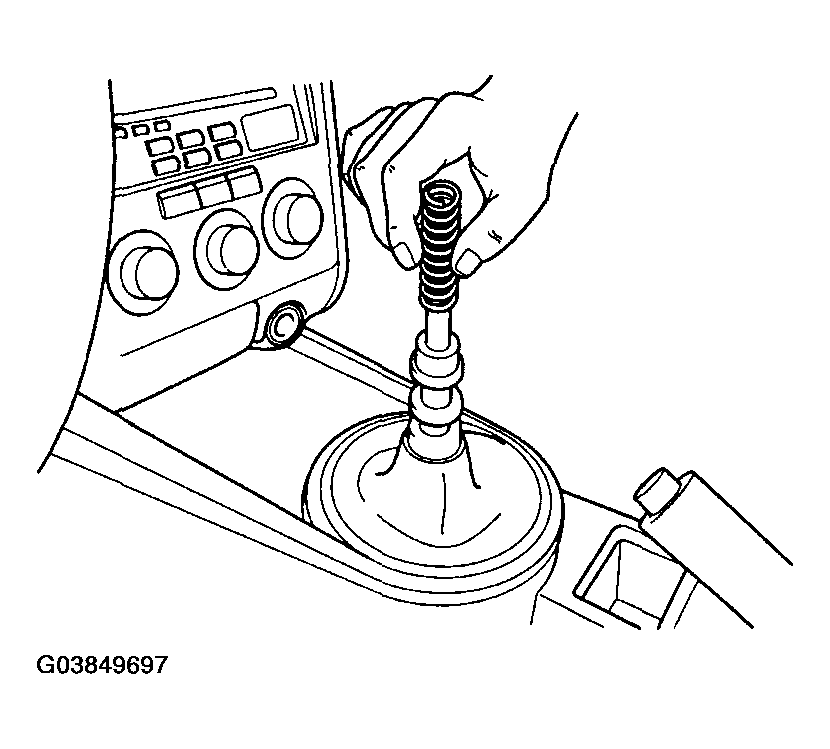

Remove the spring and the cap (for 6-speed M/T).

Fig 2: Removing Spring & Cap (For 6-Speed M/T)
Courtesy of HYUNDAI MOTOR CO.
Remove the skirt (for 6-speed M/T).

Fig 3: Removing Skirt (For 6-Speed M/T)
Courtesy of HYUNDAI MOTOR CO.
Remove the console upper cover.

Fig 4: Removing Console Upper Cover
Courtesy of HYUNDAI MOTOR CO.
Remove the console assembly.

Fig 5: Removing Console Assembly
Courtesy of HYUNDAI MOTOR CO.

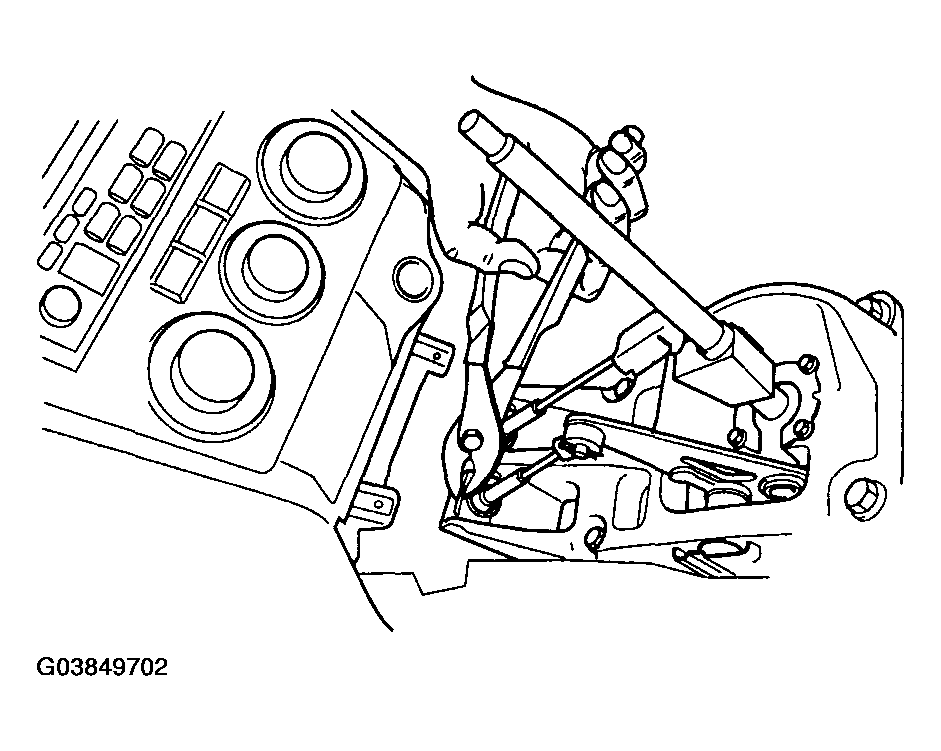

Remove the shift cable clip.

Fig 6: Removing Shift Cable Clip
Courtesy of HYUNDAI MOTOR CO.

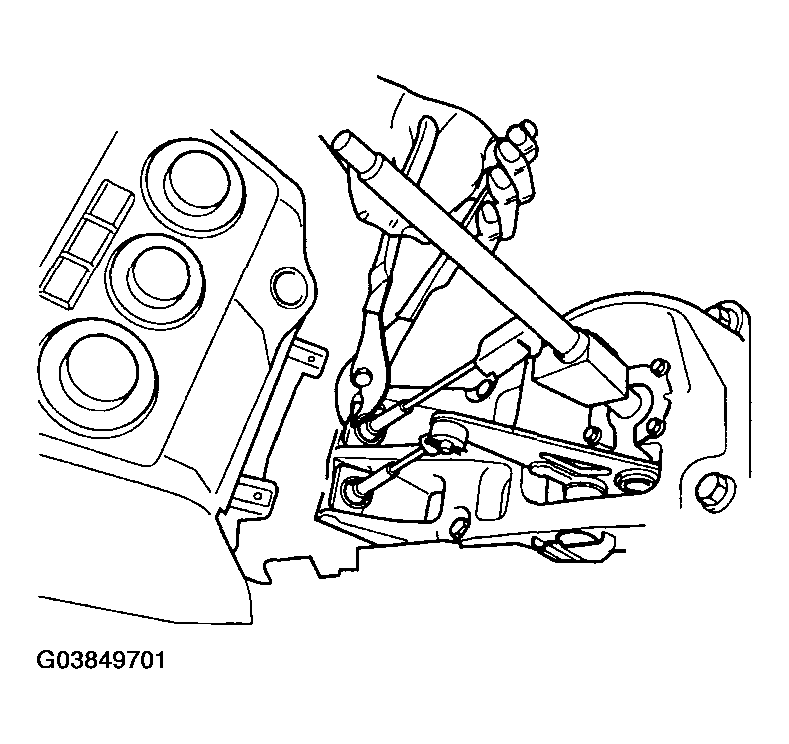

Remove the select cable clip.

Fig 7: Removing Select Cable Clip
Courtesy of HYUNDAI MOTOR CO.
Remove the snap pin of the select cable.

Fig 8: Removing Snap Pin Of Select Cable
Courtesy of HYUNDAI MOTOR CO.

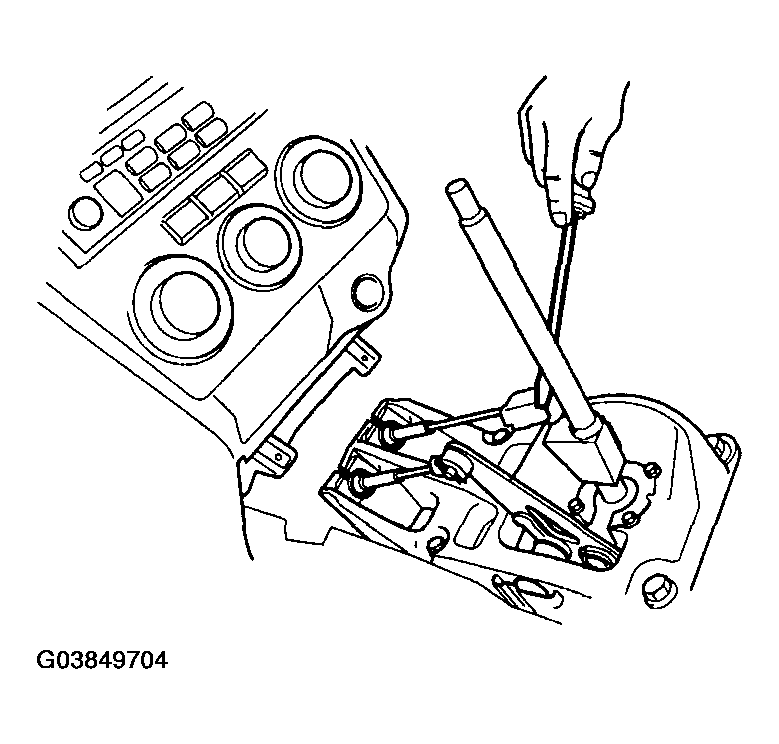

Remove the shift cable.

Fig 9: Removing Shift Cable
Courtesy of HYUNDAI MOTOR CO.

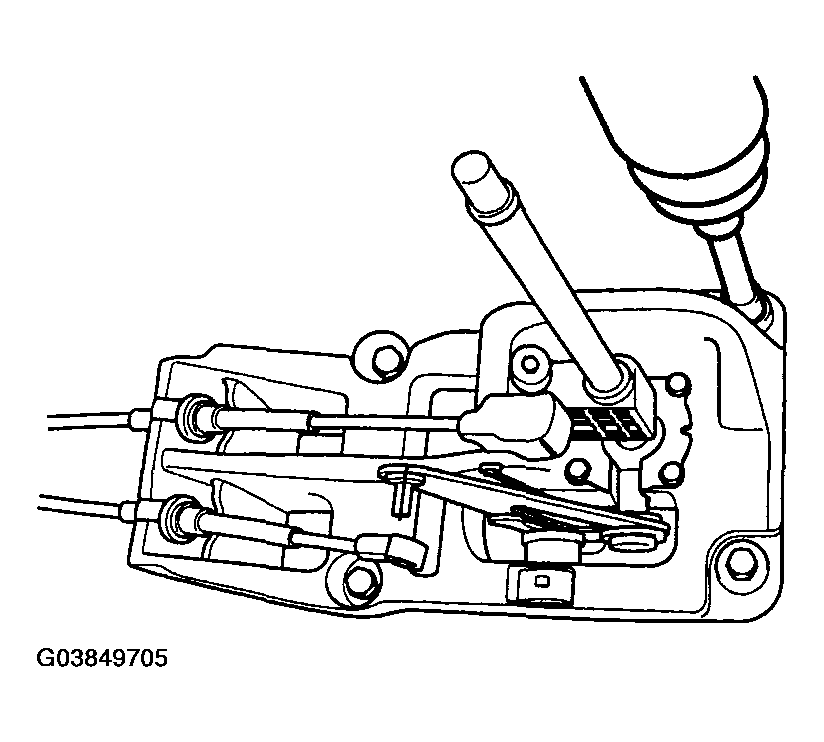

Remove the shift lever assembly.

Fig 10: Removing Shift Lever Assembly
Courtesy of HYUNDAI MOTOR CO.

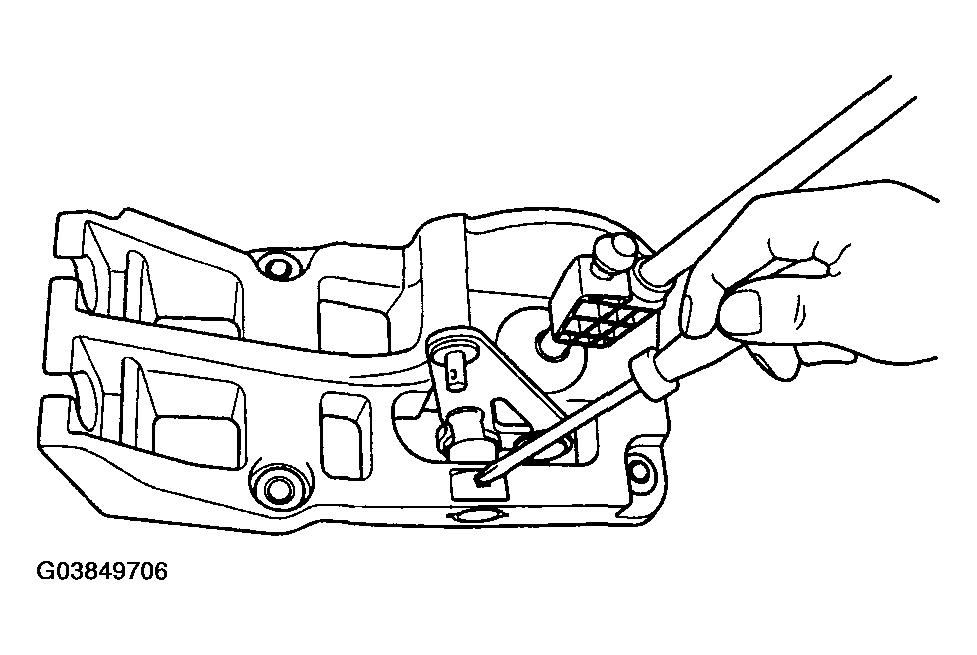

CAUTION: For 6-speed M/T, push the plate shaft outward with a driver or equivalent through the hole in the shift lever bracket to remove it.

Fig 11: Pushing Plate Shaft Outward With Driver Through Hole In Shift Lever Bracket
Courtesy of HYUNDAI MOTOR CO.
