Front Hub/Knuckle: Removal

  1. Remove the front wheel.
  2. Remove the split pin and driveshaft nut from the front hub.
  3. Remove the front brake assembly from the knuckle and suspend it with a wire.
  4. Remove the vehicle speed sensor from the knuckle.
  5. Disconnect the tie rod end ball joint from the knuckle by using the special tool (09568 - 34000).
    NOTE: Be sure to tie the special tool (09568 - 34000) to the near part with a cord not to fall.

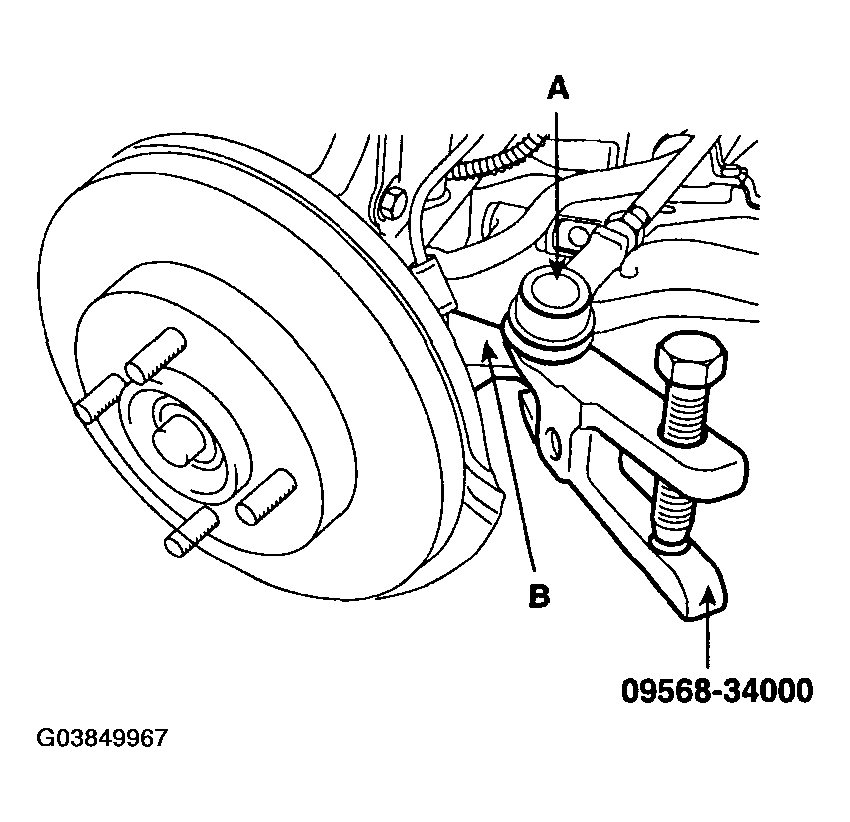

    Fig 1: Disconnecting Tie Rod End Ball Joint From Knuckle Using Special Tool
    G03849967Courtesy of HYUNDAI MOTOR CO.
  6. Disconnect the strut assembly from the knuckle.

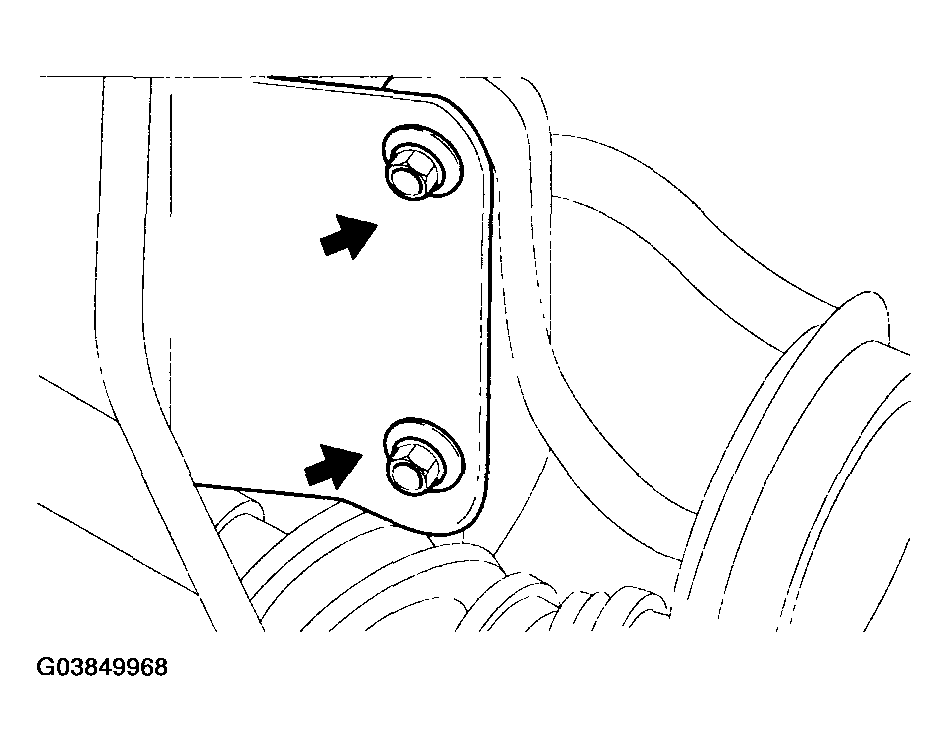

    Fig 2: Disconnecting Strut Assembly From Knuckle
    G03849968Courtesy of HYUNDAI MOTOR CO.
  7. Disconnect the driveshaft from the hub.
  8. Disconnect the lower arm ball joint from the knuckle by using the special tool (09568 - 34000).

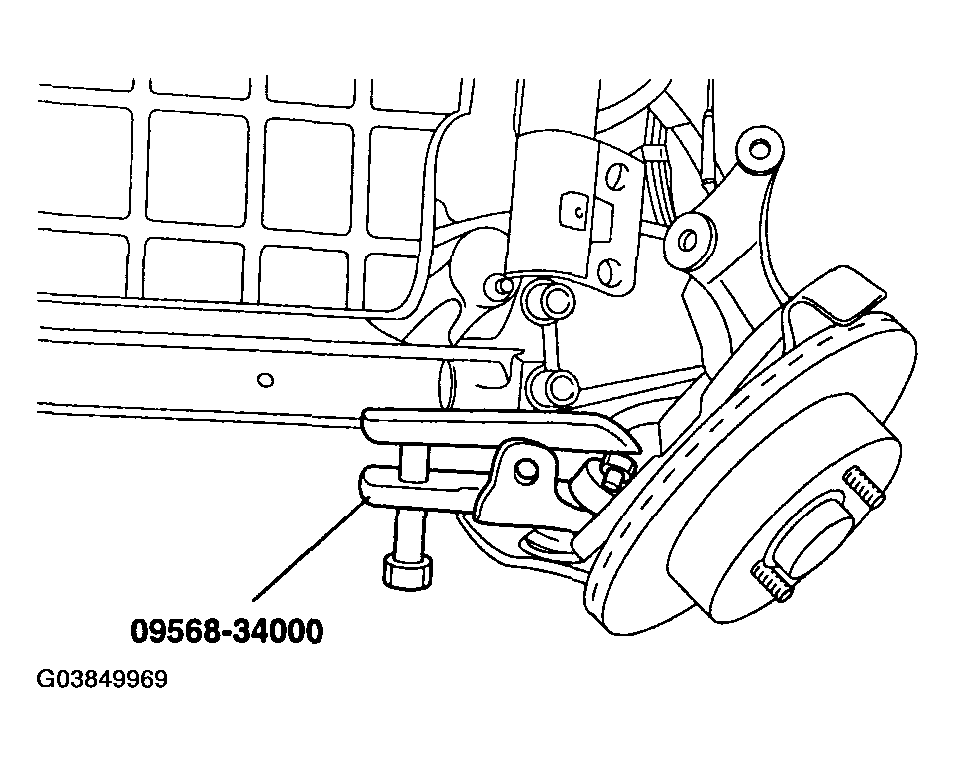

    Fig 3: Disconnecting Lower Arm Ball Joint From Knuckle Using Special Tool
    G03849969Courtesy of HYUNDAI MOTOR CO.
  9. Remove the hub and knuckle as an assembly.
