Front Hub/Knuckle: Reassembly

Apply multi-purpose grease to the contacting surface of the knuckle hub and bearing thinly.
Using the special tools (09495-33100, 09517-29000), press-in the bearing to the knuckle.
NOTE:
1. Press-in the outer race of the wheel bearing to prevent damage to the bearing assembly.
2. When installing a bearing assembly, always use a new one.

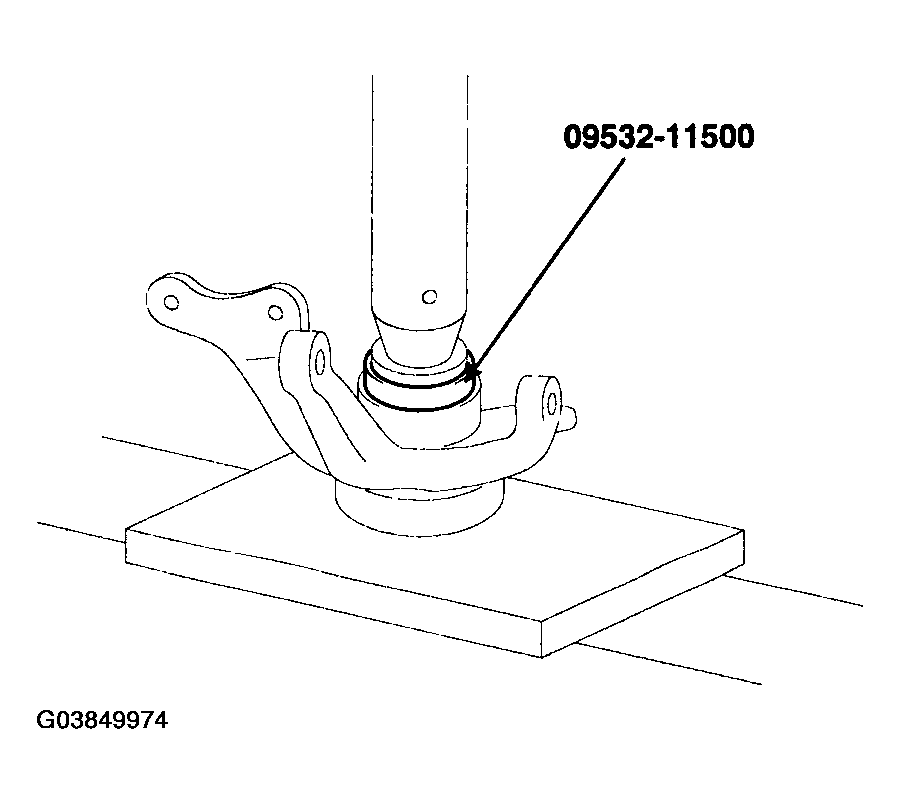

Fig 1: Using Special Tools To Press-In Bearing To Knuckle
Courtesy of HYUNDAI MOTOR CO.
Install the dust cover.
Using the special tool (09495-33100), press-in the hub to the knuckle.
NOTE: Press-in the inner race of the wheel bearing to prevent damage to the bearing assembly.

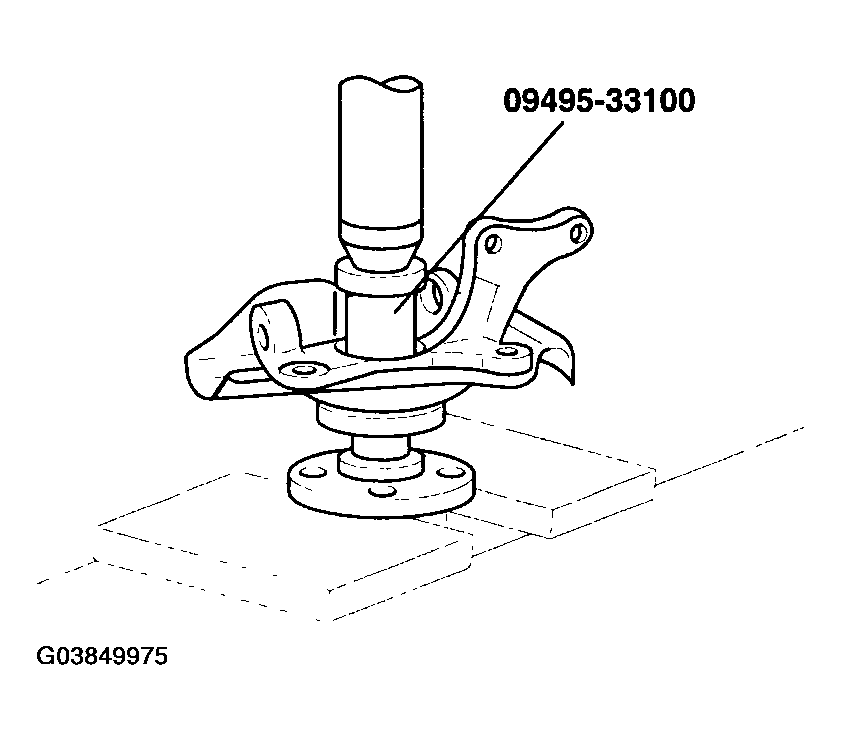

Fig 2: Using Special Tool To Press-In Hub To Knuckle
Courtesy of HYUNDAI MOTOR CO.
Install the brake disc.
Tighten the hub and the knuckle to the specified torque by using the special tool (09517-21500).
Specified torque Nm (kgf.cm, lbf.ft)

2.0L: 200~260 (2000~2600, 148~192)

2.7L: 200~280 (2000~2800, 148~207)

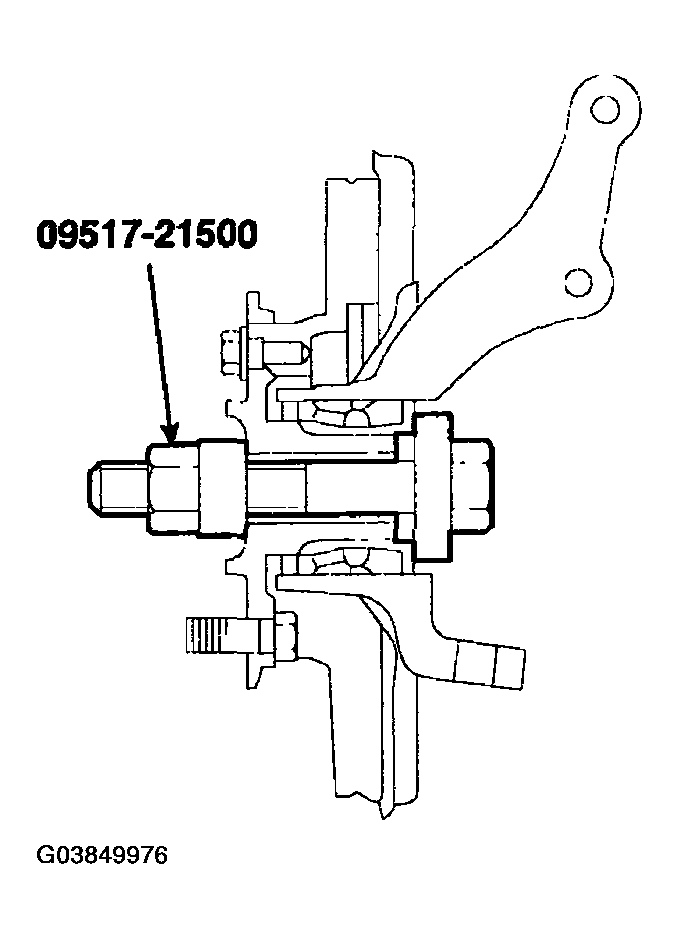

Fig 3: Tightening Hub & Knuckle Torque Using Special Tool
Courtesy of HYUNDAI MOTOR CO.
Rotate the hub several times to seat the bearing.
Measure the hub bearing starting torque.
Hub bearing starting torque [Limit]

1.8 Nm (18 kgf.cm, 1.33 lbf.ft) or less

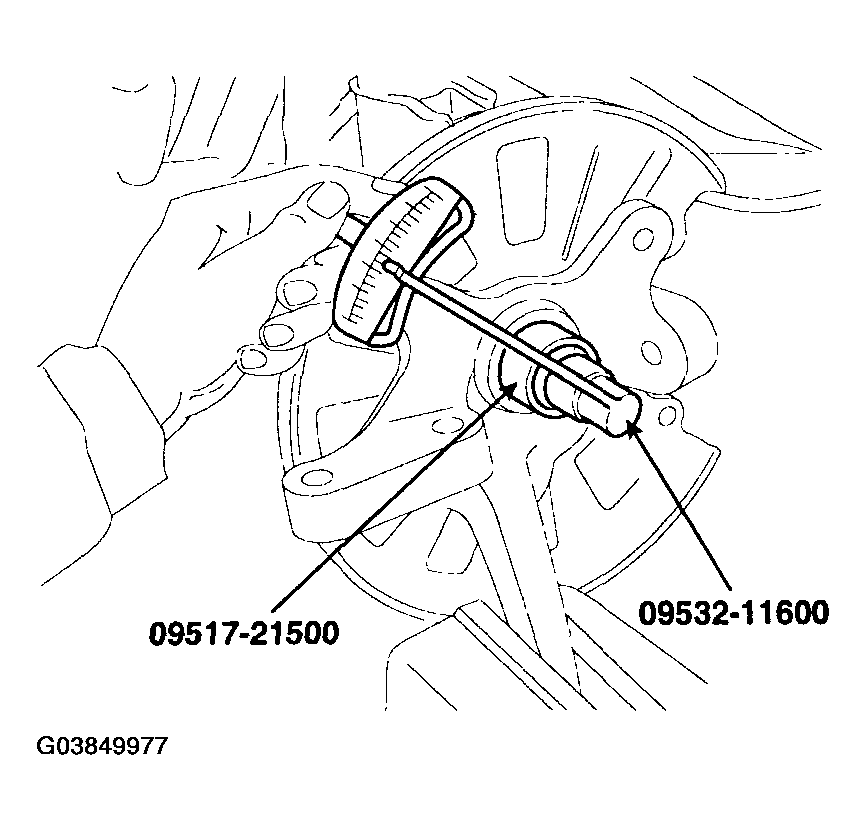

Fig 4: Measuring Hub Bearing Starting Torque
Courtesy of HYUNDAI MOTOR CO.
If the starting torque is 0 Nm (0 kgf.cm, 0 lbf.ft), measure the hub bearing axial play.

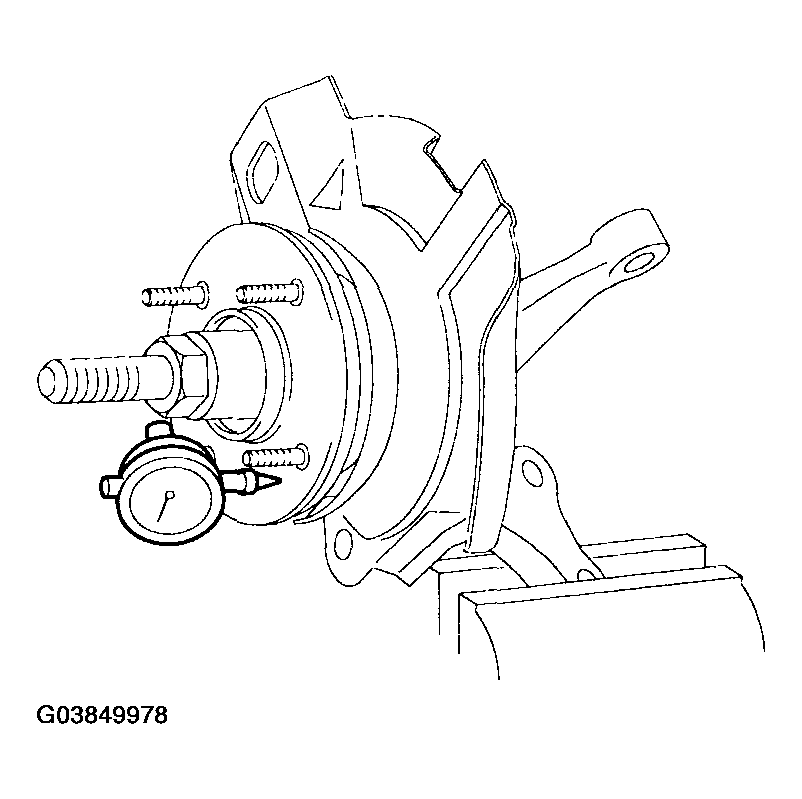

Fig 5: Measuring Hub Bearing Axial Play
Courtesy of HYUNDAI MOTOR CO.
If the hub axial play exceeds the limit while the nut is tightened to 200~260 Nm (2000~2600Kgf.cm, 148~192 lbf.ft), the bearing, hub and knuckle are not installed correctly. Repeat the disassembly and assembly procedure.
Hub bearing axial play [Limit]

0.008 mm (0.0003 in.) or less
Remove the special tool (09517-21500)
