Front Hub/Knuckle: Installation

  1. Installation is the reverse of removal.
    NOTE:
    1. Tighten the components below to the specified torque as follows:
      TORQUE SPECIFICATION

      Items Torque Nm (kgf.cm, lb.ft)
      Driveshaft nut (2.0L)
      Driveshaft nut (2.7L)      		 200~260
      (2000~2600, 148~192)
      200~280
      (2000~2800, 148~207
      Lower arm ball joint to knuckle nut 60~72 (600~720, 44~53)
      Knuckle to strut assembly nut 140~160
      (1400~1600, 103~118)
    2. Install the washer behind the driveshaft nut with the convex side outward as shown in the illustration.

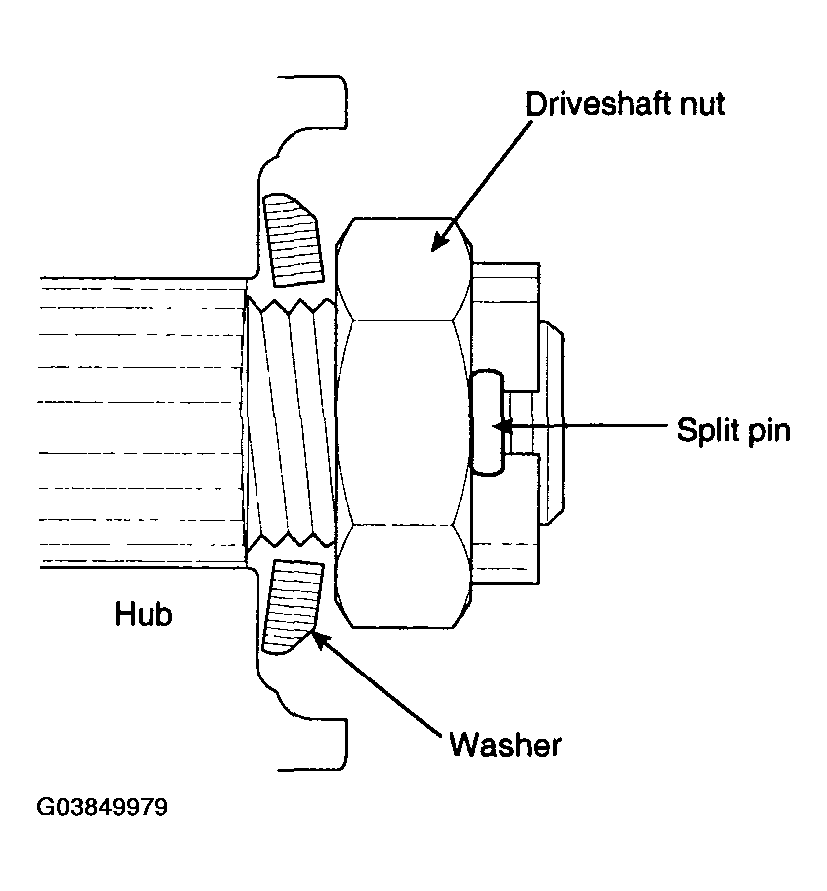

    Fig 1: Installing Washer Behind Driveshaft Nut With Convex Side Outward
    G03849979Courtesy of HYUNDAI MOTOR CO.
