Front Hub/Knuckle: Disassembly

  1. After removing the screws(2) mounting the brake disc, remove the brake disc from the hub.
  2. Remove the snap ring.

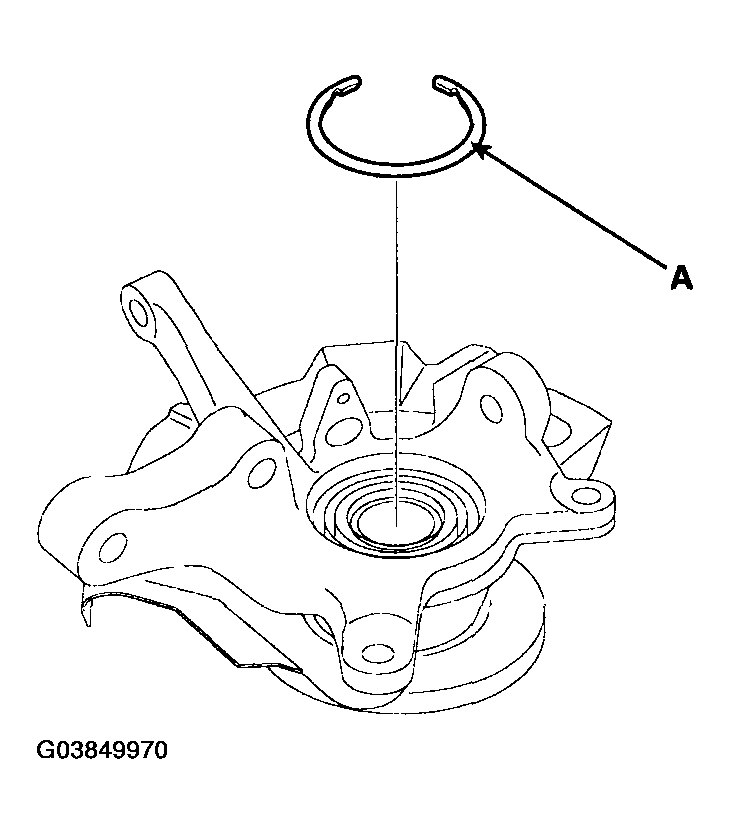

    Fig 1: Removing Snap Ring
    G03849970Courtesy of HYUNDAI MOTOR CO.
  3. Install the special tools as illustrated.

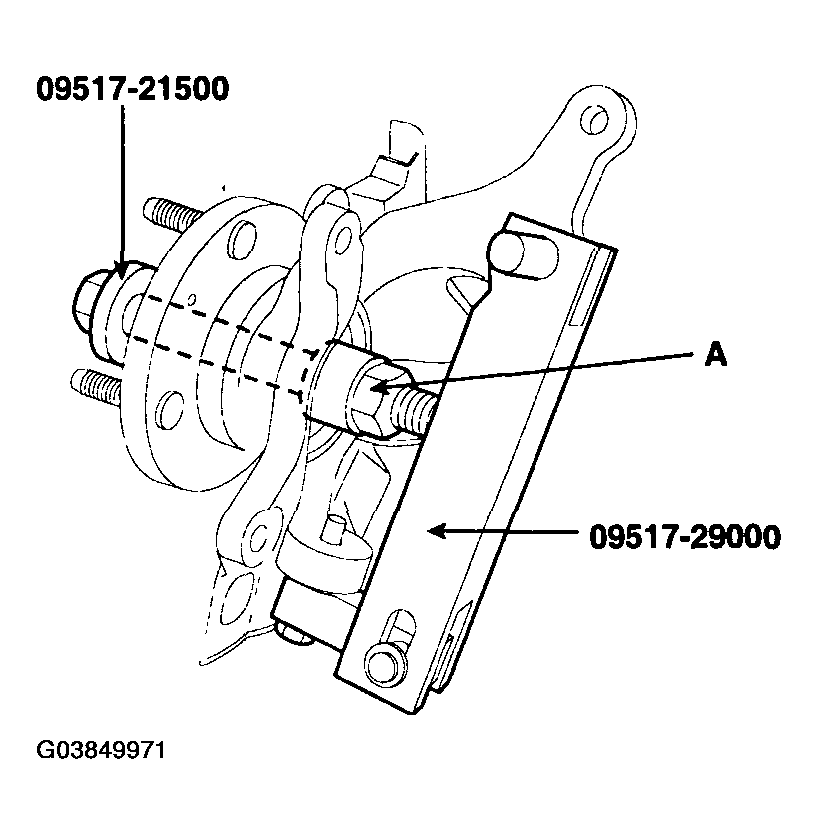

    Fig 2: Installing Special Tools
    G03849971Courtesy of HYUNDAI MOTOR CO.
  4. Remove the hub from the knuckle by turning the special tool.
  5. Remove the special tool and dust cover.
  6. Remove the bearing inner race from the hub by using the special tool (09495-33000).

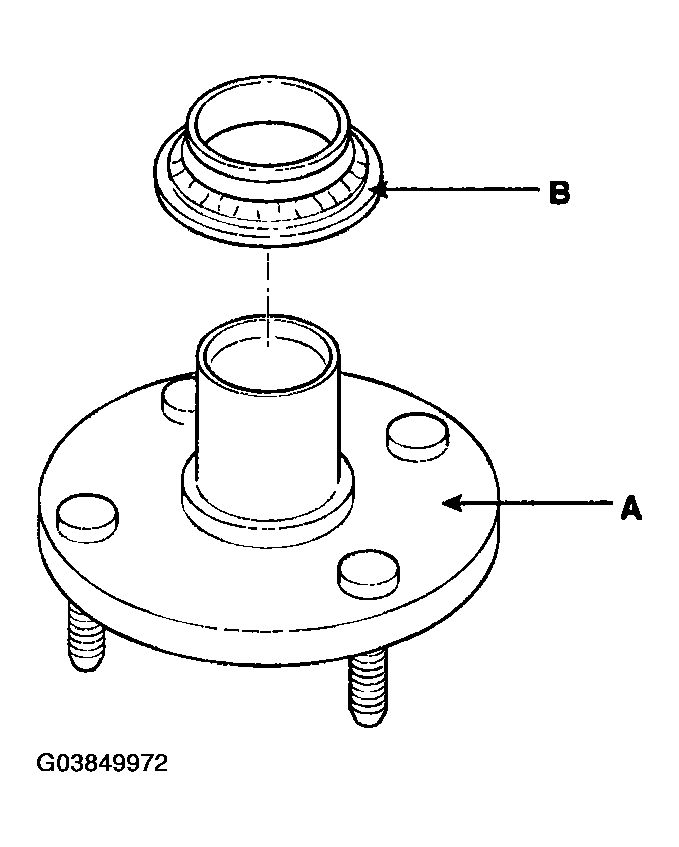

    Fig 3: Removing Bearing Inner Race From Hub Using Special Tool
    G03849972Courtesy of HYUNDAI MOTOR CO.
  7. Using the special tool (09495-33100, 09517-29000), remove the wheel bearing outer race from the knuckle.

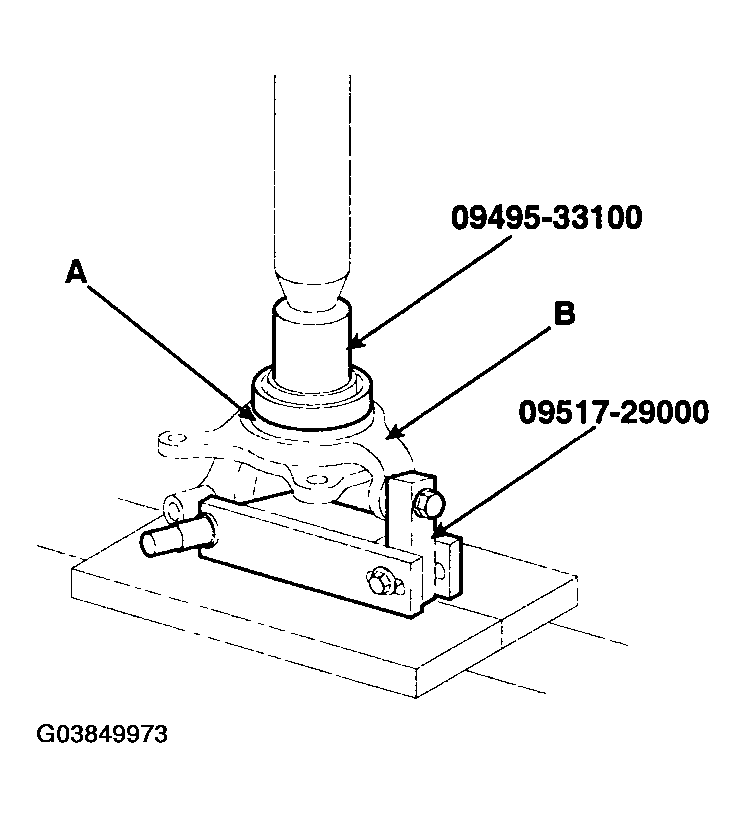

    Fig 4: Using Special Tool To Remove Wheel Bearing Outer Race From Knuckle
    G03849973Courtesy of HYUNDAI MOTOR CO.
