Home >> Hyundai >> 2006 >> Tiburon SE >> Repair and Diagnosis >> Suspension >> Front Suspension >> Front Axle >> Front Hub/Knuckle >> Components

Front Hub/Knuckle: Components

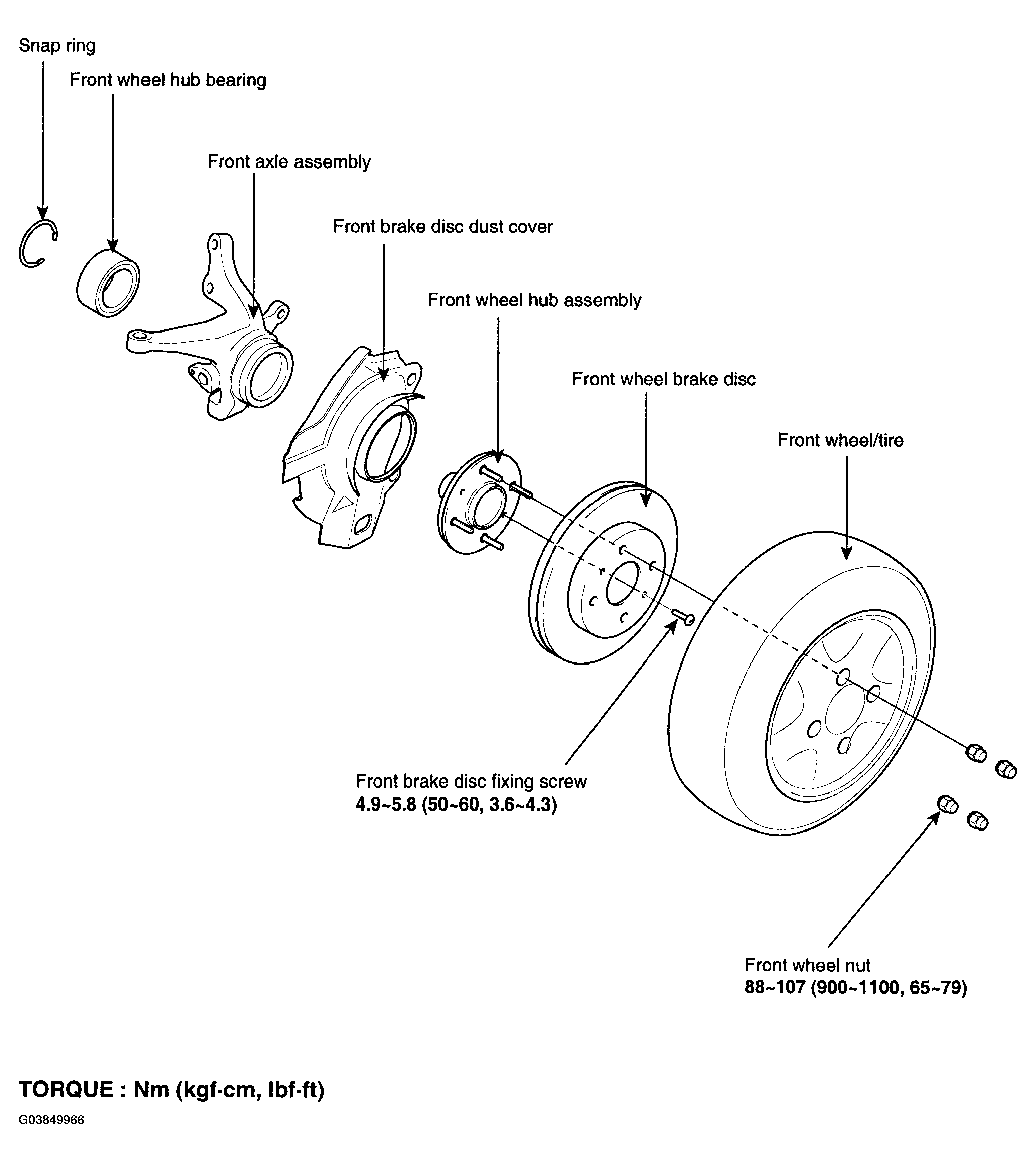

Fig 1: Front Hub/Knuckle Replacement Components With Torque Specifications

G03849966

Courtesy of HYUNDAI MOTOR CO.
