Sunroof Controller Connector End Views & Locations

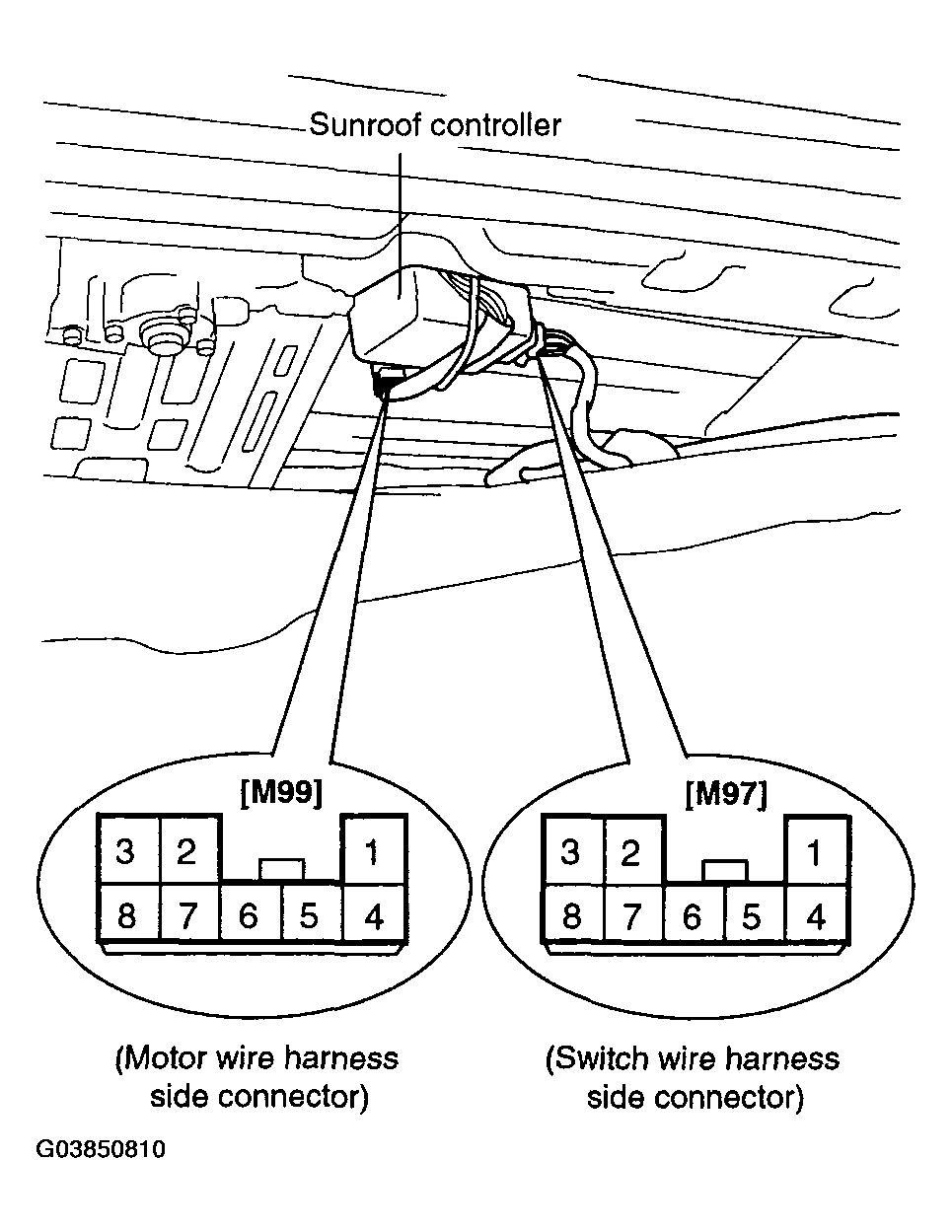

Fig 1: Sunroof Controller Connector End Views & Locations

G03850810

Courtesy of HYUNDAI MOTOR AMERICA
