A/C Triple Pressure Switch Connector End View

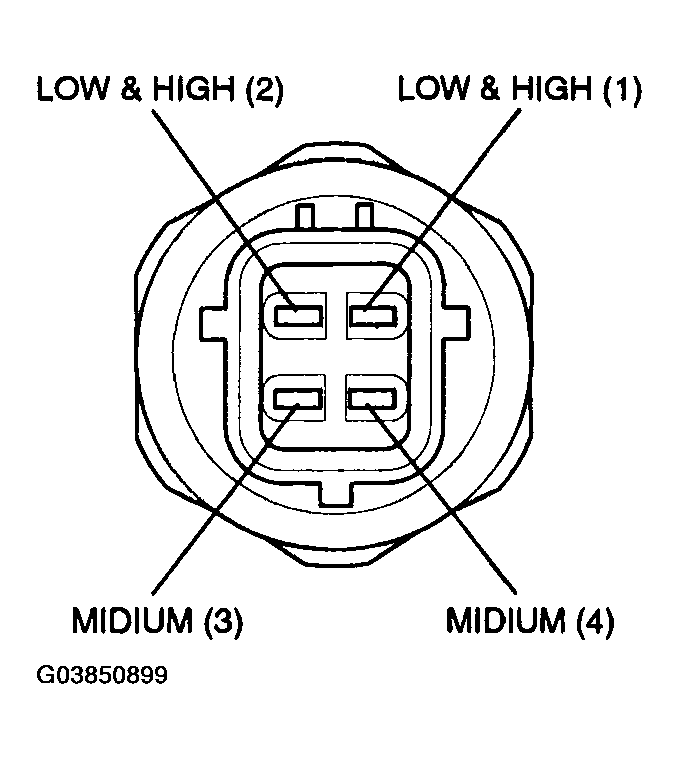

Fig 1: A/C Triple Pressure Switch Connector End View

G03850899

Courtesy of HYUNDAI MOTOR AMERICA
