Removal And Installation

Disconnect the negative battery terminal.
Disconnect the wire connectors from the front seats and then remove the front seats.

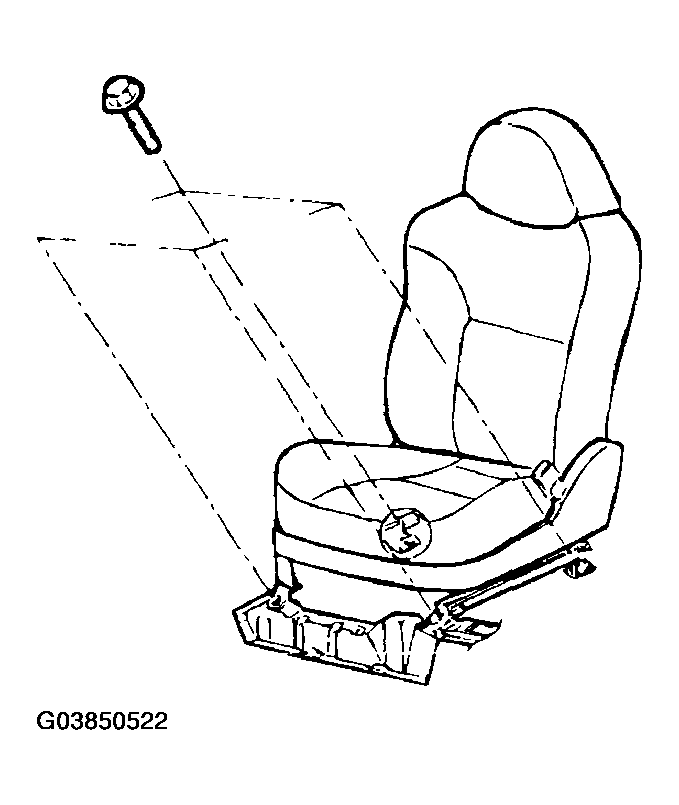

Fig 1: Removing Front Seats
Courtesy of HYUNDAI MOTOR CO.

CAUTION: Take care not to scratch the trim when removing the fronts seats.

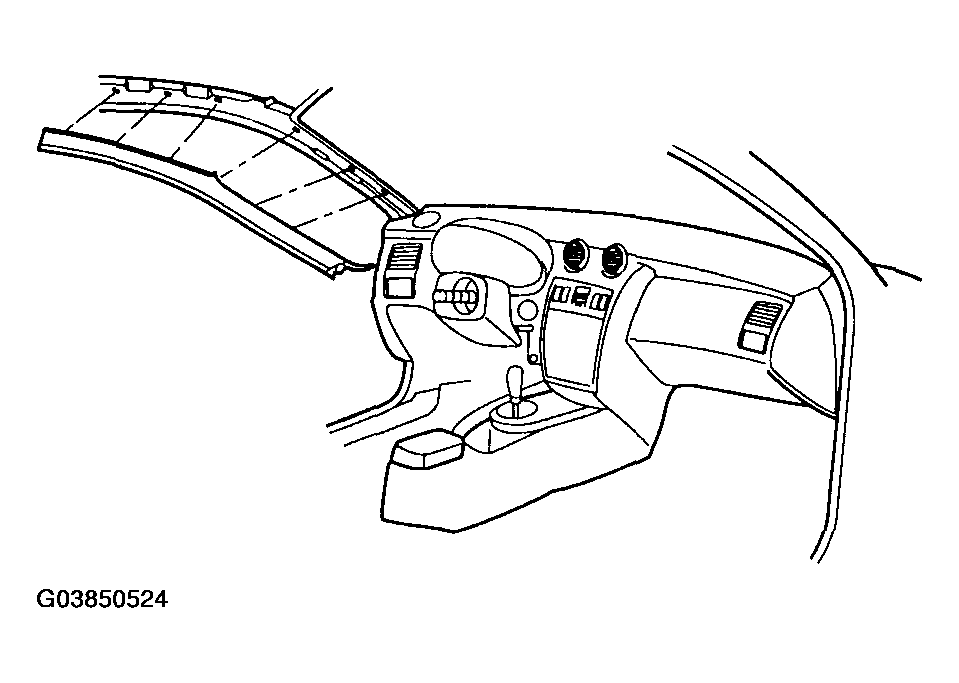

Remove the cowl side trim, front pillar.

Fig 2: Removing Cowl Side Trim
Courtesy of HYUNDAI MOTOR CO.

Fig 3: Removing Front Pillar
Courtesy of HYUNDAI MOTOR CO.

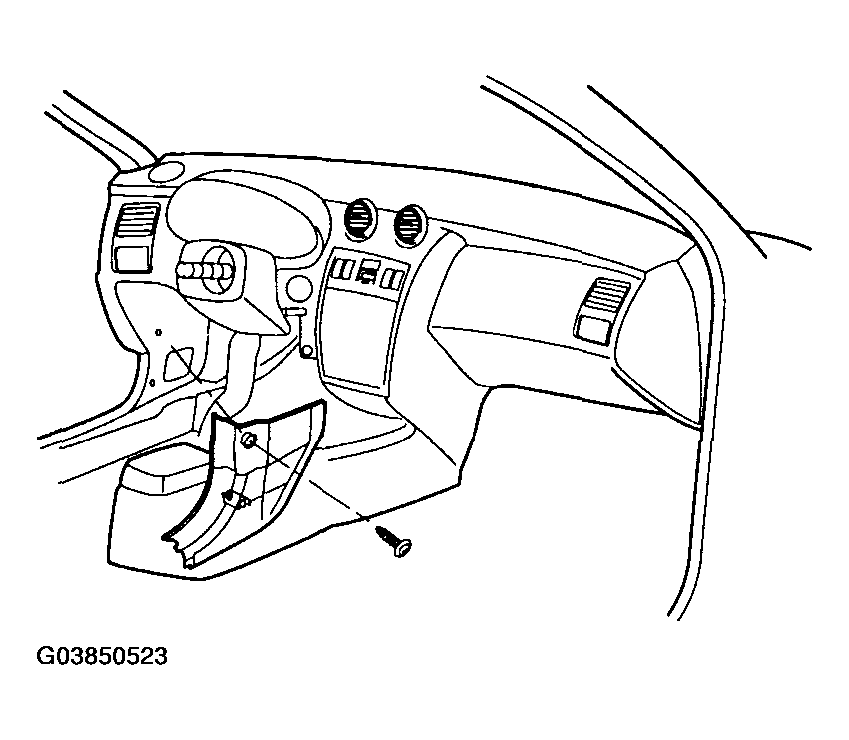

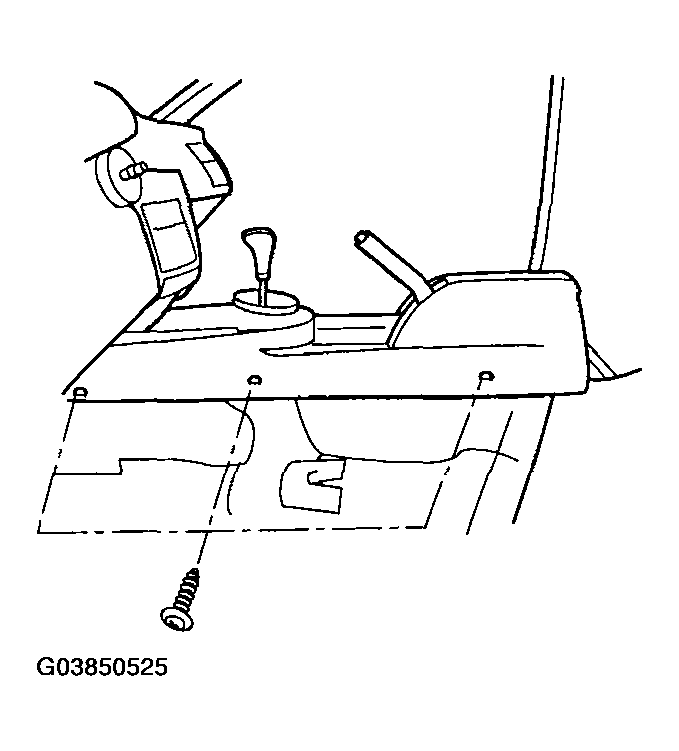

Remove the console assembly.

Fig 4: Removing Console Assembly
Courtesy of HYUNDAI MOTOR CO.
Remove the air bag module.

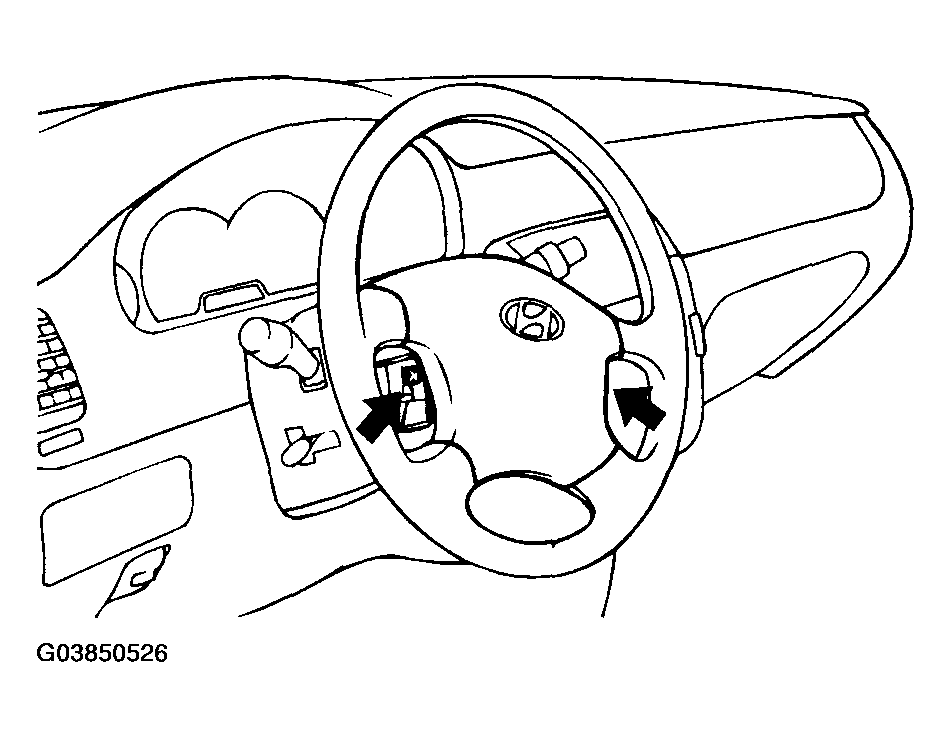

Fig 5: Removing Air Bag Module
Courtesy of HYUNDAI MOTOR CO.

CAUTION: For instructions on the removal of the air bag module and clock spring, refer to RESTRAINTS .

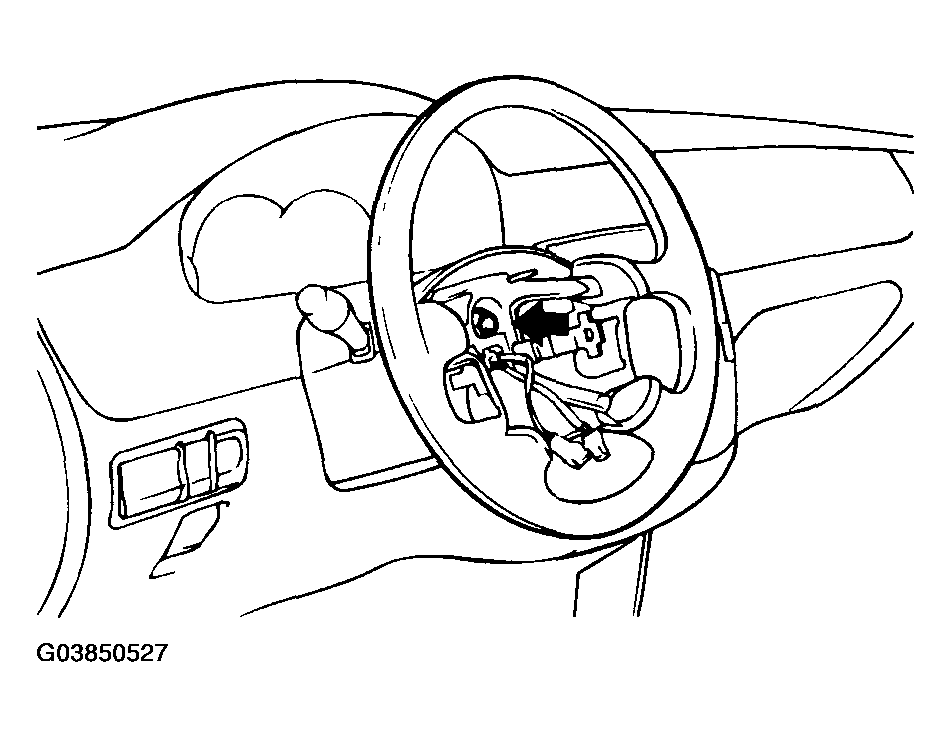

Remove the steering wheel mounting nut, and remove the steering wheel.

Fig 6: Locating Steering Wheel Mounting Nut
Courtesy of HYUNDAI MOTOR CO.

Tightening torque:

39.2~49.0 N.m (4.0~5.0 kgf.m, 28.9~36.2 lb.ft)
Remove the 3 screws holding the steering column lower shroud and then remove the steering column lower and upper shroud.

Fig 7: Removing 3 Screws Holding Steering Column Lower Shroud
Courtesy of HYUNDAI MOTOR CO.

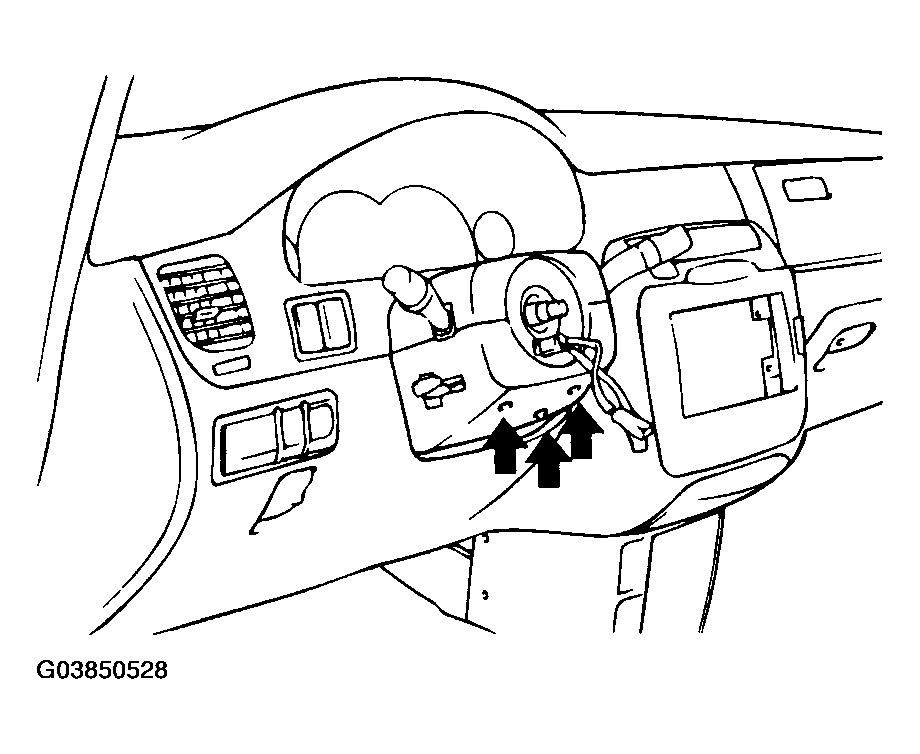

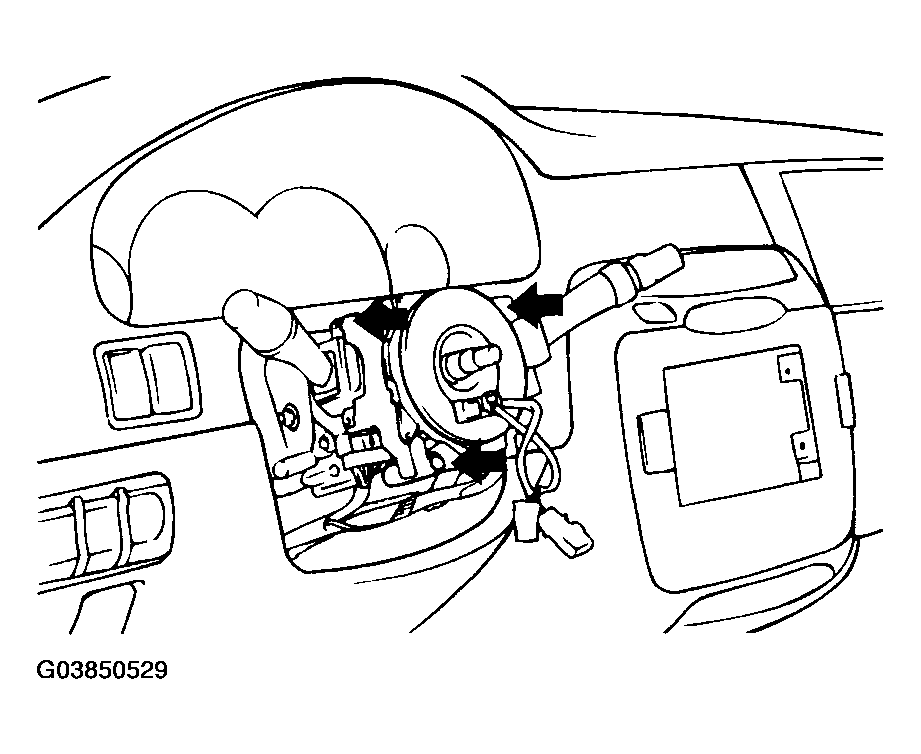

Disconnect the connectors and remove the multifunction switch (3 screws).

Fig 8: Removing Multifunction Switch Screws
Courtesy of HYUNDAI MOTOR CO.

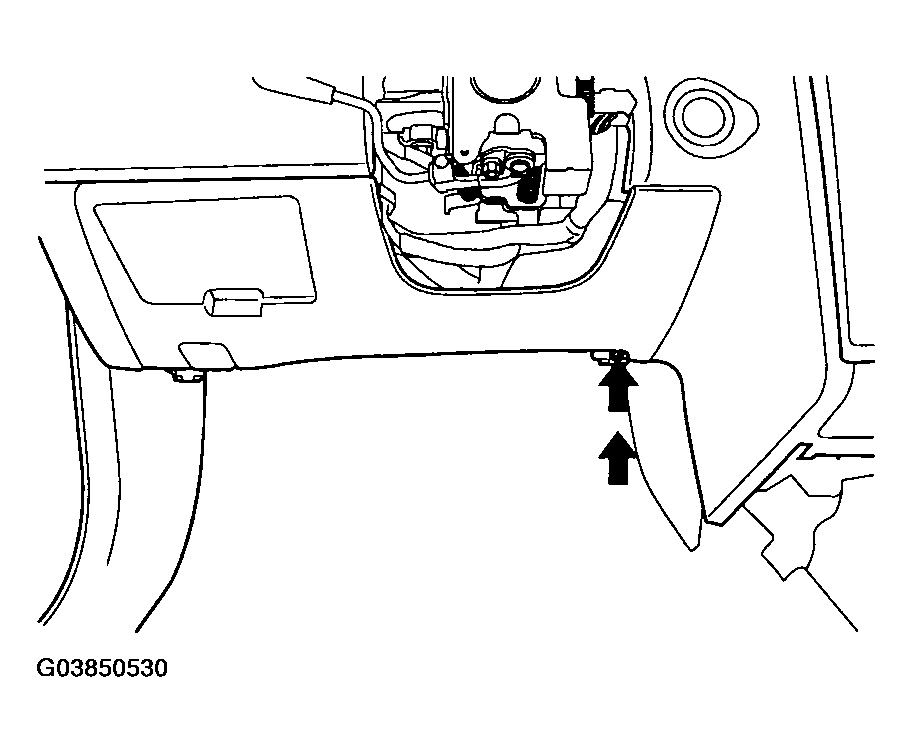

Disconnect the hood release cable and connectors from the cover. After removing the 2 screws, remove the crash pad under cover of the passenger compartment.

Fig 9: Removing Crash Pad Under Cover Of Passenger Compartment
Courtesy of HYUNDAI MOTOR CO.
After loosening the 2 screws, remove the cluster housing.

Fig 10: Loosening 2 Screws & Removing Cluster Housing
Courtesy of HYUNDAI MOTOR CO.

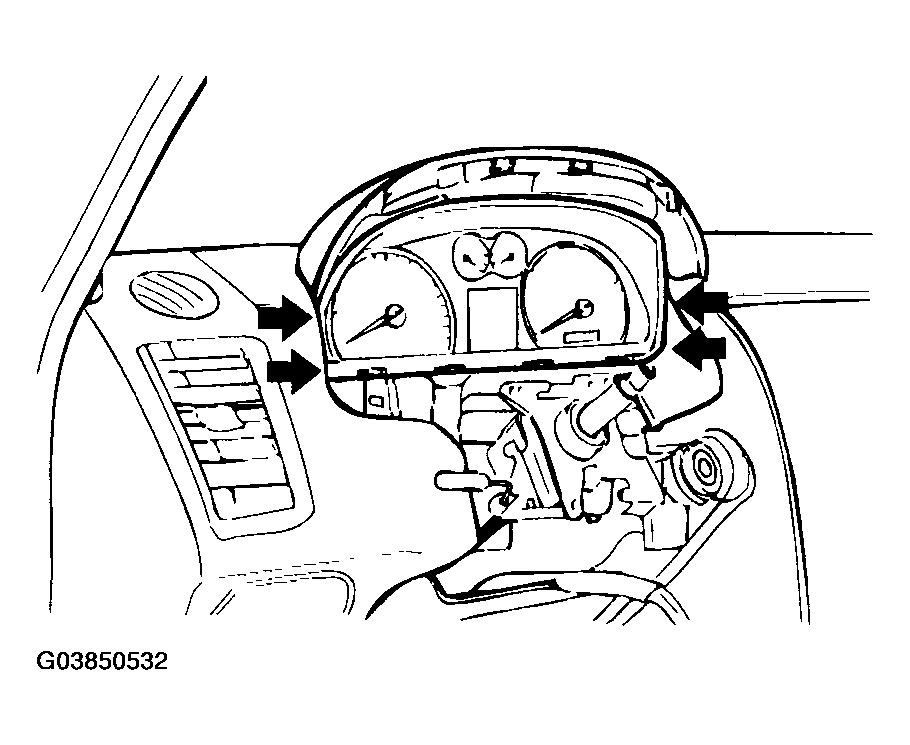

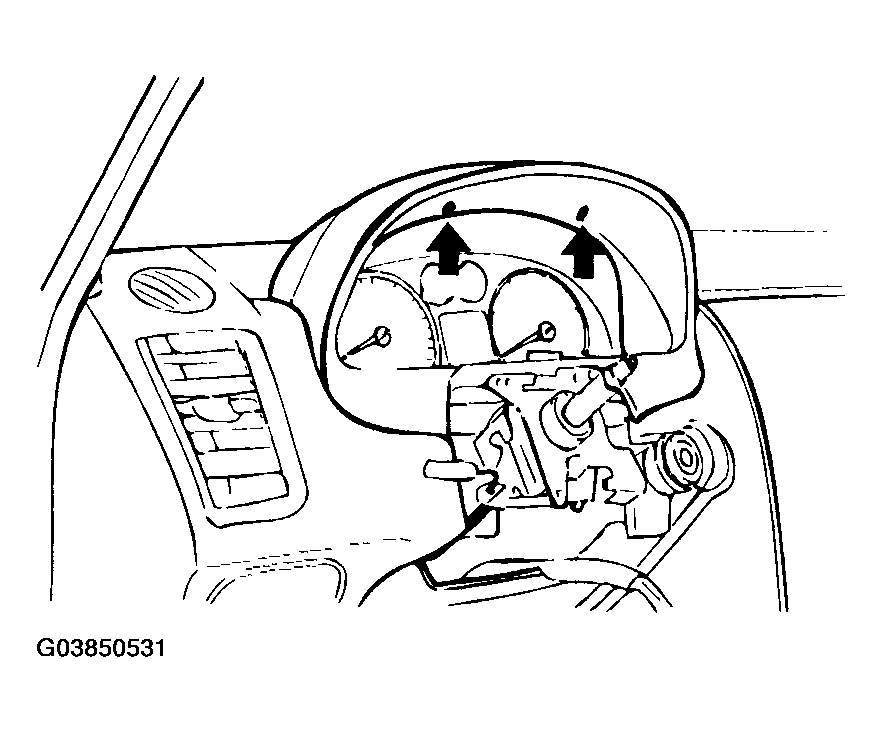

After loosening the 4 screws, remove the cluster.

Fig 11: Loosening 4 Screws & Removing Cluster
Courtesy of HYUNDAI MOTOR CO.

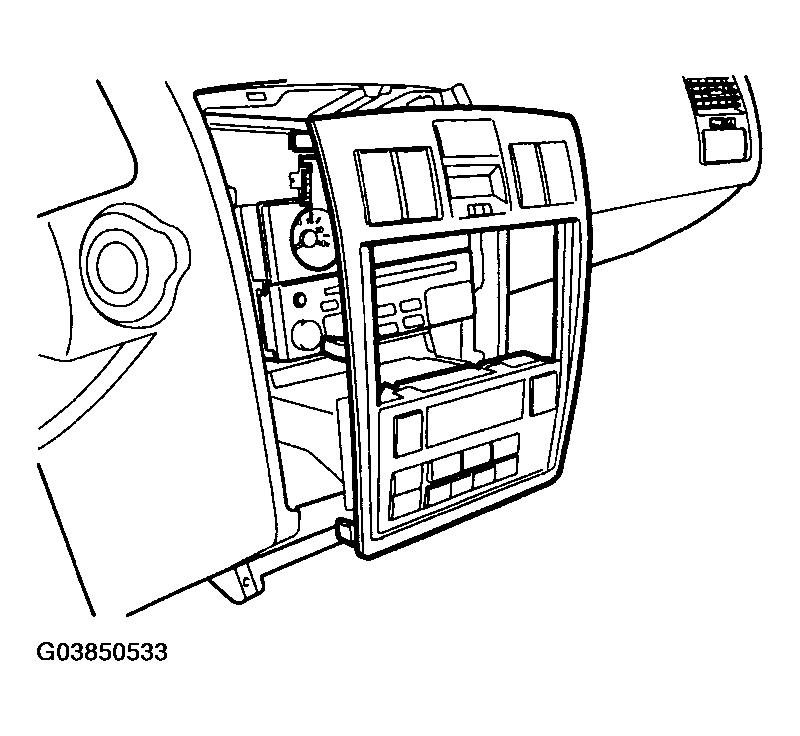

Open the ashtray. Insert a screw driver into the area between the center fascia panel lower portion and ashtray, and then pull out the center fascia panel lower portion. Lift up the center fascia panel with hand.

Fig 12: Pulling Out Center Fascia Panel Lower Portion
Courtesy of HYUNDAI MOTOR CO.
After disconnecting the switch connectors, remove the center fascia panel.

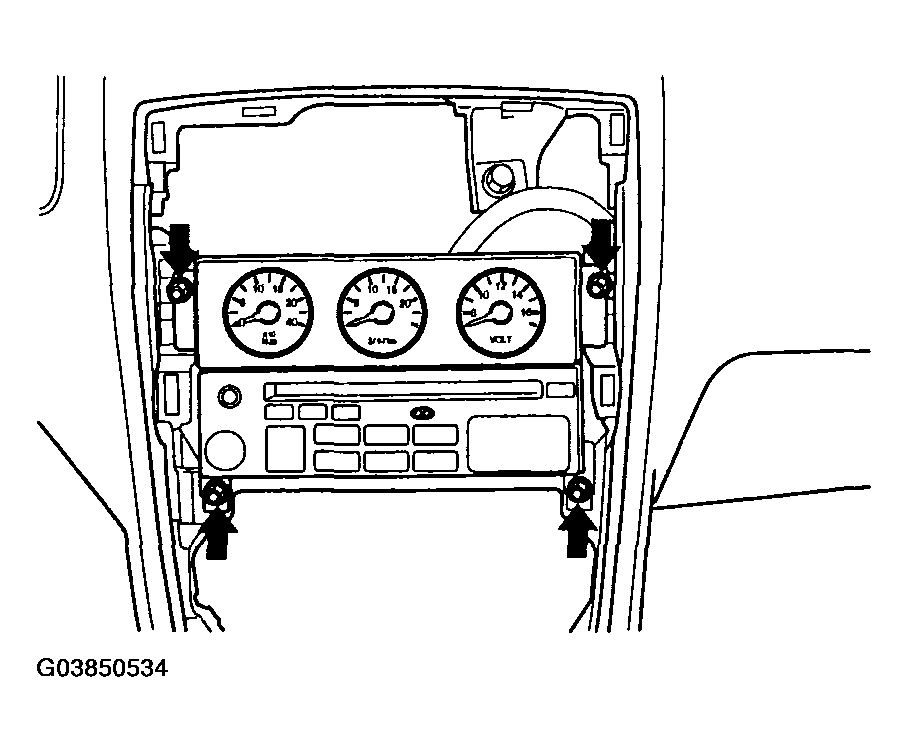

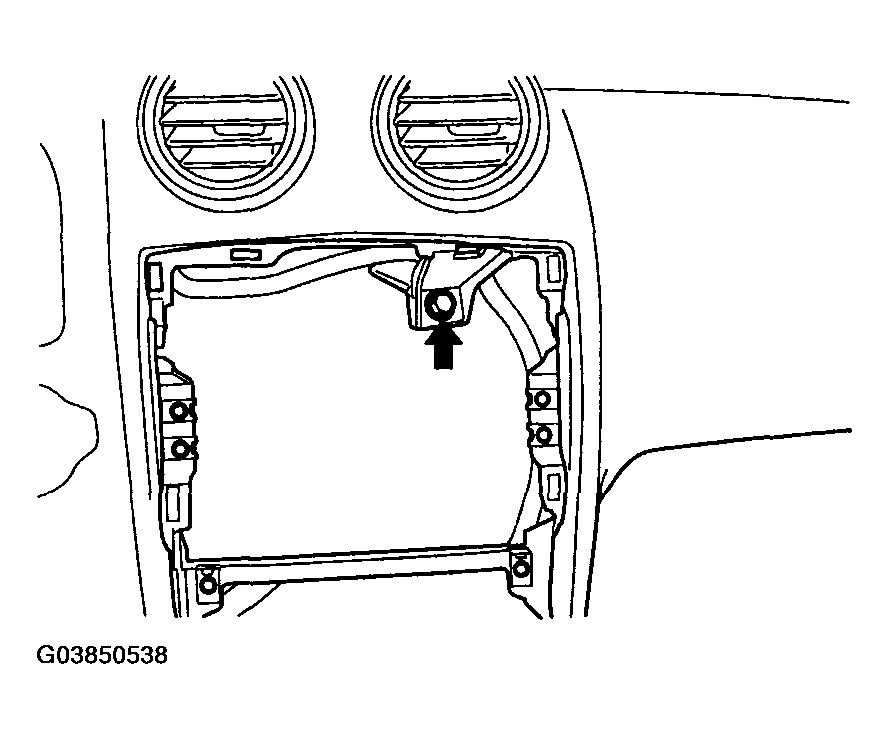

Remove the audio mounting screws and the gauge mounting screws to remove the audio assembly.

Fig 13: Removing Audio Mounting Screws & Gauge Mounting Screws To Remove Audio Assembly
Courtesy of HYUNDAI MOTOR CO.

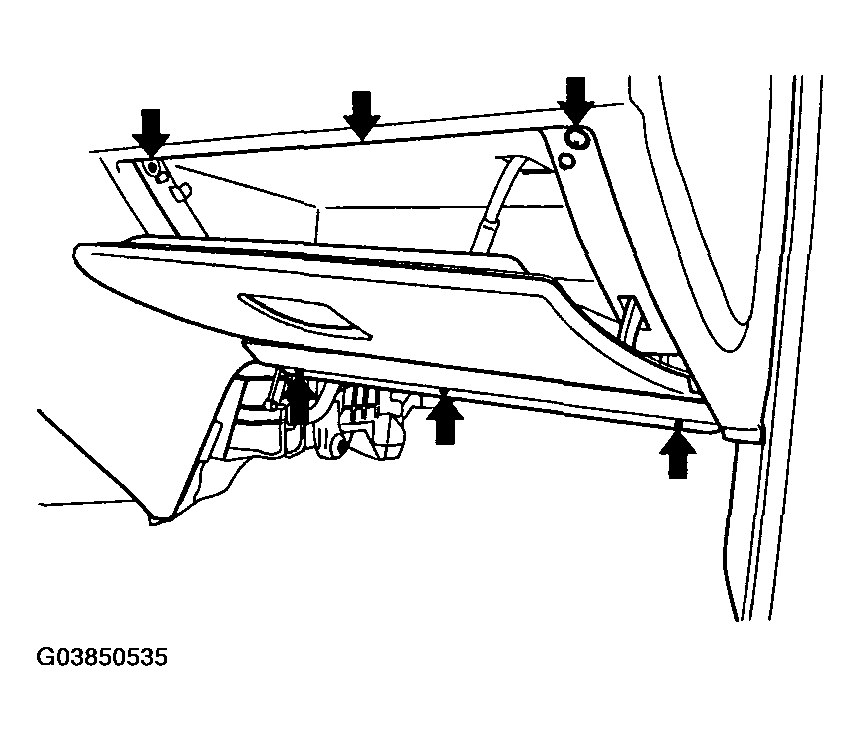

After loosening the 6 mounting screws shown in the illustration, remove the glove box.

Fig 14: Loosening 6 Mounting Screws & Removing Glove Box
Courtesy of HYUNDAI MOTOR CO.
Disconnect the glove box lamp connector and then remove the lamp.

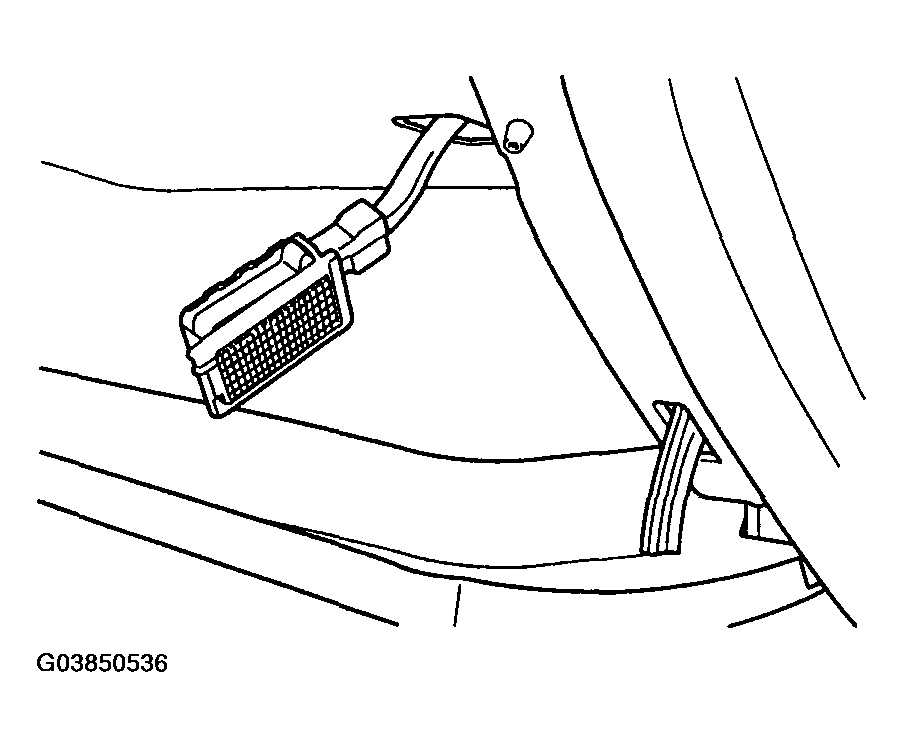

Fig 15: Removing Lamp
Courtesy of HYUNDAI MOTOR CO.

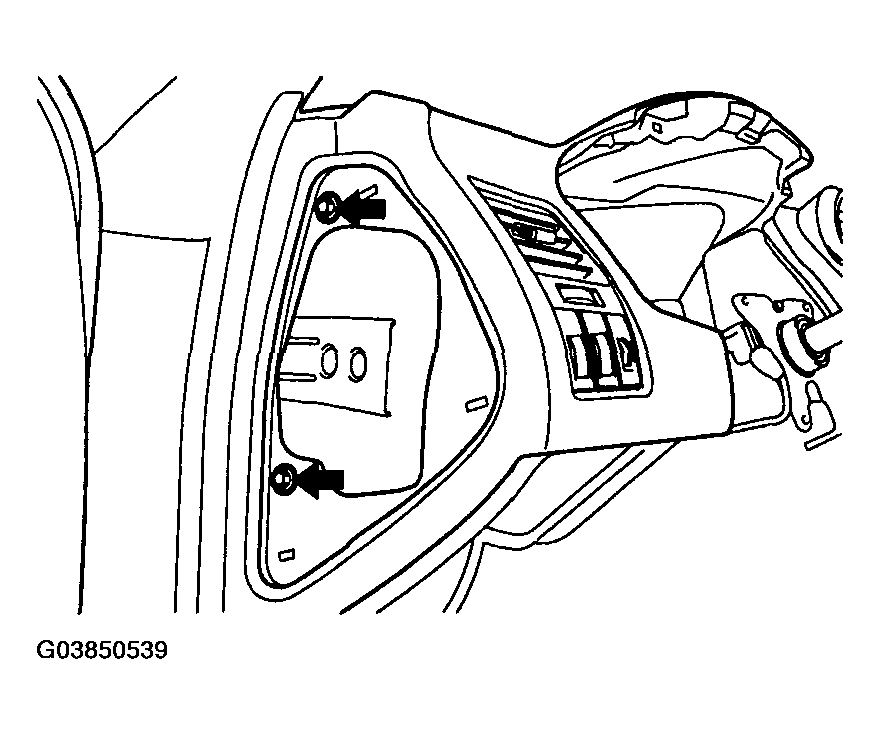

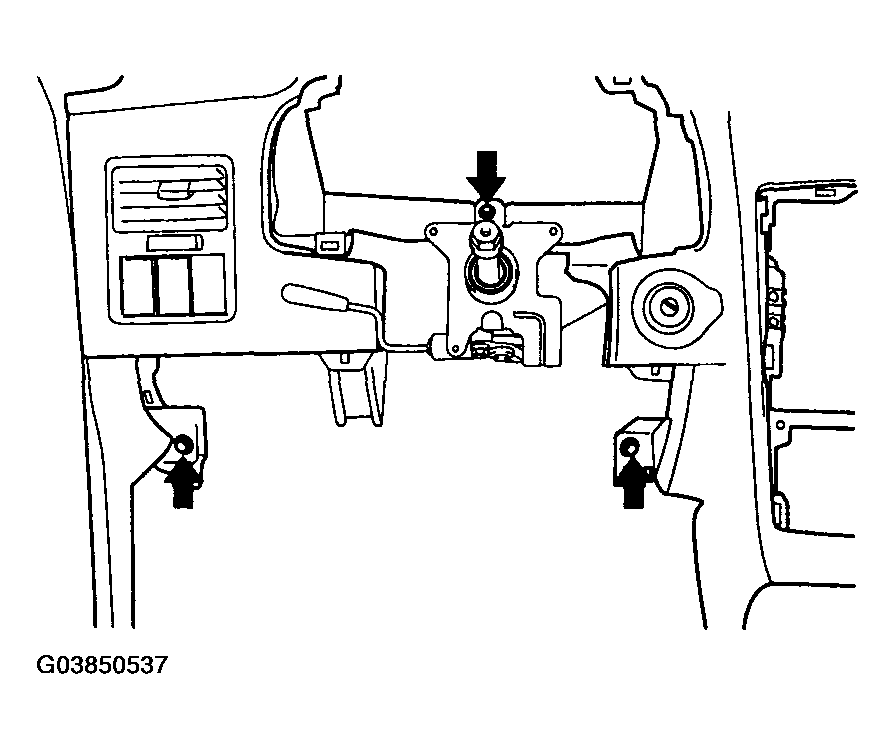

Remove the main crash pad mounting bolts.

Fig 16: Removing Main Crash Pad Mounting Bolts (1 Of 3)
Courtesy of HYUNDAI MOTOR CO.

Fig 17: Removing Main Crash Pad Mounting Bolts (2 Of 3)
Courtesy of HYUNDAI MOTOR CO.

Fig 18: Removing Main Crash Pad Mounting Bolts (3 Of 3)
Courtesy of HYUNDAI MOTOR CO.

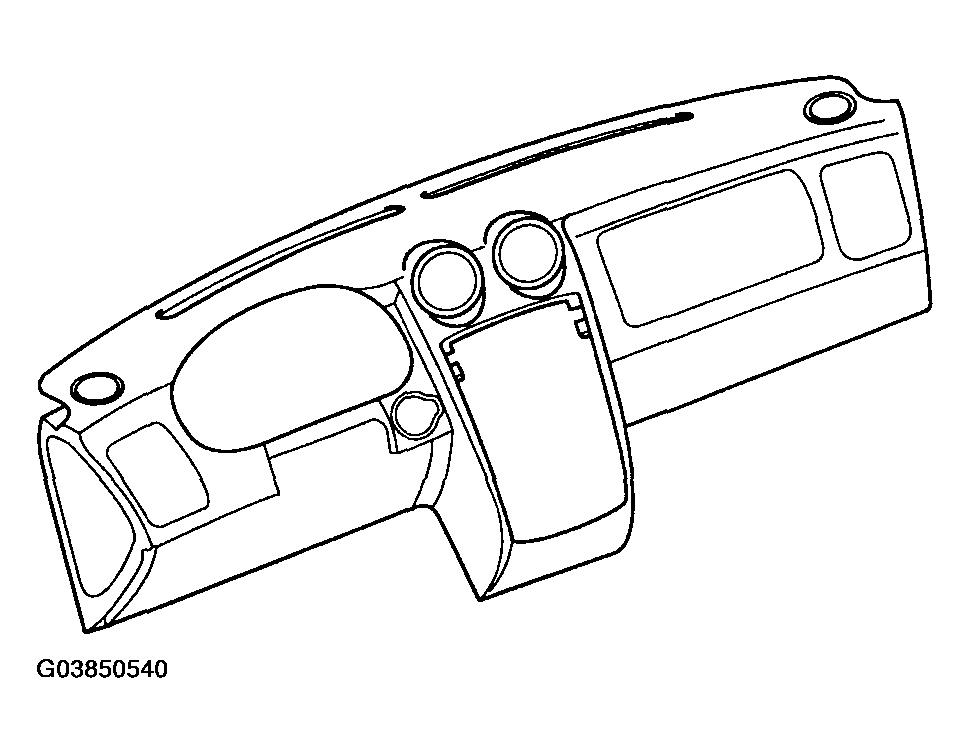

Remove the crash pad.

Fig 19: Removing Crash Pad
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal and connect all connectors securely.
