Auto Lighting Control System
>>
Circuit Diagram
Circuit Diagram

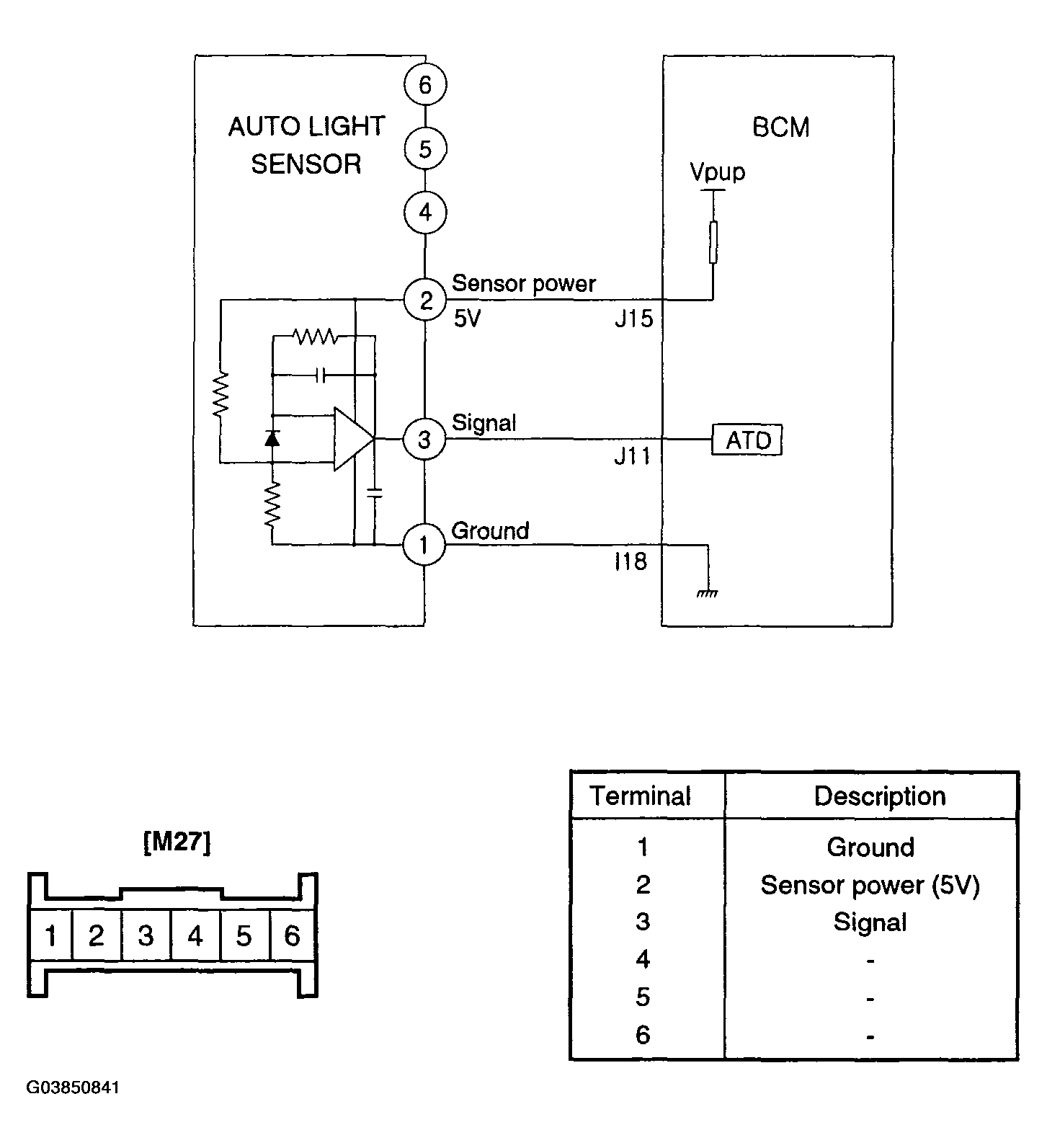

Fig 1: Auto Lighting Control System Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
