Auto Lighting Control System: Inspection

1. Detach the auto light sensor in the upper crash pad.

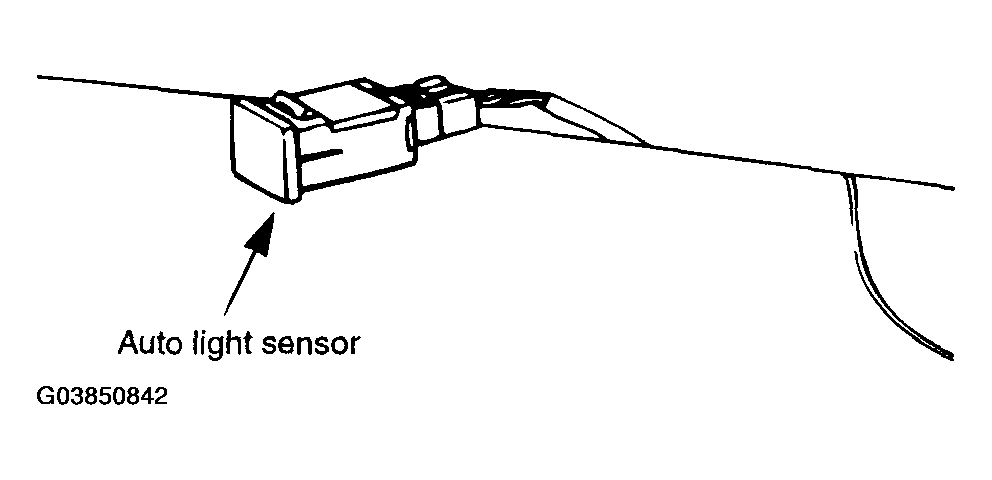

   Fig 1: Detaching Auto Light Sensor In Upper Crash Pad

   Courtesy of HYUNDAI MOTOR CO.
2. Check the continuity between terminal 2(+) and terminal 1(-).

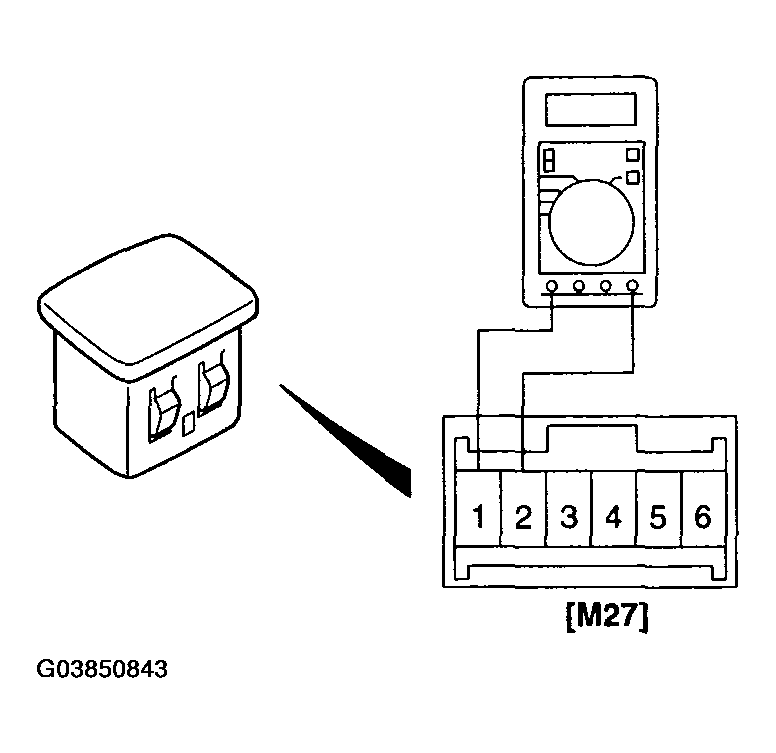

   Fig 2: Checking Continuity Between Terminal 2(+) And Terminal 1(-) Of Auto Light Sensor

   Courtesy of HYUNDAI MOTOR CO.
3. Check the continuity between the terminals while operating the switch.

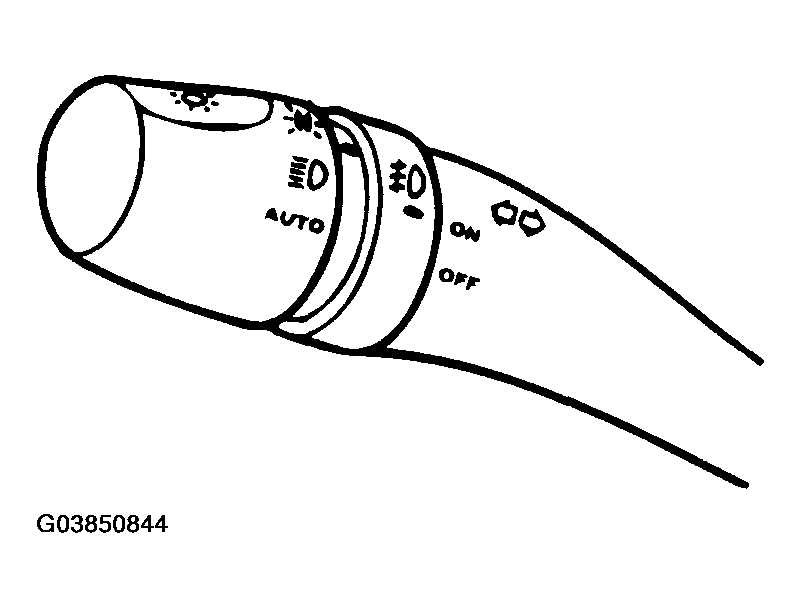

   Fig 3: Identifying Auto Light Switch

   Courtesy of HYUNDAI MOTOR CO.

AUTO LIGHT SWITCH [M01-2]

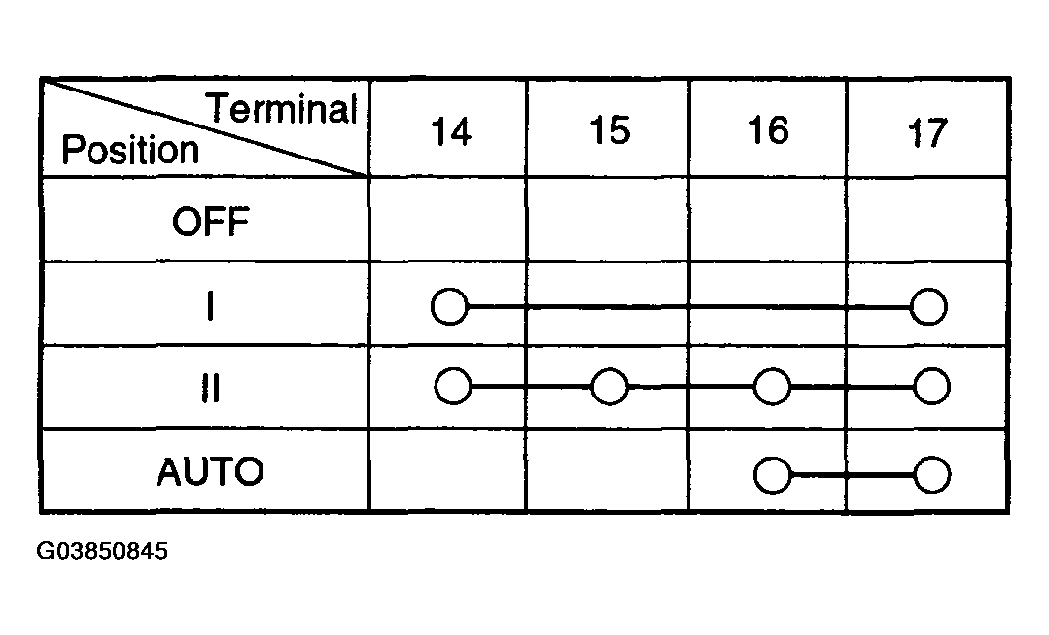

Fig 4: Auto Light Switch [M01-2] Continuity Chart

Courtesy of HYUNDAI MOTOR CO.
