Electrical Component Locator
>>
Component Location Graphics
Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.
Fig 1: Left Side Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 2: Front Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 3: Right Front Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 4: Left Front Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 5: Left Side Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 6: Right Front Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 7: Right Front Corner Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 8: Right Front Corner Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 9: Top Of Engine (2.4L)
Courtesy of HYUNDAI MOTOR CO.
Fig 10: Top Of Engine (2.4L)
Courtesy of HYUNDAI MOTOR CO.
Fig 11: Left Front Of Engine (2.4L)
Courtesy of HYUNDAI MOTOR CO.
Fig 12: Front Of Engines
Courtesy of HYUNDAI MOTOR CO.
Fig 13: Top Of Engine (2.4L)
Courtesy of HYUNDAI MOTOR CO.
Fig 14: Top Rear Of Engine (2.4L)
Courtesy of HYUNDAI MOTOR CO.
Fig 15: Top Of Transaxle
Courtesy of HYUNDAI MOTOR CO.
Fig 16: Top Of Transaxle
Courtesy of HYUNDAI MOTOR CO.
Fig 17: Top Of Transaxle
Courtesy of HYUNDAI MOTOR CO.

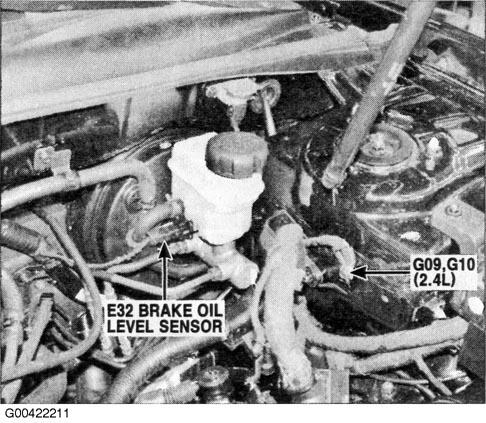

Fig 18: Left Rear Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 19: Left Rear Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 20: Rear Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 21: Top Rear Of Engine (3.3L)
Courtesy of HYUNDAI MOTOR CO.
Fig 22: Top Rear Of Engine (3.3L)
Courtesy of HYUNDAI MOTOR CO.
Fig 23: Rear Center Of Engine (3.3L)
Courtesy of HYUNDAI MOTOR CO.
Fig 24: Left Rear Of Engine Compartment (3.3L)
Courtesy of HYUNDAI MOTOR CO.
Fig 25: Left Kick Panel
Courtesy of HYUNDAI MOTOR CO.
Fig 26: Under Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 27: Steering Column
Courtesy of HYUNDAI MOTOR CO.
Fig 28: Behind Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 29: Behind Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 30: Behind Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 31: Under Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 32: Under Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 33: Under Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 34: Under Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 35: Behind Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 36: Right Side Of Dash
Courtesy of HYUNDAI MOTOR CO.

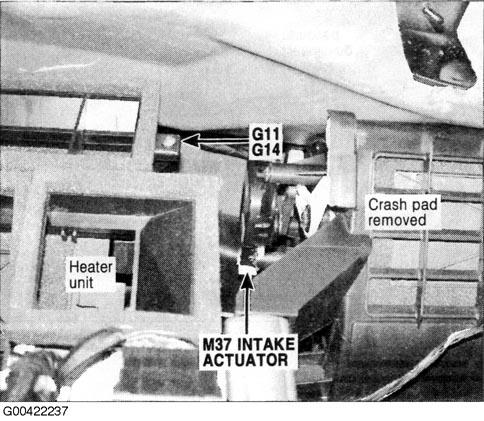

Fig 37: Behind Right Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 38: Behind Lower Center Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 39: Under Front Of Center Console
Courtesy of HYUNDAI MOTOR CO.
Fig 40: Under Front Of Center Console
Courtesy of HYUNDAI MOTOR CO.
Fig 41: Right Front Side Of Center Console
Courtesy of HYUNDAI MOTOR CO.
Fig 42: Under Center Console
Courtesy of HYUNDAI MOTOR CO.
Fig 43: Under Right Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 44: Under Right Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 45: Behind Right Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 46: Behind Glove Box
Courtesy of HYUNDAI MOTOR CO.
Fig 47: Under Right Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 48: Behind Right Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 49: Under Right Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 50: Right Kick Panel
Courtesy of HYUNDAI MOTOR CO.
Fig 51: Left Front Of Roof
Courtesy of HYUNDAI MOTOR CO.
Fig 52: Front Center Of Roof
Courtesy of HYUNDAI MOTOR CO.
Fig 53: Front Center Of Roof
Courtesy of HYUNDAI MOTOR CO.
Fig 54: Under Right Front Seat (Left Similar)
Courtesy of HYUNDAI MOTOR CO.
Fig 55: Under Front Seats
Courtesy of HYUNDAI MOTOR CO.
Fig 56: Under Front Seats
Courtesy of HYUNDAI MOTOR CO.
Fig 57: Rear Of Driver's Door
Courtesy of HYUNDAI MOTOR CO.
Fig 58: Driver's Door
Courtesy of HYUNDAI MOTOR CO.
Fig 59: Front Passenger's Door
Courtesy of HYUNDAI MOTOR CO.
Fig 60: Rear Of Front Passenger's Door
Courtesy of HYUNDAI MOTOR CO.
Fig 61: Right "B" Pillar (Left Similar)
Courtesy of HYUNDAI MOTOR CO.
Fig 62: Left Rear Door (Right Similar)
Courtesy of HYUNDAI MOTOR CO.
Fig 63: Behind Left Quarterpanel (Right Similar)
Courtesy of HYUNDAI MOTOR CO.
Fig 64: Right "C" Pillar (Left Similar)
Courtesy of HYUNDAI MOTOR CO.
Fig 65: Behind Rear Seats
Courtesy of HYUNDAI MOTOR CO.
Fig 66: Top Of Fuel Tank
Courtesy of HYUNDAI MOTOR CO.
Fig 67: Left Side Of Luggage Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 68: Left Side Of Luggage Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 69: Right Side Of Luggage Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 70: Left Underside Of Vehicle
Courtesy of HYUNDAI MOTOR CO.
Fig 71: Left Rear Corner Of Luggage Compartment
Courtesy of HYUNDAI MOTOR CO.

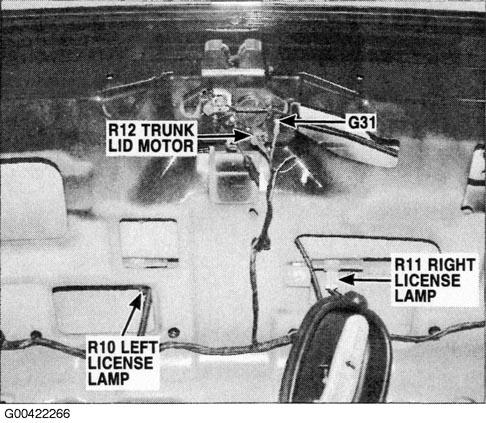

Fig 72: Center Rear Of Luggage Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 73: Engine Compartment Junction Block
Courtesy of HYUNDAI MOTOR CO.
Fig 74: Passenger Compartment Junction Block
Courtesy of HYUNDAI MOTOR CO.
Fig 75: Passenger Compartment Relay Box (ICM Box)
Courtesy of HYUNDAI MOTOR CO.
Fig 76: Right Rear Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 77: Left Rear Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.

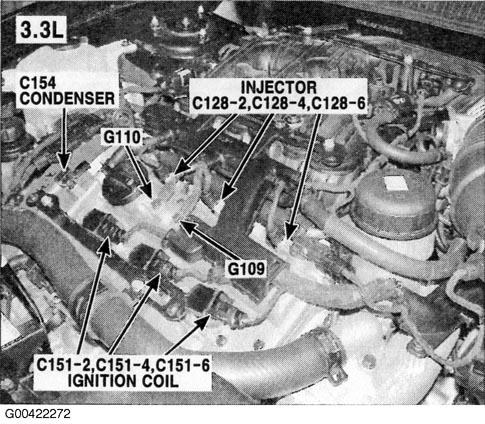

Fig 78: Top Of Engine (3.3L)
Courtesy of HYUNDAI MOTOR CO.
Fig 79: Top Of Engine (3.3L)
Courtesy of HYUNDAI MOTOR CO.
Fig 80: Left Front Of Engine (3.3L)
Courtesy of HYUNDAI MOTOR CO.
Fig 81: Front Of Engine (3.3L)
Courtesy of HYUNDAI MOTOR CO.
Fig 82: Front Of Engine (3.3L)
Courtesy of HYUNDAI MOTOR CO.
Fig 83: Rear Of Engine Compartment (3.3L)
Courtesy of HYUNDAI MOTOR CO.
Fig 84: Right Rear Of Engine Compartment (3.3L)
Courtesy of HYUNDAI MOTOR CO.
Fig 85: Left Rear Of Engine (3.3L)
Courtesy of HYUNDAI MOTOR CO.
Fig 86: Top Rear Of Engine (3.3L)
Courtesy of HYUNDAI MOTOR CO.
Fig 87: Top Rear Of Engine (3.3L)
Courtesy of HYUNDAI MOTOR CO.
