Cluster Replacement

  1. Remove the cluster facia panel (See CLUSTER FACIA PANEL REPLACEMENT ).
  2. Loosen the screws.

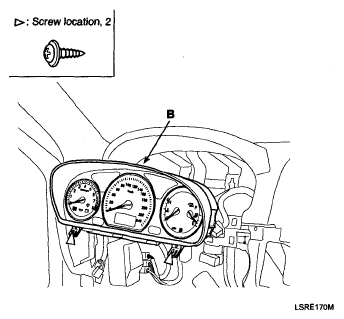

    Fig 1: Identifying Cluster Facia Panel With Mounting Screw Location
    G04892881Courtesy of HYUNDAI MOTOR CO.
  3. Disconnect the cluster connector (A), then remove the cluster (B).
    Fig 2: Identifying Cluster Connector
    G04892882Courtesy of HYUNDAI MOTOR CO.
  4. Installation is the reverse of removal.
    NOTE:
    • Make sure the connector is plugged in properly.
