Home >> Hyundai >> 2006 >> Sonata GL, 3.3 F >> Repair and Diagnosis >> Body & Frame >> Windows >> Interior >> Crash Pad >> Components

Crash Pad: Components

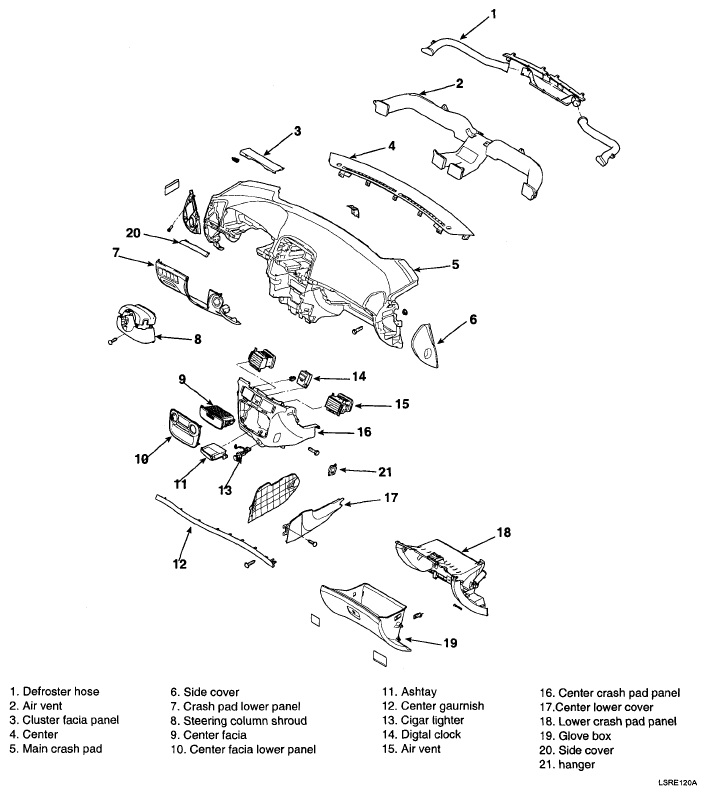

Fig 1: Exploded View Of Crash Pad Components

G04892870

Courtesy of HYUNDAI MOTOR CO.
