Home
>>
Hyundai
>>
2006
>>
Santa Fe Limited, FWD
>>
Repair and Diagnosis
>>
Transmission
>>
Transfer Case Assembly
>>
Transfer Case
>>
Section View
>>
Outside View
Outside View

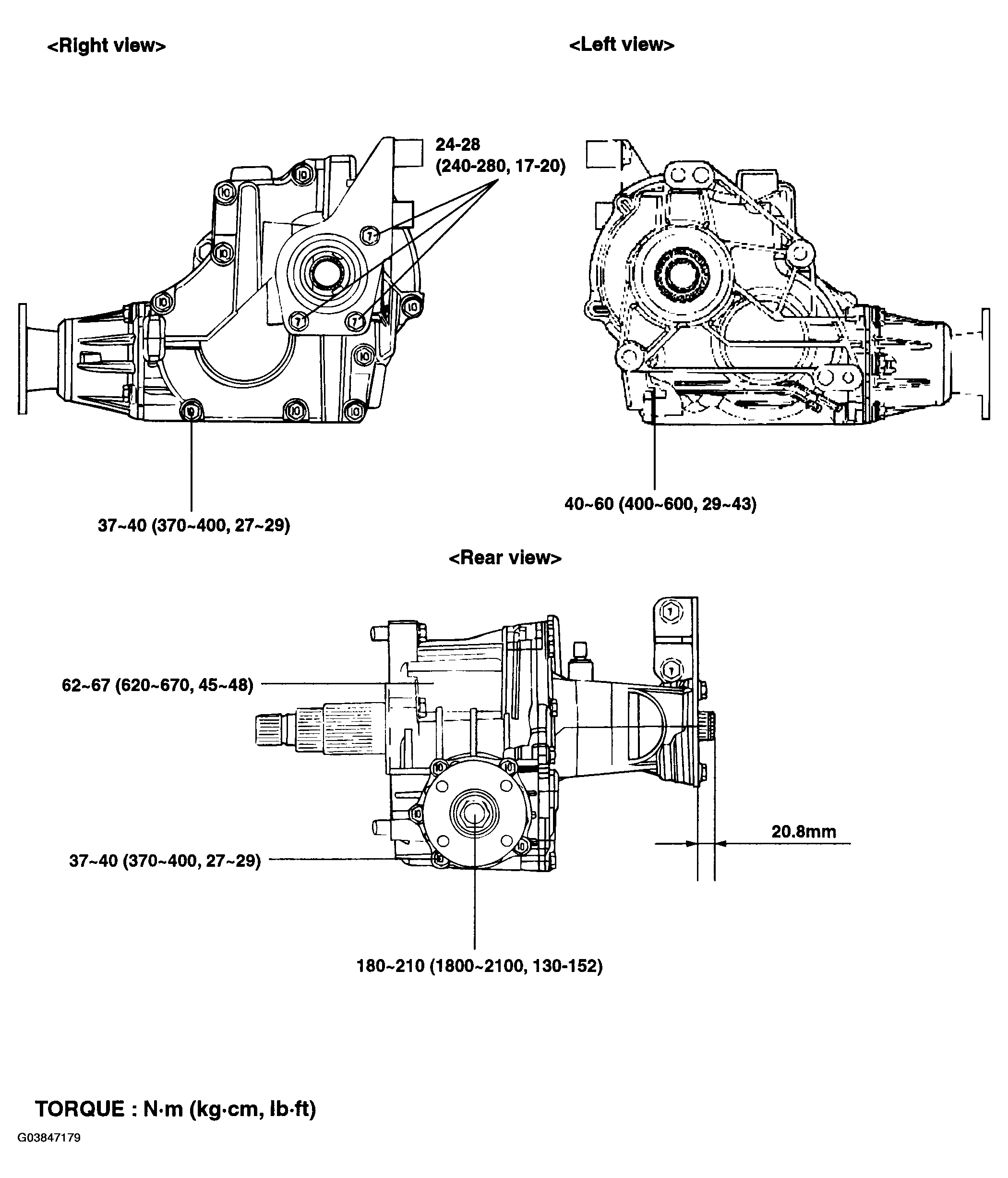

Fig 1: Transfer Case With Torque Specifications
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
