Home >> Hyundai >> 2006 >> Santa Fe Limited, FWD >> Repair and Diagnosis >> Transmission >> Transfer Case Assembly >> Transfer Case >> Section View >> Notes

Section View: Notes

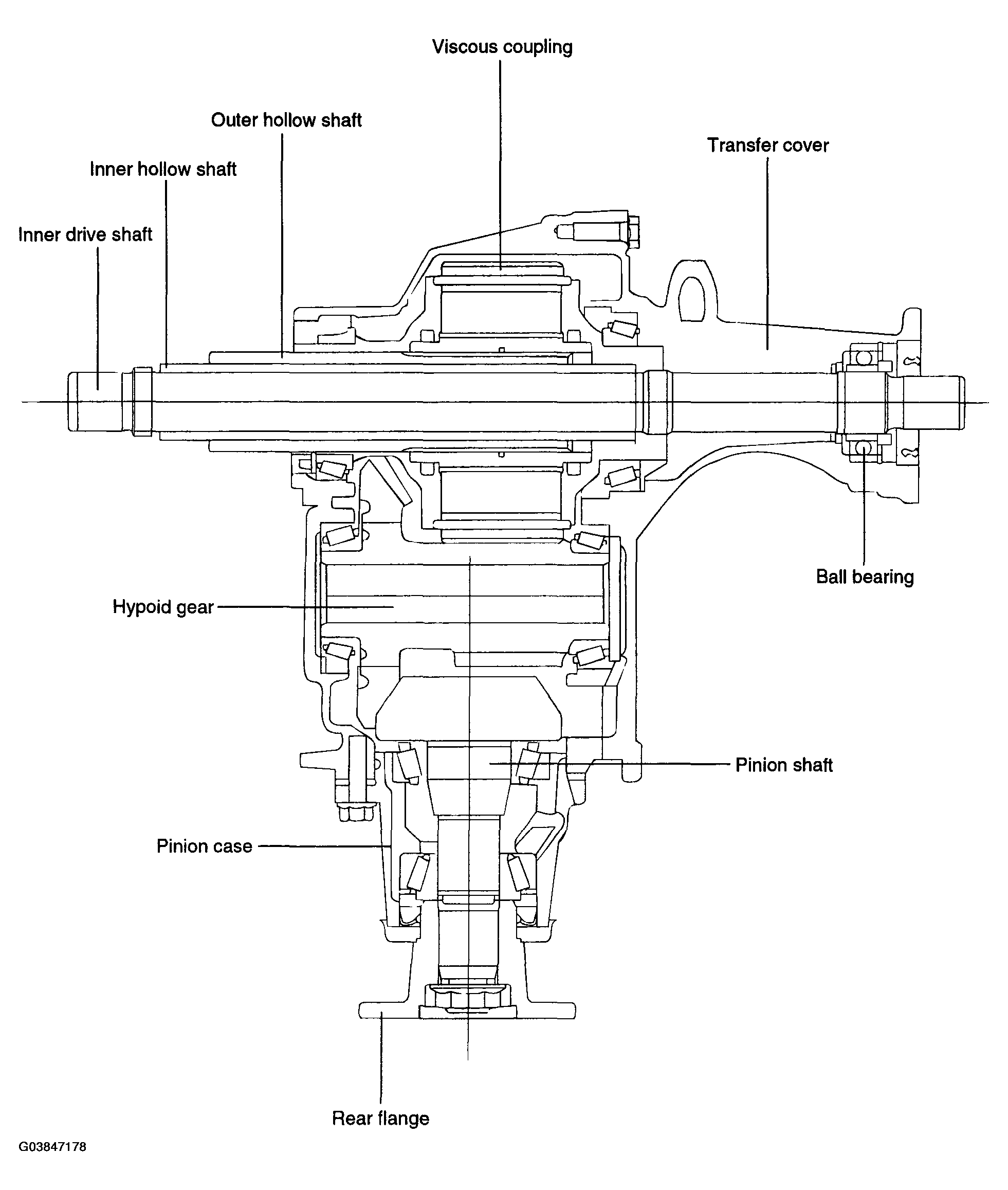

Fig 1: Section View Of Transfer Case Assembly

G03847178

Courtesy of HYUNDAI MOTOR CO.
