Coupling Assembly: Components

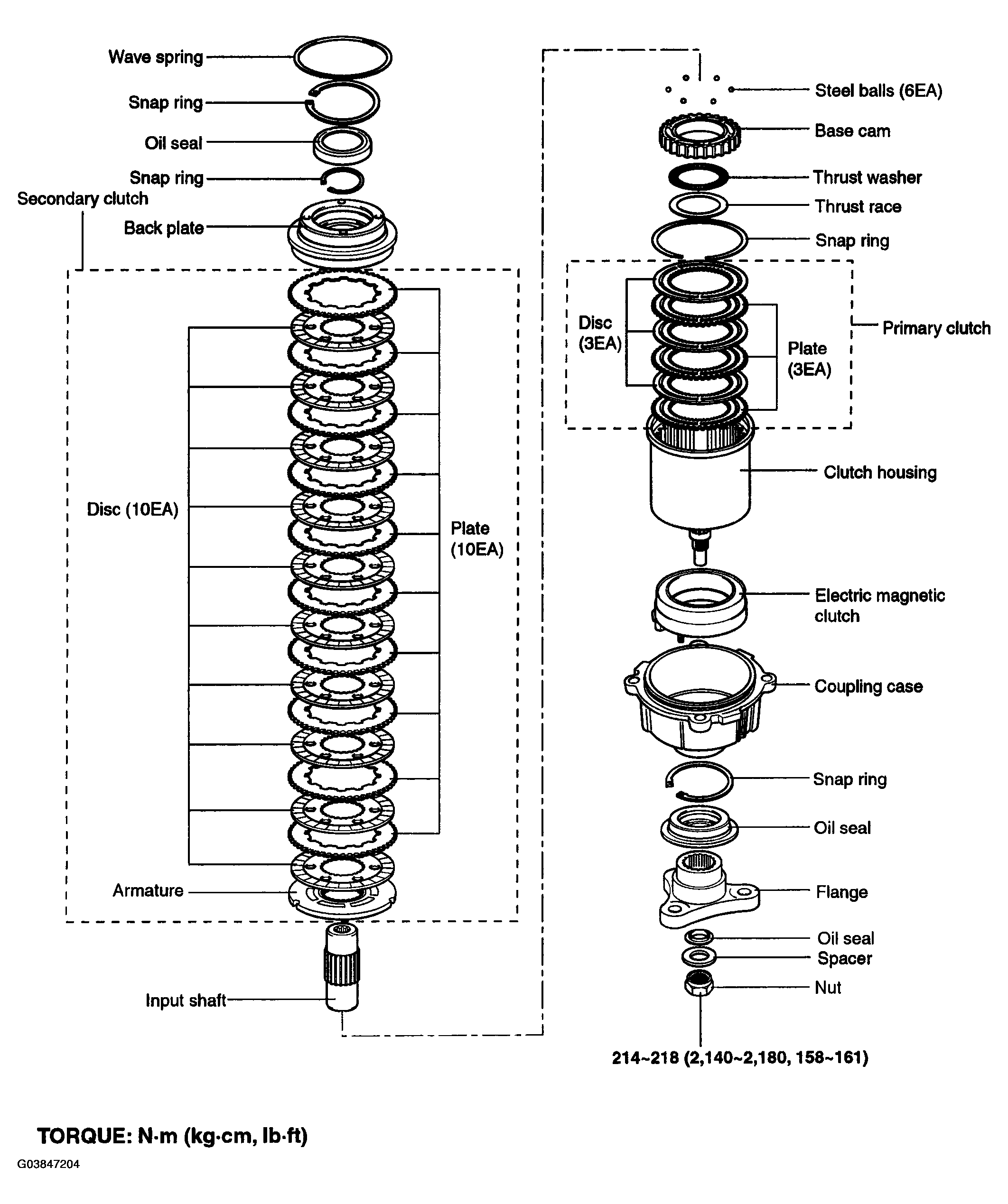

Fig 1: Exploded View Of Coupling Assembly And Torque Specifications

G03847204

Courtesy of HYUNDAI MOTOR CO.
