Troubleshooting (A/T): Notes

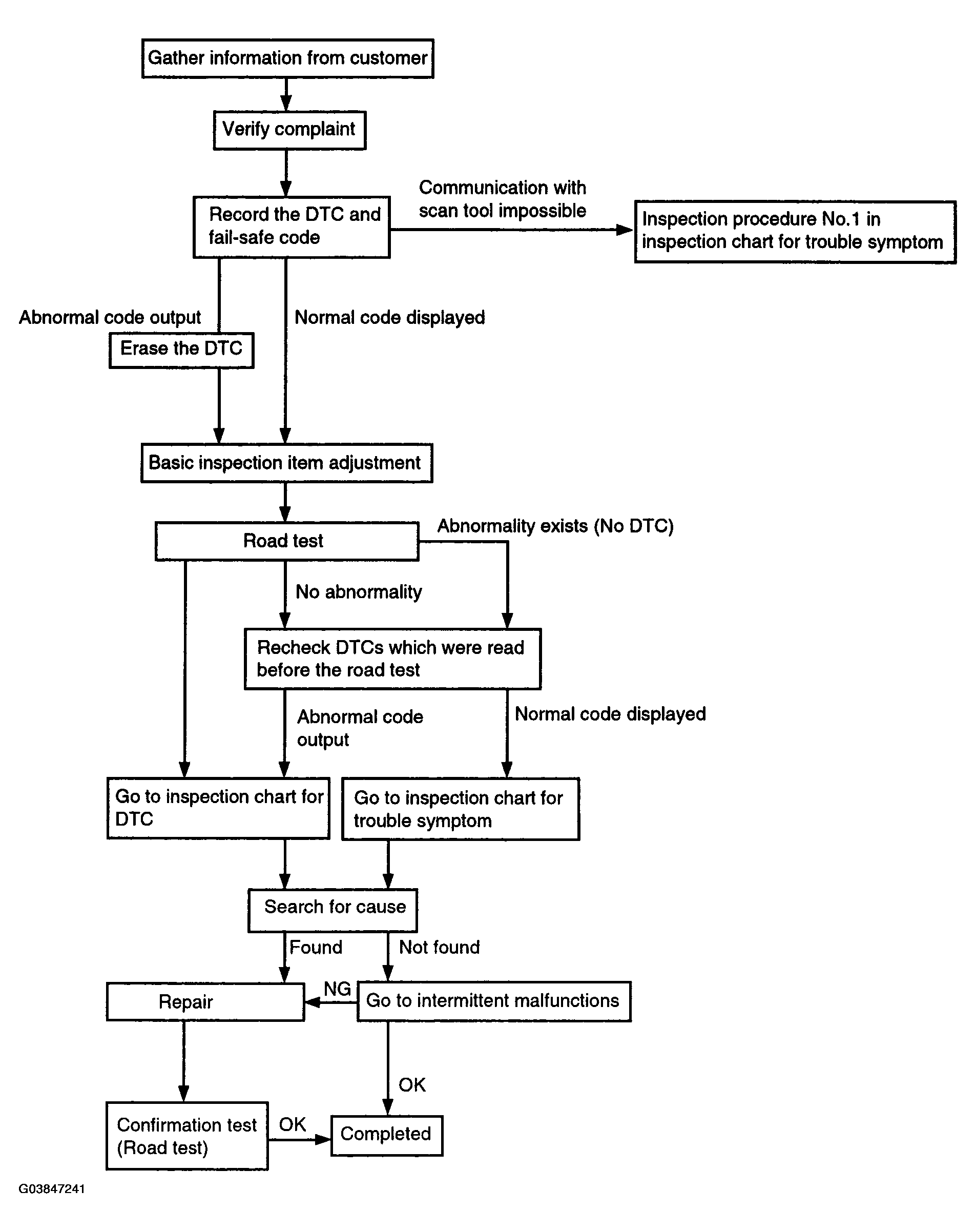

Fig 1: Automatic Transaxle System Troubleshooting Flow Chart

G03847241

Courtesy of HYUNDAI MOTOR CO.
