Hydraulic Pressure Test: Notes

Warm up the engine until the automatic transaxle fluid temperature is 80-100°C.
Jack up the vehicle so that the wheels are free to turn.
Connect the special tool (oil pressure gauge) to each pressure discharge port.

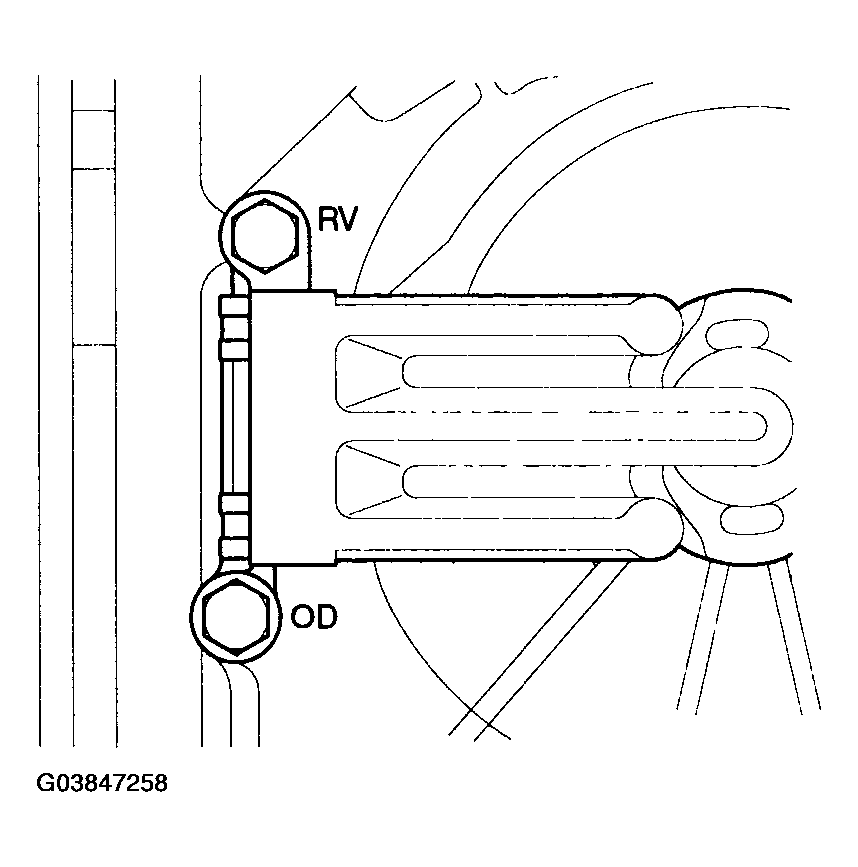

Fig 1: Attaching Special Tool To Automatic Transaxle (1 Of 4)
Courtesy of HYUNDAI MOTOR CO.

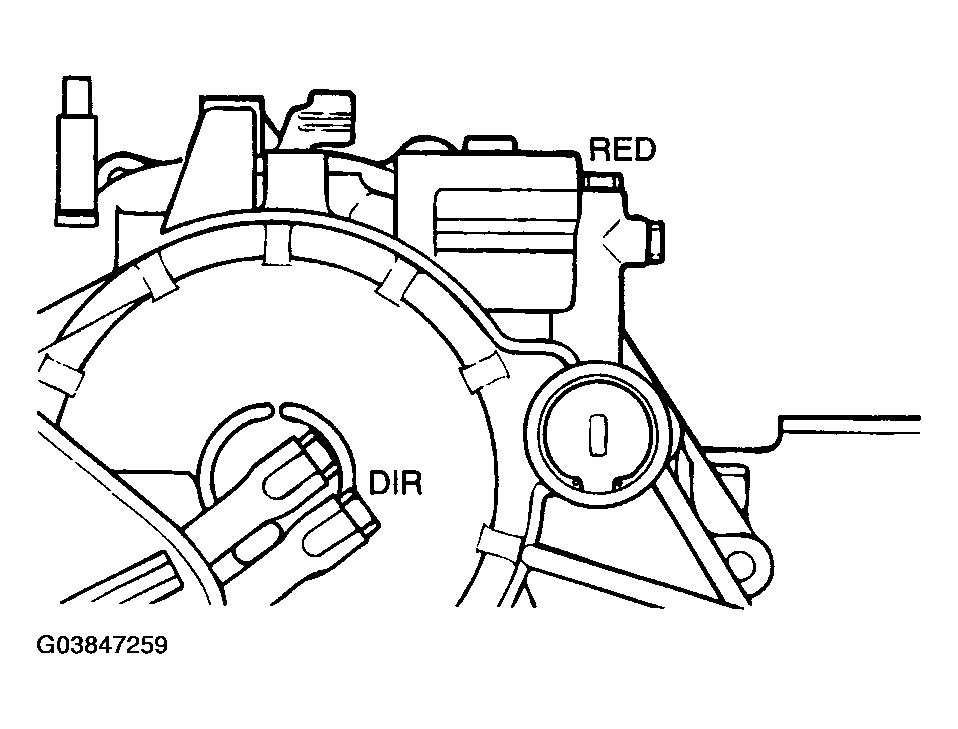

Fig 2: Attaching Special Tool To Automatic Transaxle (2 Of 4)
Courtesy of HYUNDAI MOTOR CO.

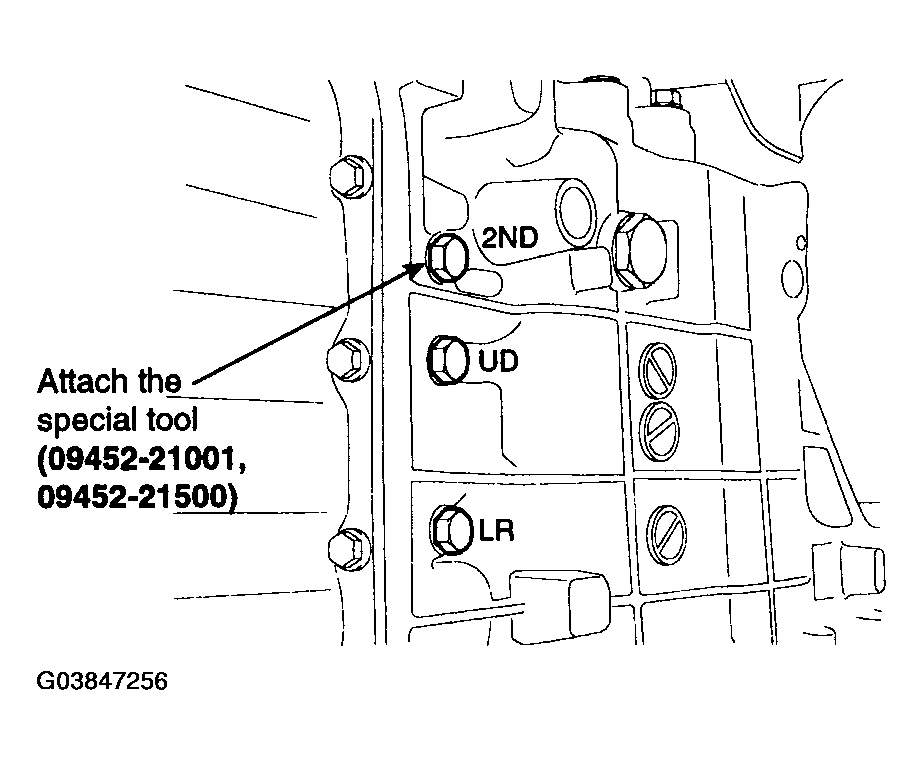

Fig 3: Attaching Special Tool To Automatic Transaxle (3 Of 4)
Courtesy of HYUNDAI MOTOR CO.

Fig 4: Attaching Special Tool To Automatic Transaxle (4 Of 4)
Courtesy of HYUNDAI MOTOR CO.
Measure the hydraulic pressure at each port under the conditions given in STANDARD HYDRAULIC PRESSURE (4A/T) CHART , and check that the measured values are within the standard value ranges.
If a value is outside the standard range, correct the problem while referring to HYDRAULIC PRESSURE TEST DIAGNOSIS .
