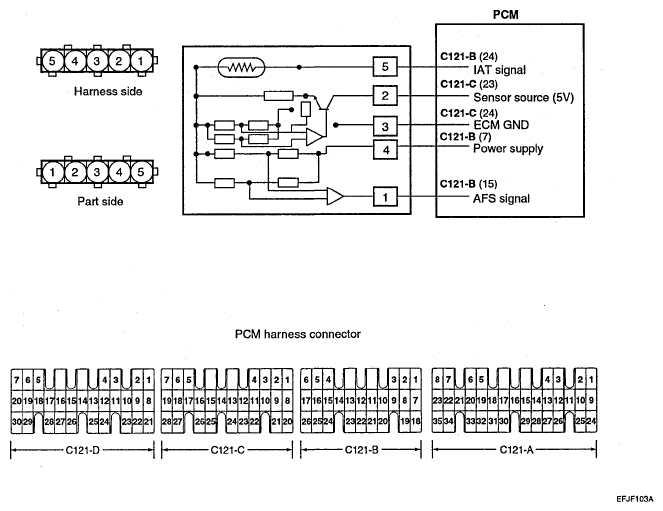

Home >> Hyundai >> 2006 >> Santa Fe Limited, FWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Fuel System (G6CU-GSL 3.5) >> Gasoline Engine Control System >> Intake Air Temperature (IAT) Sensor >> Circuit Diagram
