Location Of MFI Components

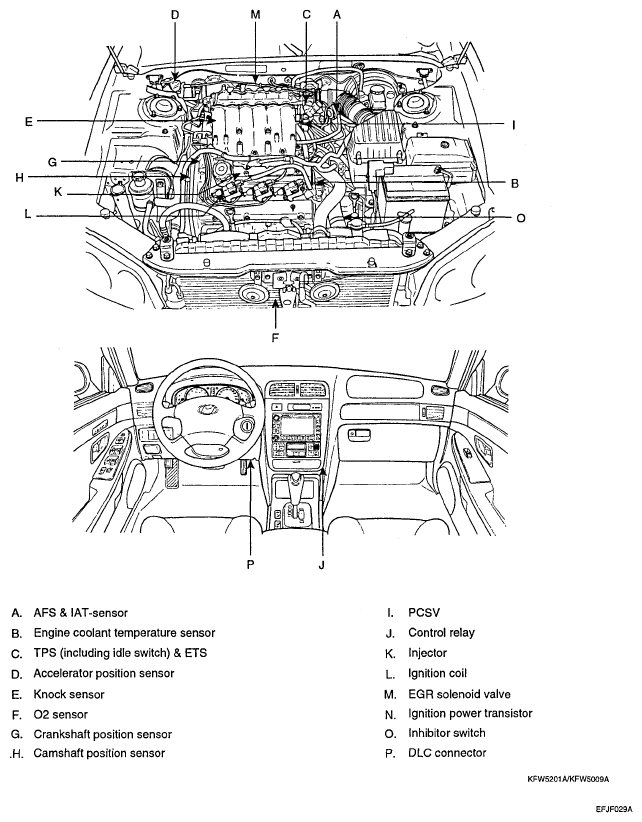

Fig 1: Identifying Location Of MFI Components (1 Of 3)
Courtesy of HYUNDAI MOTOR CO.

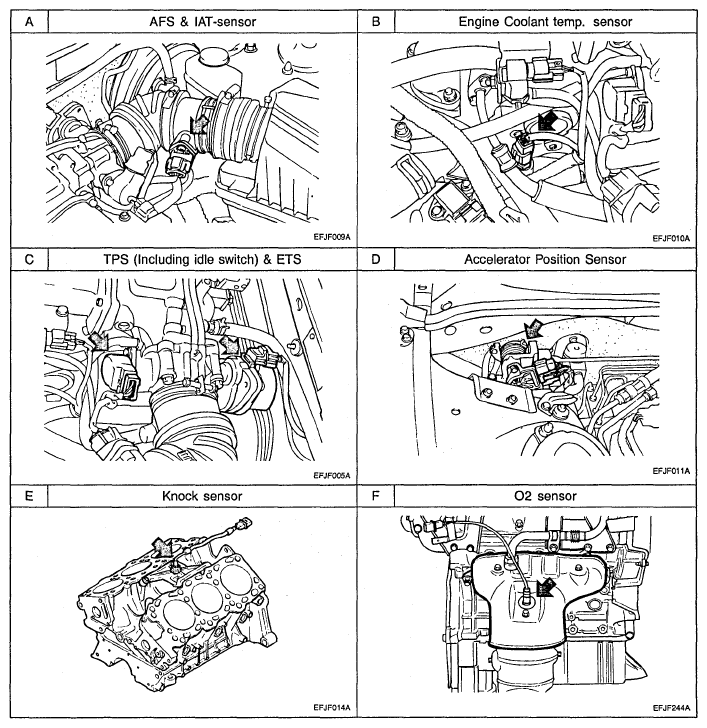

Fig 2: Identifying Location Of MFI Components (2 Of 3)
Courtesy of HYUNDAI MOTOR CO.

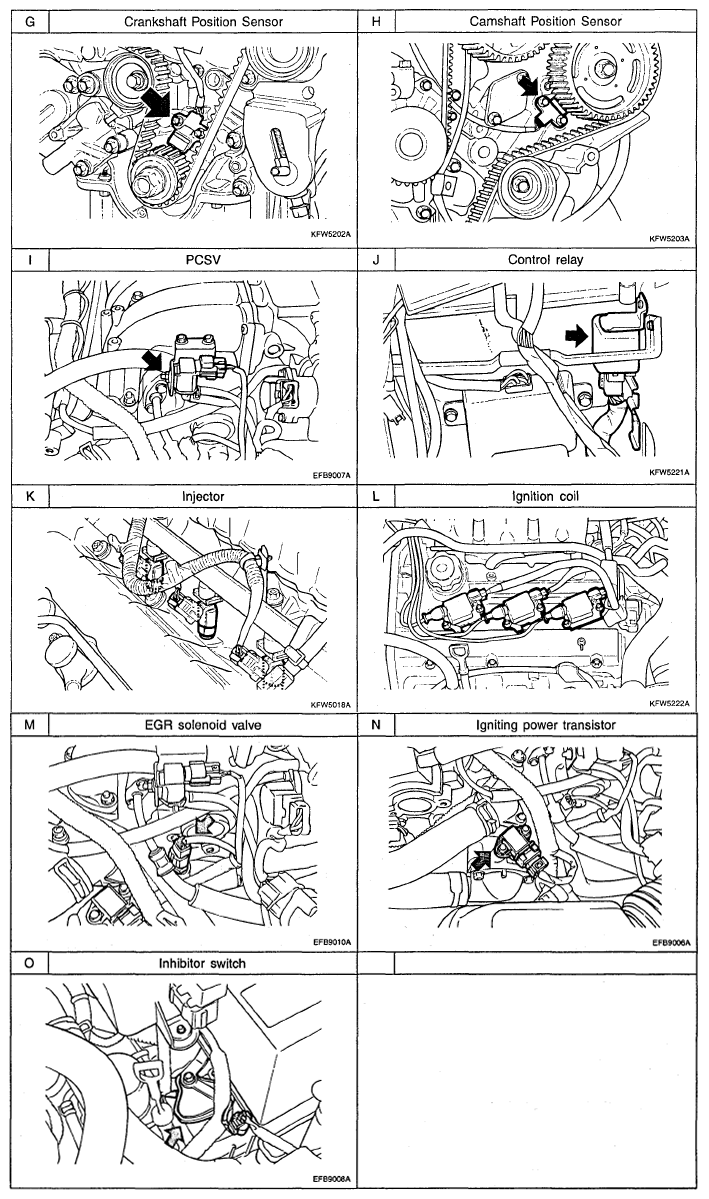

Fig 3: Identifying Location Of MFI Components (3 Of 3)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
