Canister Close Valve: Notes

The Canister Close Valve (CCV) is for monitoring of evaporative leakage detection.

While the leakage monitoring is operated, the CCV becomes closed but it is normally open.

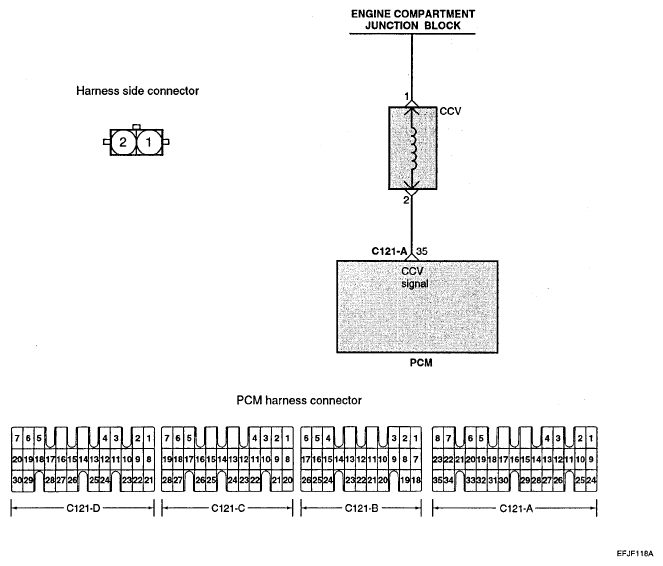

Fig 1: Identifying Canister Close Valve
G04931617Courtesy of HYUNDAI MOTOR CO.
