Charging System: Generator: Replacement

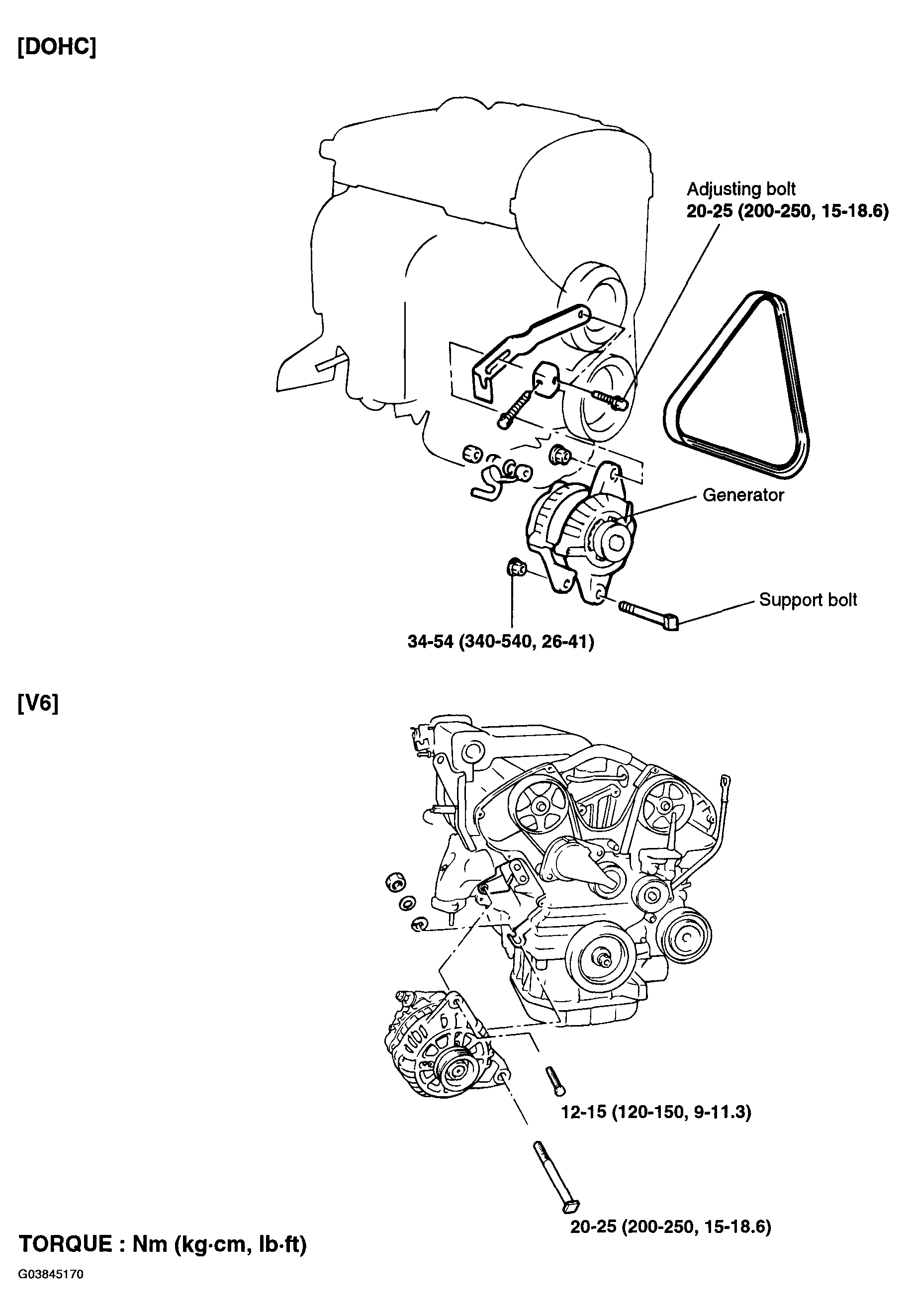

Fig 1: Removing/Installing Generator With Torque Specifications

G03845170

Courtesy of HYUNDAI MOTOR CO.
