3.5 V6 Engine

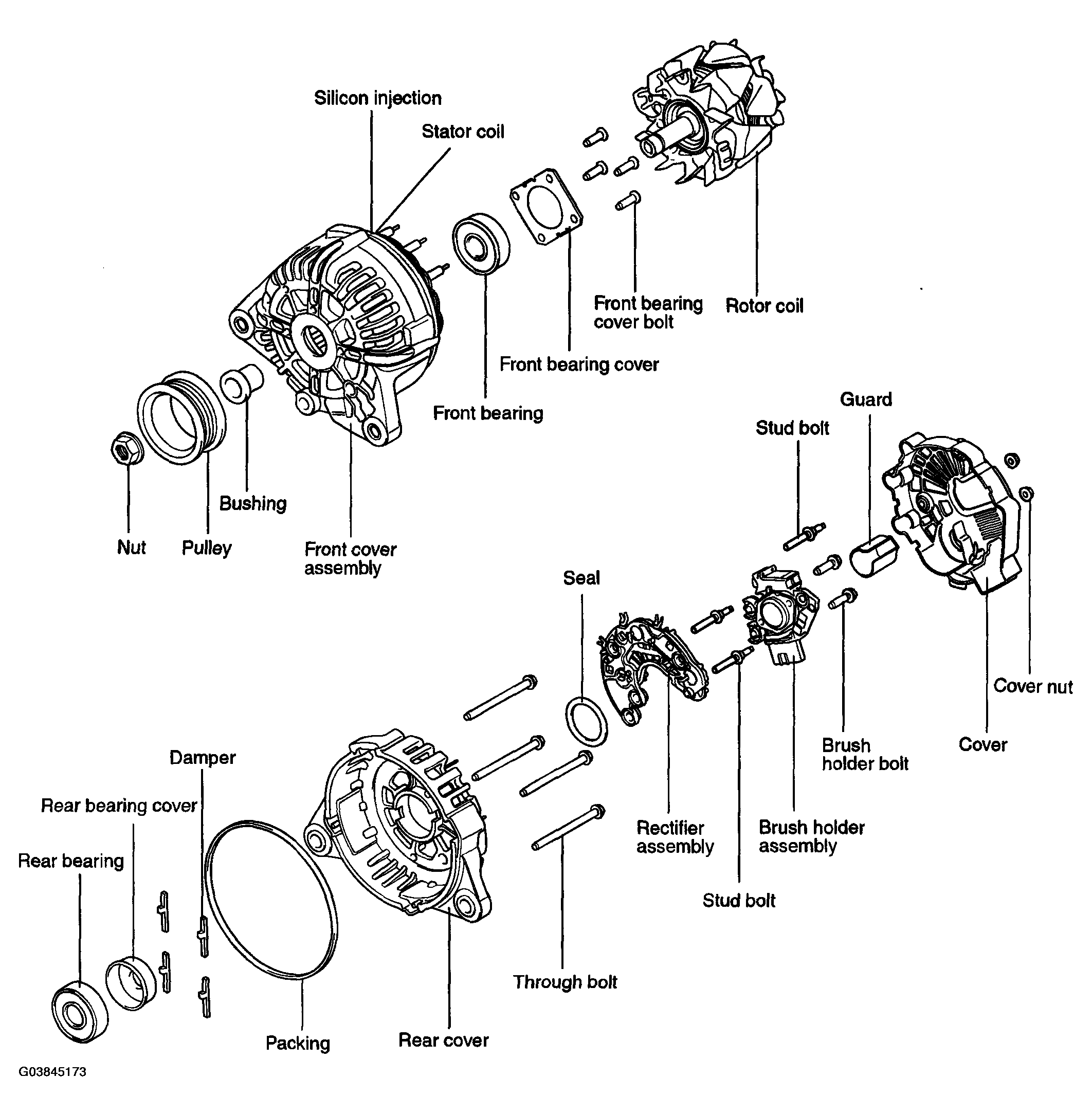

Fig 1: Exploded View Of Generator (3.5 V6 Engine)

G03845173

Courtesy of HYUNDAI MOTOR CO.
