2.7 V6 Engine

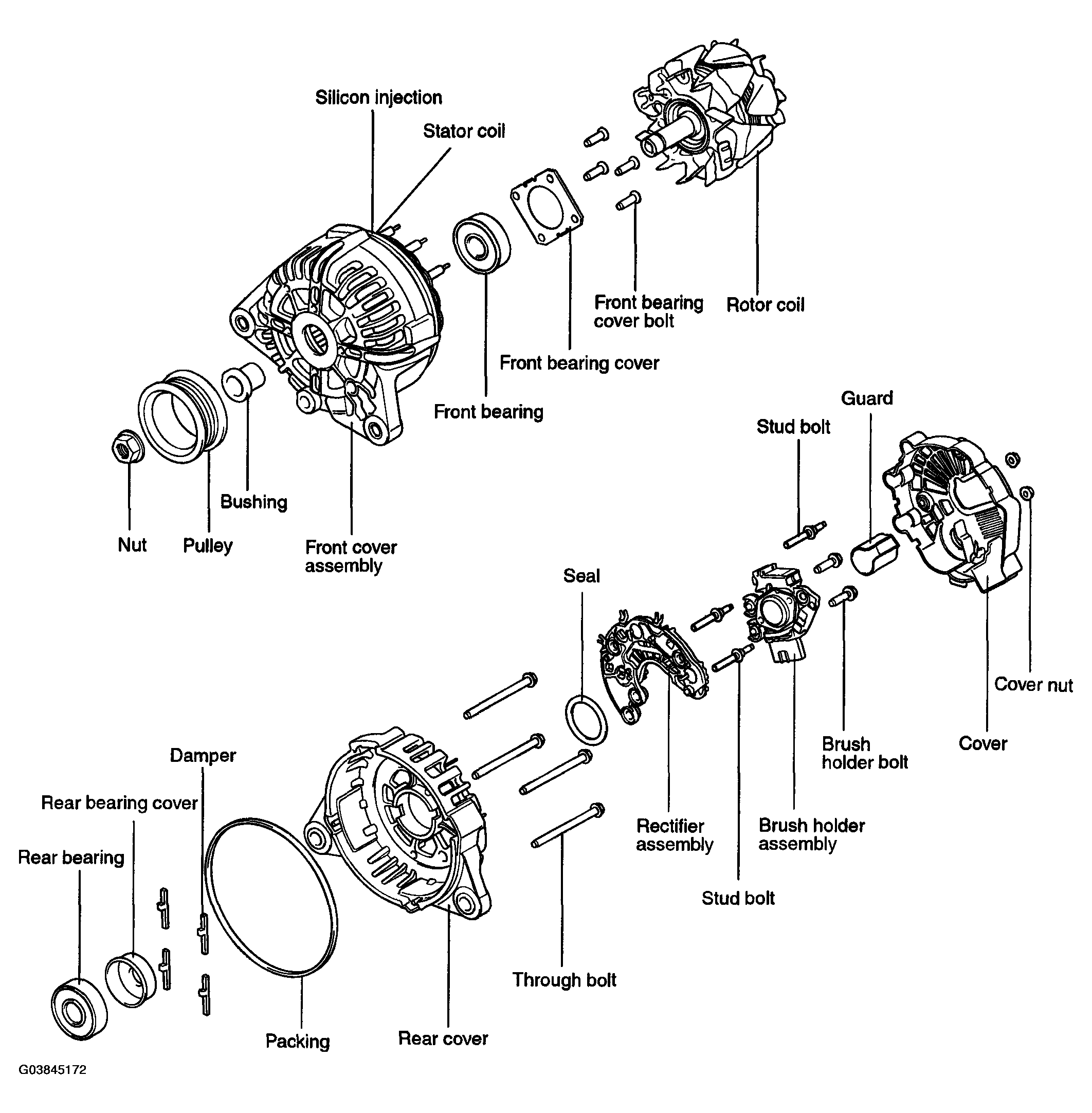

Fig 1: Exploded View Of Generator (2.7 V6 Engine)

G03845172

Courtesy of HYUNDAI MOTOR CO.
