Home >> Hyundai >> 2006 >> Santa Fe Limited, FWD >> Repair and Diagnosis >> Electrical >> Charging Systems >> Charging System >> Generator >> Components >> 2.4 DOHC Engine

2.4 DOHC Engine

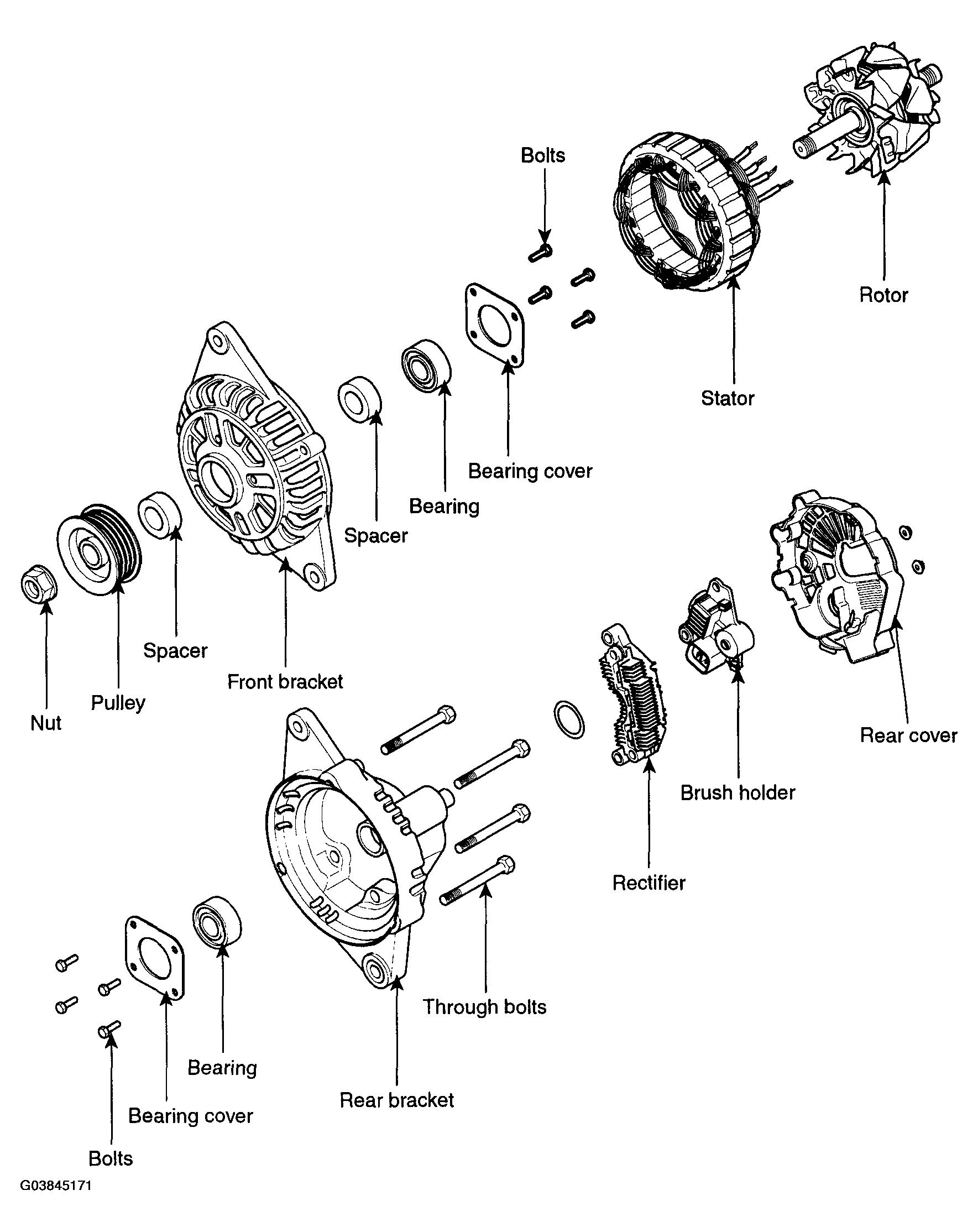

Fig 1: Exploded View Of Generator (2.4 DOHC Engine)

G03845171

Courtesy of HYUNDAI MOTOR CO.
