Inspection
>>
Power Window Main Switch
Power Window Main Switch

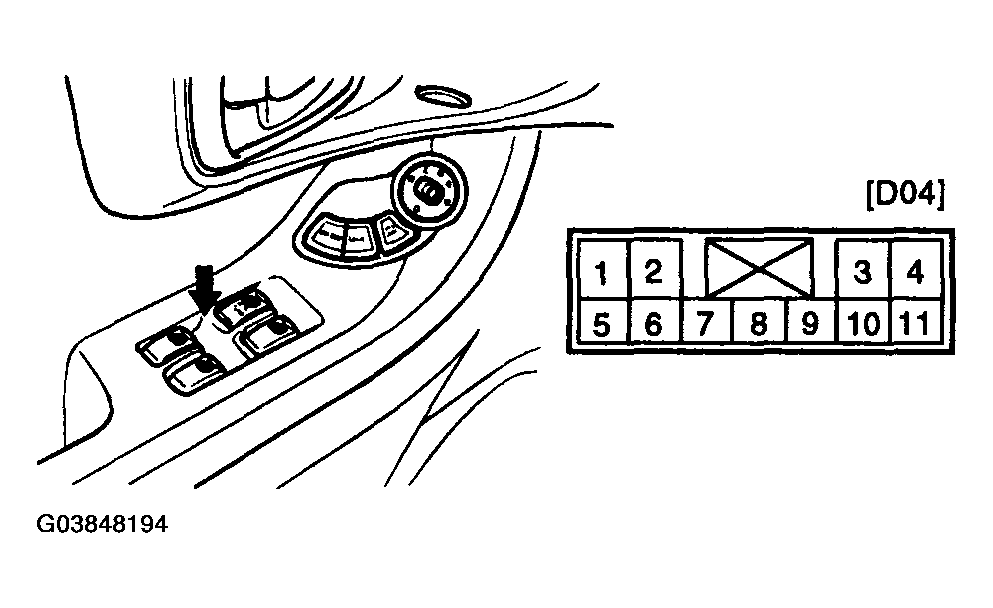

Fig 1: Identifying Power Window Main Switch
Courtesy of HYUNDAI MOTOR CO.

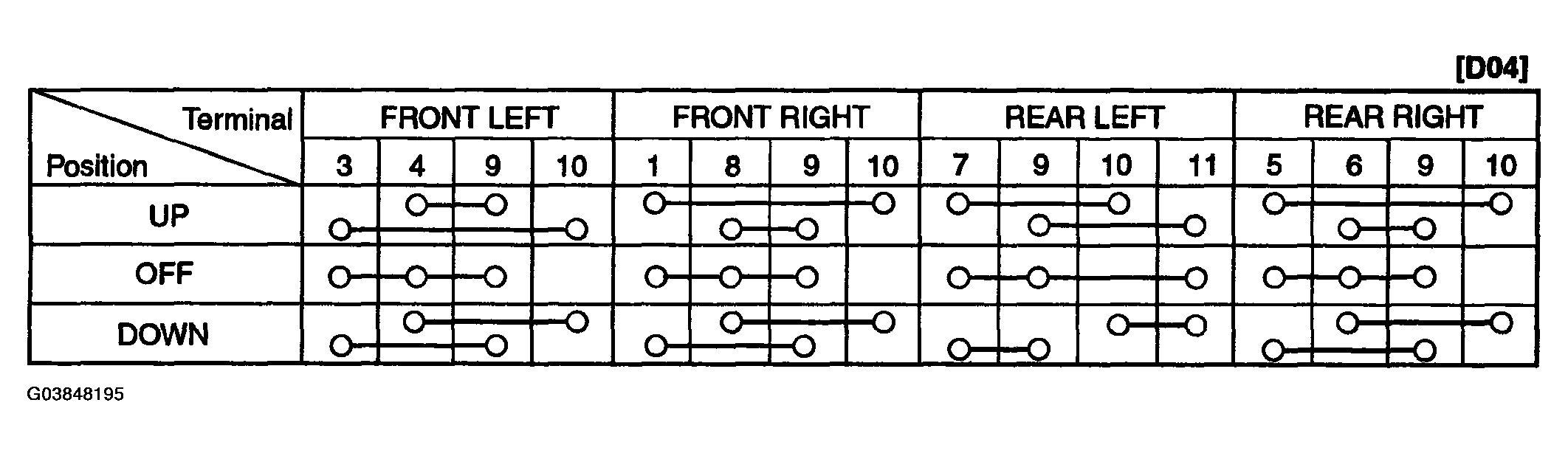

Fig 2: Power Window Main Switch Continuity Reference Table
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
