Power Window Motor: Inspection

Connect the motor terminals directly to battery voltage (12V) and check that the motor operates smoothly. Next, reverse the polarity and check that the motor operates smoothly in the reverse direction. If the operation is abnormal, replace the motor.

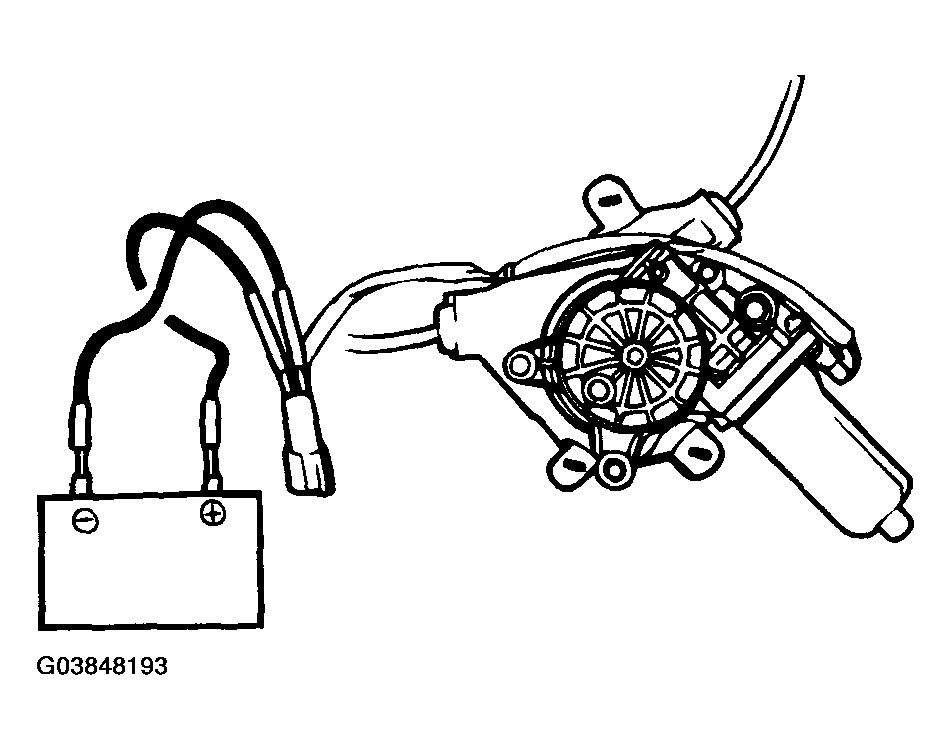

Fig 1: Connecting Motor Terminals To Battery Voltage (12V)
G03848193Courtesy of HYUNDAI MOTOR CO.
