Code No. P0708 Transaxle range switch circuit

DIAGNOSTIC TROUBLE CODE NO. P0708 - TRANSAXLE RANGE SWITCH CIRCUIT

Code No. P0708 Transaxle range switch circuit Probable cause
The TCM sets this code when the Transaxle Range Switch outputs multiple signals for more than 30 seconds.
  • Open or short in circuit
  • Faulty TRANSAXLE RANGE SWITCH
  • Faulty TCM (PCM)

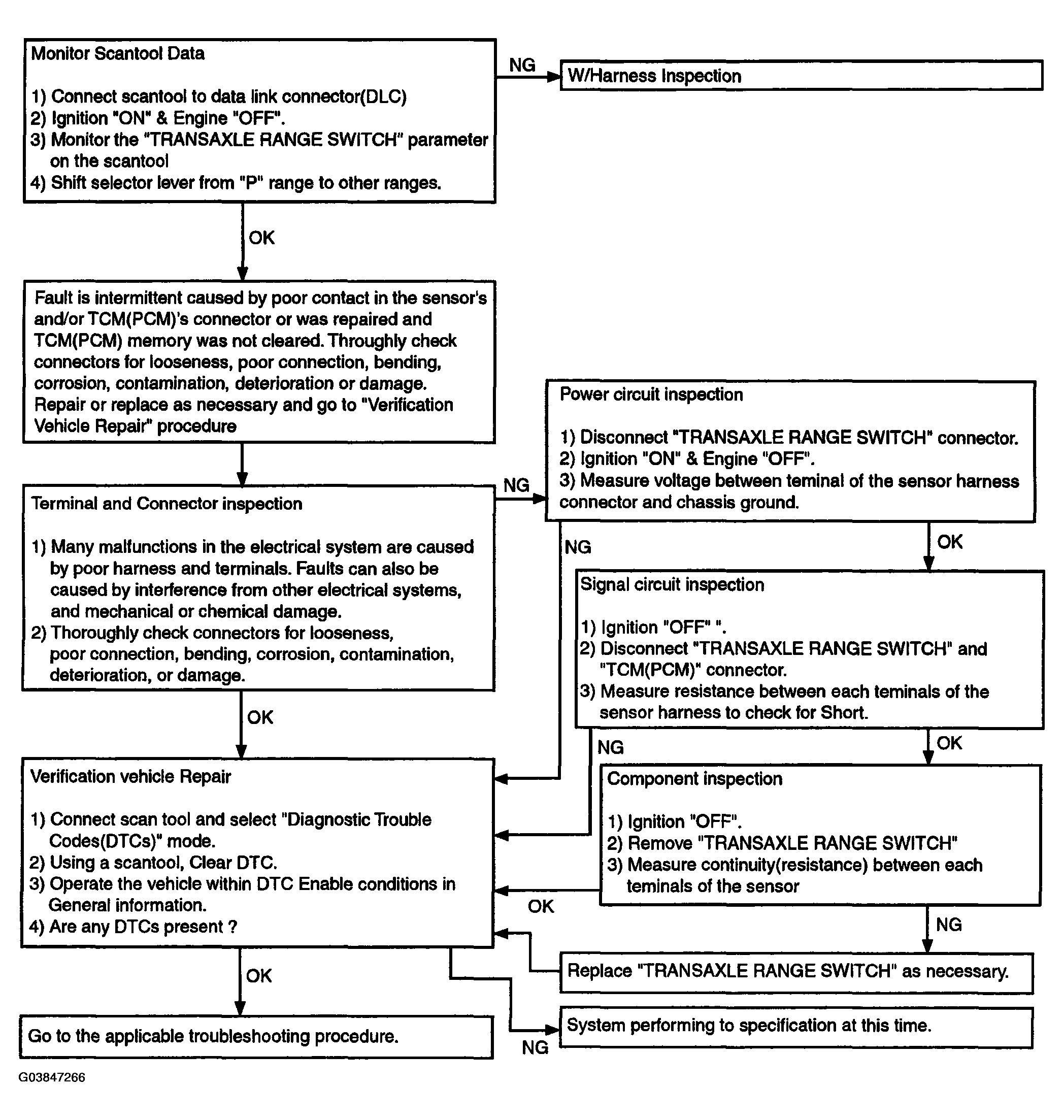

Fig 1: Diagnostic Trouble Code Flow Chart - P0708
G03847266Courtesy of HYUNDAI MOTOR CO.
