Components [Only 4WD]

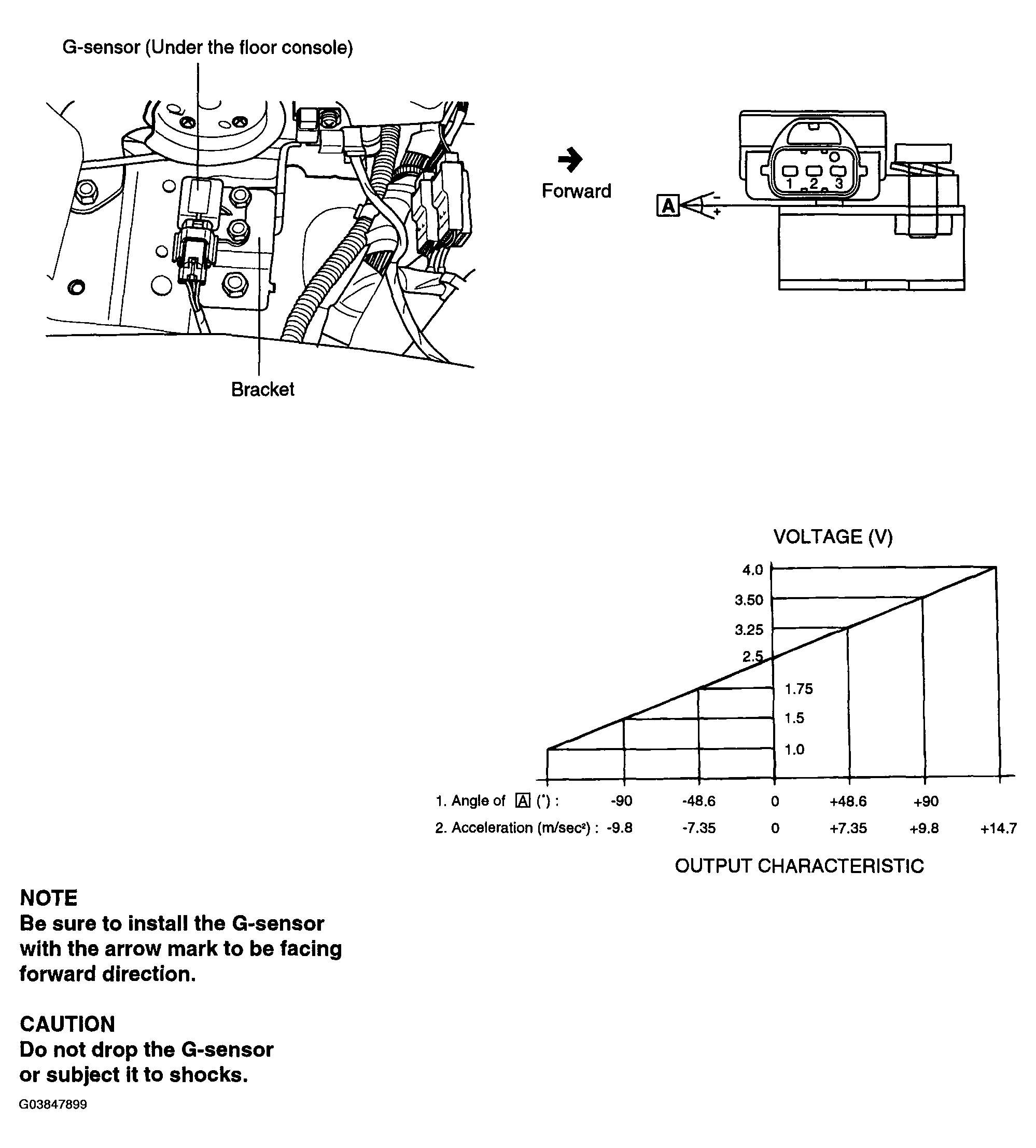

Fig 1: Identifying G Sensor
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
