Front Wheel Speed Sensor

  1. Remove the front wheel speed sensor mounting bolt (A).

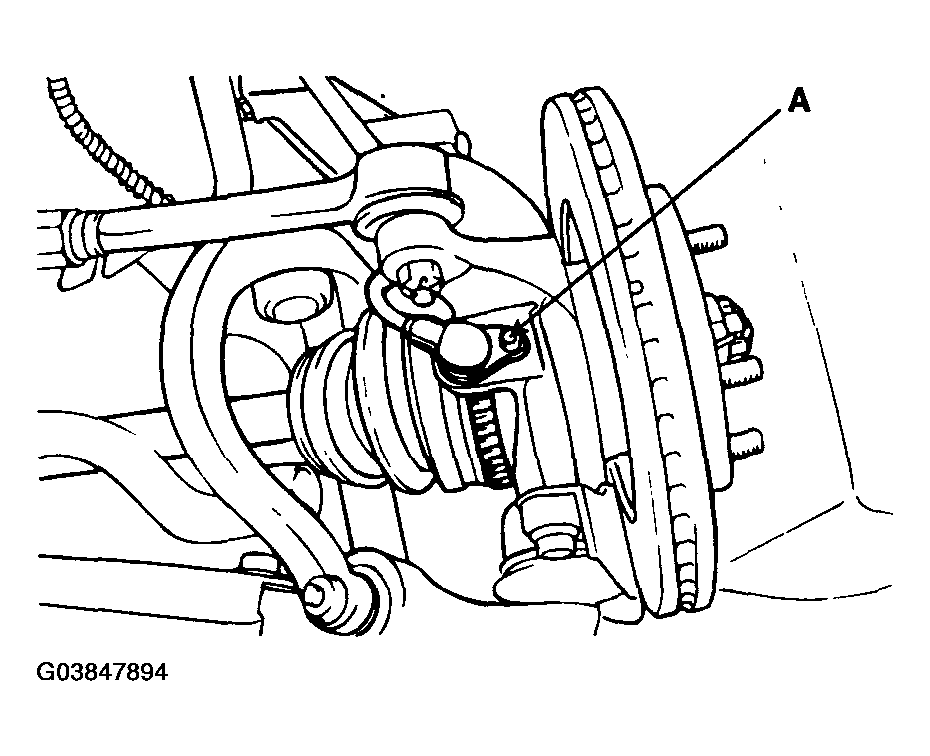

    Fig 1: Identifying Wheel Speed Sensor Mounting Bolt
    G03847894Courtesy of HYUNDAI MOTOR CO.
  2. Remove the front wheel speed sensor after disconnecting the wheel speed sensor connector (A).

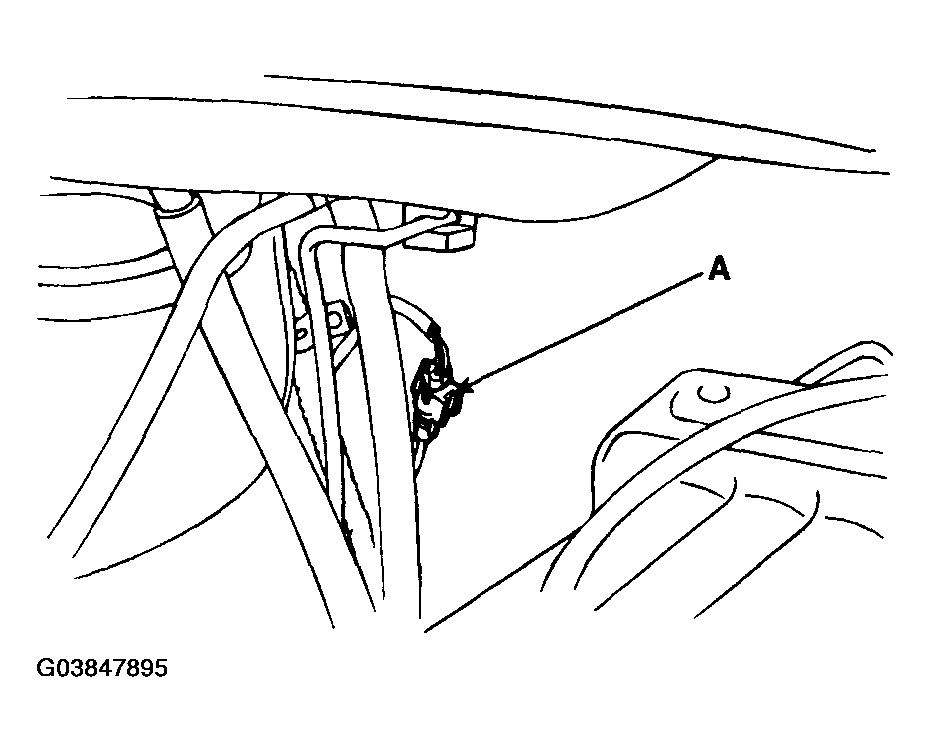

    Fig 2: Identifying Wheel Speed Sensor Connector
    G03847895Courtesy of HYUNDAI MOTOR CO.
