Windshield Glass: Removal

To remove the windshield, first remove the following parts:
1. Front pillar trim
2. Inside rear view mirror
3. Wiper arms
4. Cowl top cover
5. Windshield glass molding

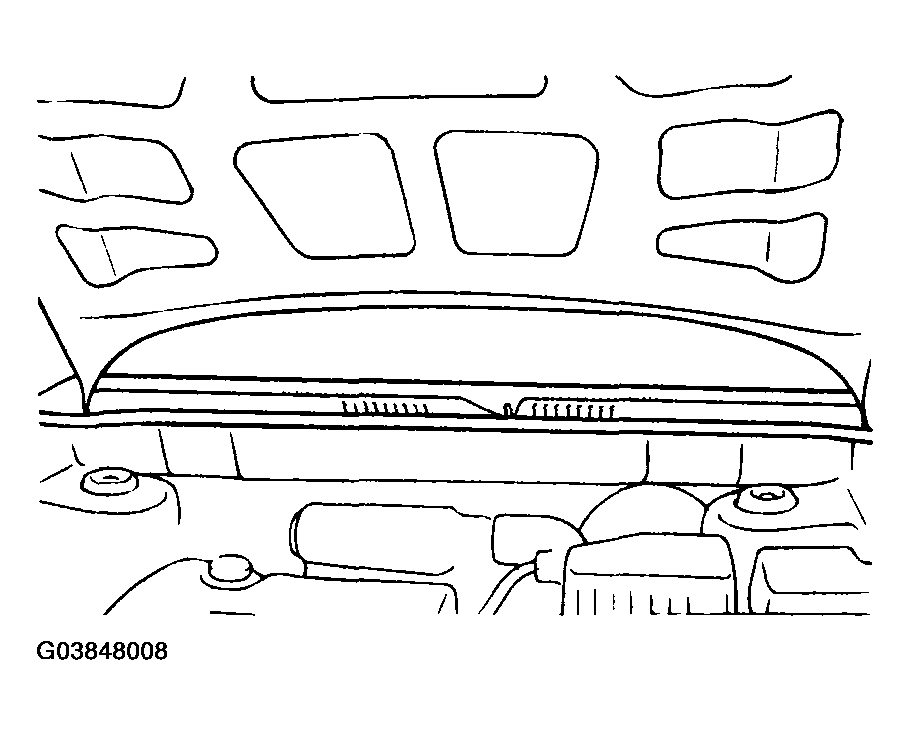

  Fig 1: Identifying Windshield Glass Molding
  Courtesy of HYUNDAI MOTOR CO.
Use the special tool (09861-31100) to cut through the sealant.

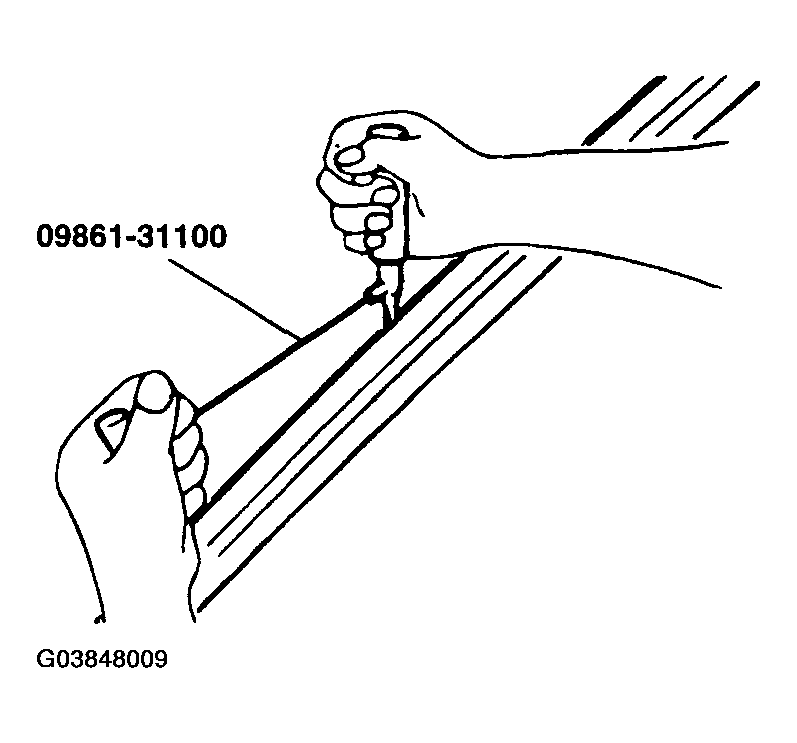

Fig 2: Cutting Through Sealant
Courtesy of HYUNDAI MOTOR CO.
Make mating marks on the glass and body if the glass is to be reinstalled.

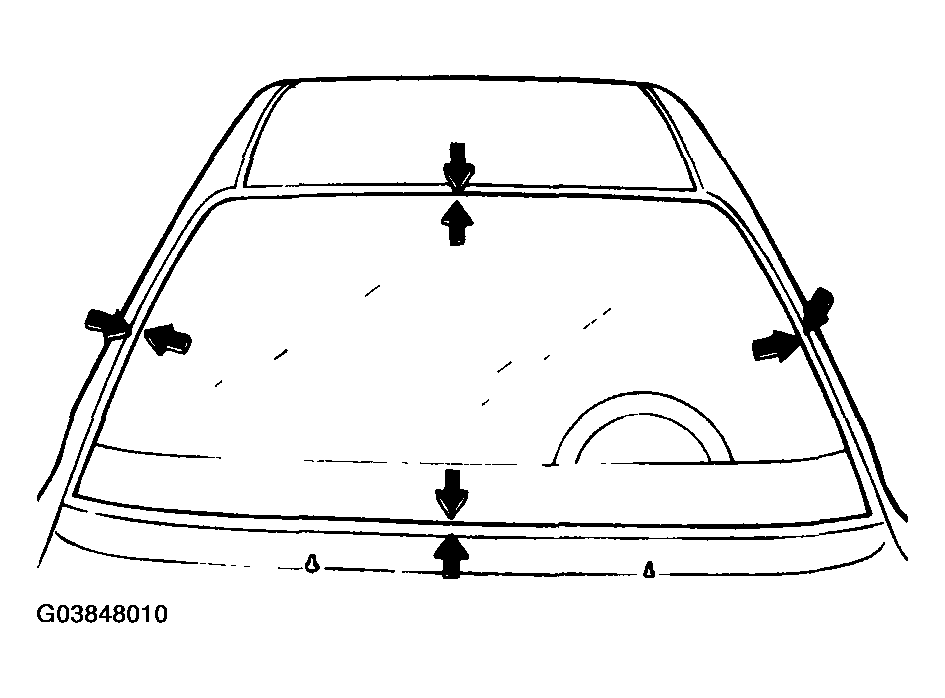

Fig 3: Identifying Marking Lines Across Glass And Body
Courtesy of HYUNDAI MOTOR CO.
Take out the windshield glass with the special tool (09861-31400).

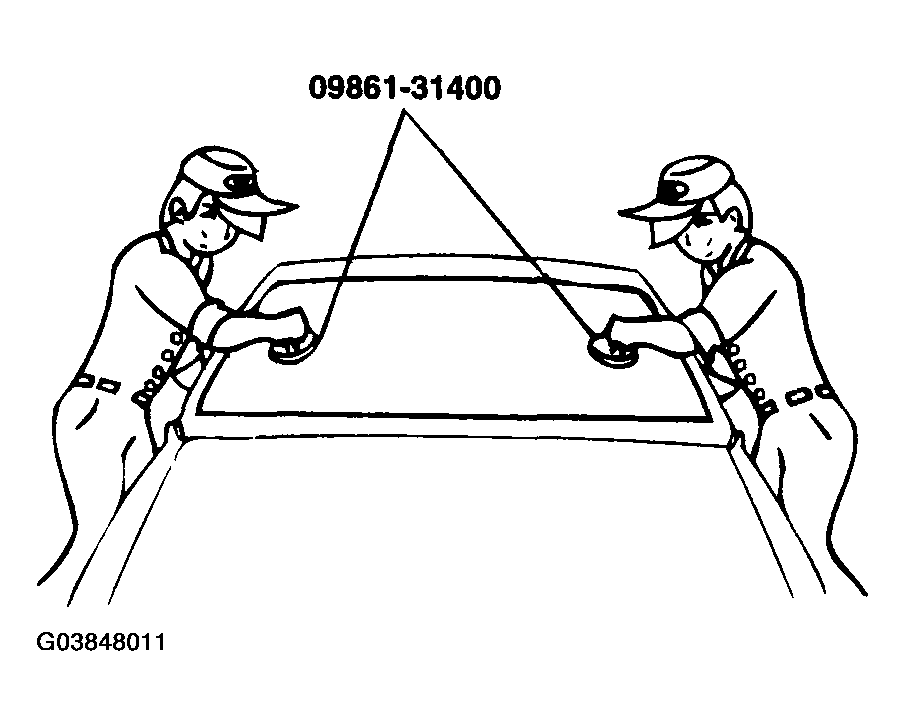

Fig 4: Taking Out Windshield Glass
Courtesy of HYUNDAI MOTOR CO.
