Quarter Glass: Installation

  1. Using a knife or the special tool (09861-31200), scrape the old sealant smoothly to a thickness of about 2mm (0.08in.)
  2. Clean the body bonding surface with a sponge dampened in alcohol or grease remover.
  3. Apply primer to the body bonding surface.

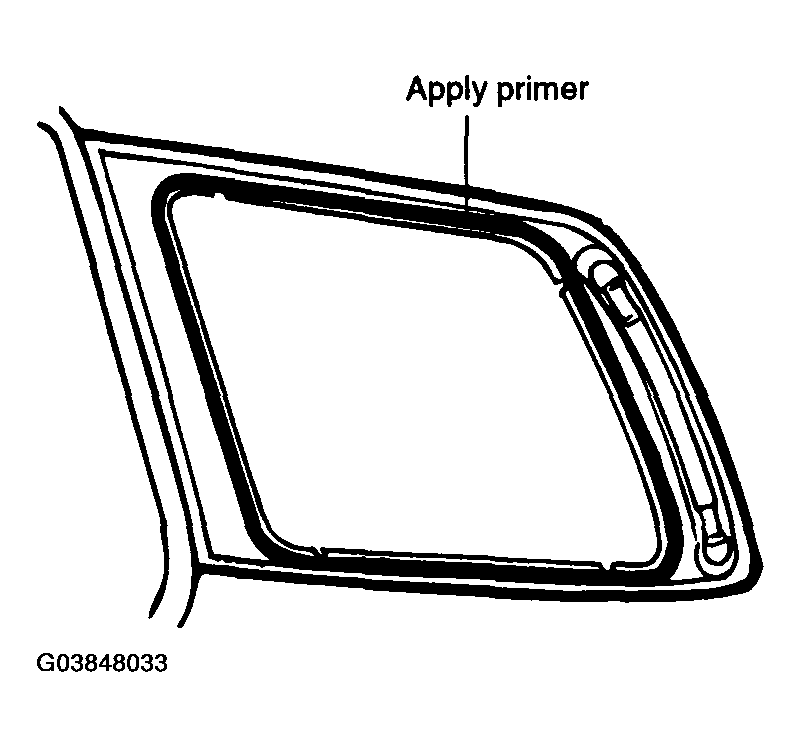

    Fig 1: Applying Primer To Body Bonding Surface
    G03848033Courtesy of HYUNDAI MOTOR CO.
  4. Clean the surface of quarter fixed glass and then apply primer.
  5. Apply sealant to the quarter fixed glass.

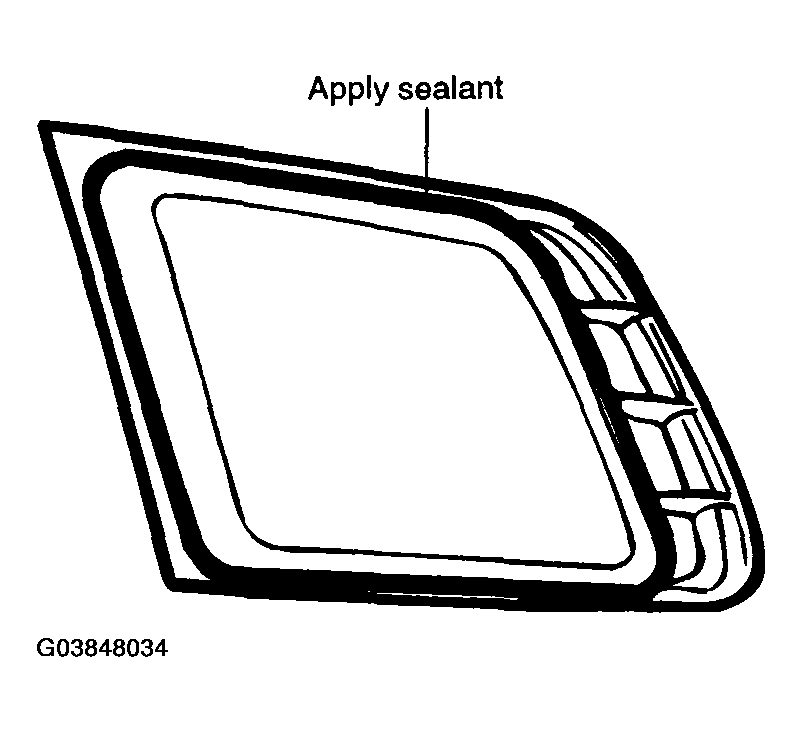

    Fig 2: Applying Sealant To Quarter Fixed Glass
    G03848034Courtesy of HYUNDAI MOTOR CO.
  6. Fasten a dual lock fastener to the quarter panel.

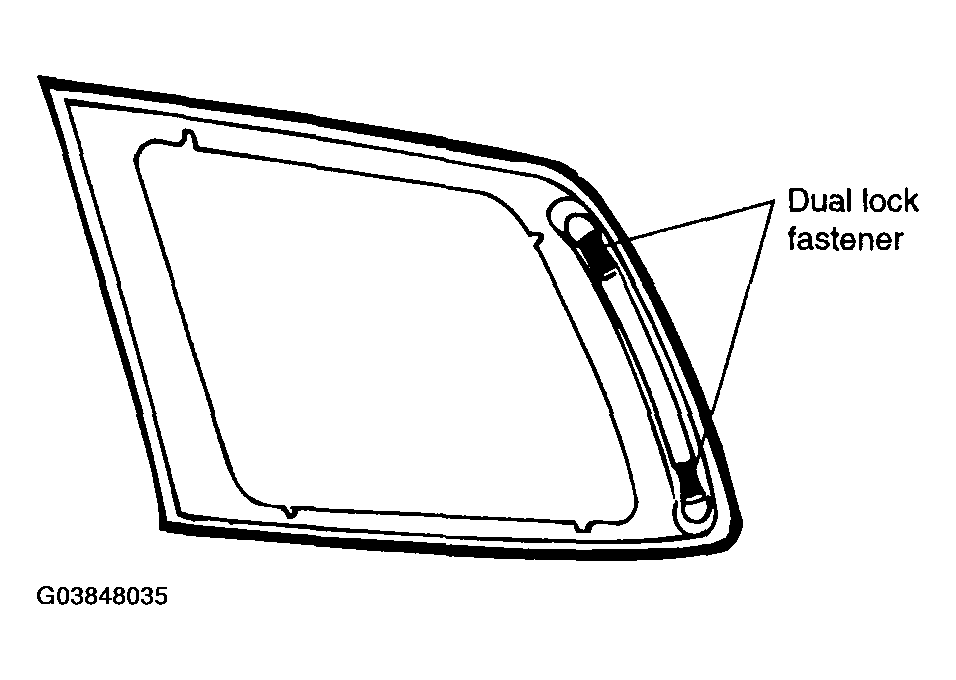

    Fig 3: Fastening Dual Lock Fastener To Quarter Panel
    G03848035Courtesy of HYUNDAI MOTOR CO.
  7. Install the quarter fixed glass.

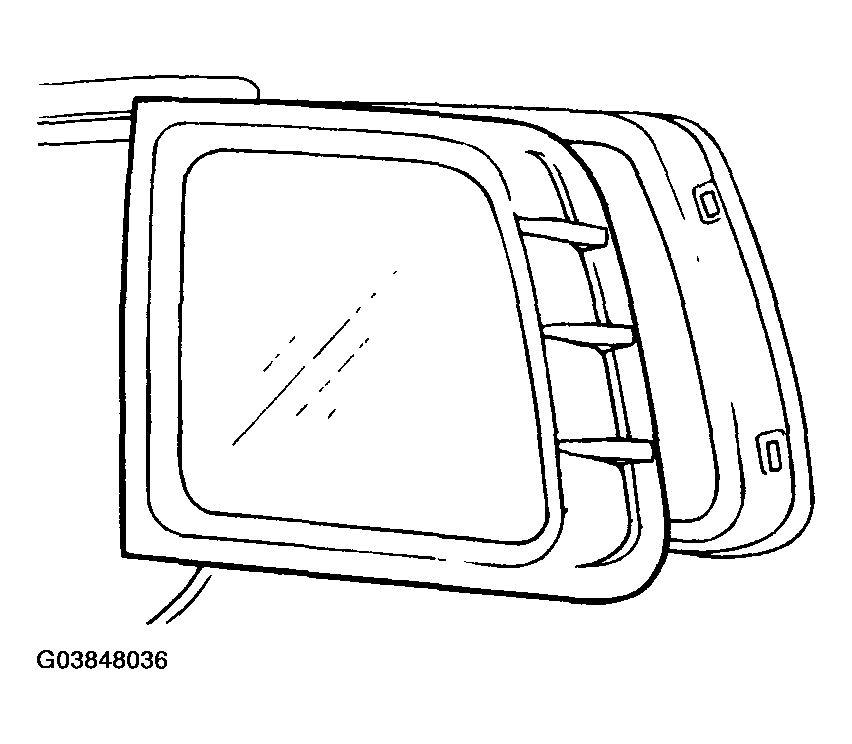

    Fig 4: Installing Quarter Fixed Glass
    G03848036Courtesy of HYUNDAI MOTOR CO.
