Troubleshooting Procedures

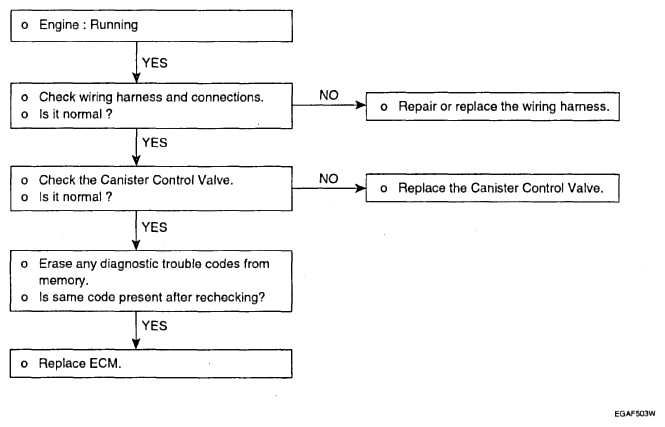

Fig 1: Troubleshooting Procedures Flow Chart
G04932147Courtesy of HYUNDAI MOTOR CO.
