Power Window Relay: Inspection

  1. Remove the power window relay(A) from the passenger compartment junction block(B).
  2. There should be continuity between the No.1 and No.4 terminals when power and ground are connected to the No.3 and No.2 terminals.
  3. There should be no continuity between the No.1 and No.4 terminals when power is disconnected.

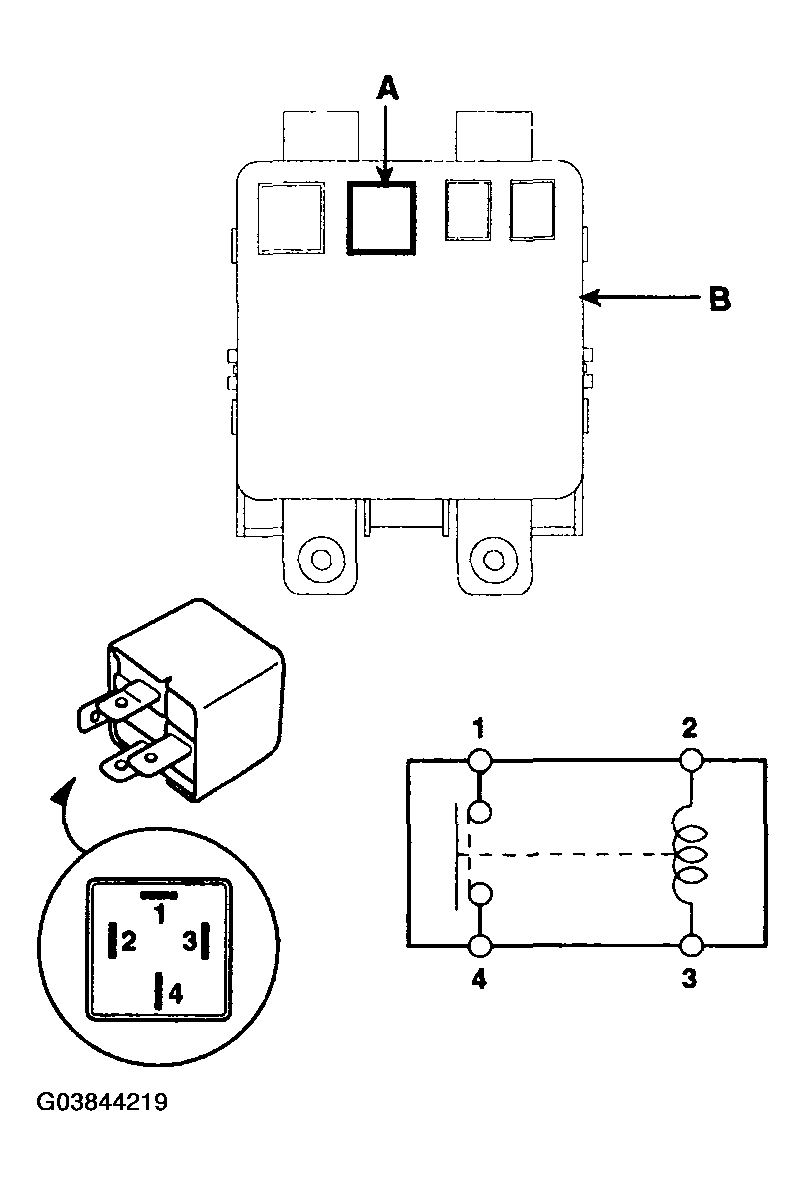

    Fig 1: Identifying Power Window Relay Terminals
    G03844219Courtesy of HYUNDAI MOTOR CO.
    Fig 2: Checking Power Window Relay Continuity
    G03844220Courtesy of HYUNDAI MOTOR CO.
