Front Power Window Motor Inspection

  1. Remove the front door trim panel, (see FRONT DOOR TRIM )
  2. Disconnect the 2P connector from the motor.

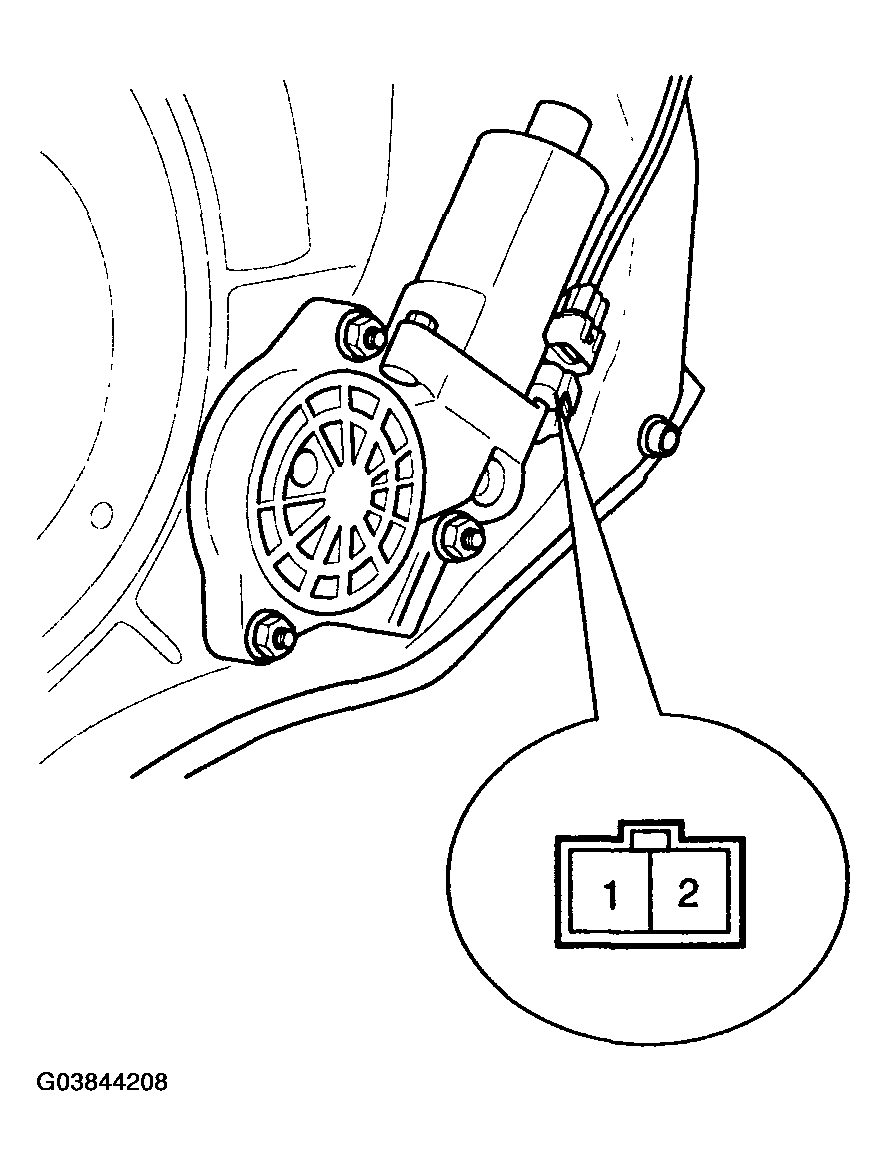

    Fig 1: Identifying Power Window Motor 2P Connector
    G03844208Courtesy of HYUNDAI MOTOR CO.
  3. Connect the motor terminals directly to battery voltage (12V) and check that the motor operates smoothly. Next, reverse the polarity and check that the motor operates smoothly in the reverse direction. If the operation is abnormal, replace the motor.

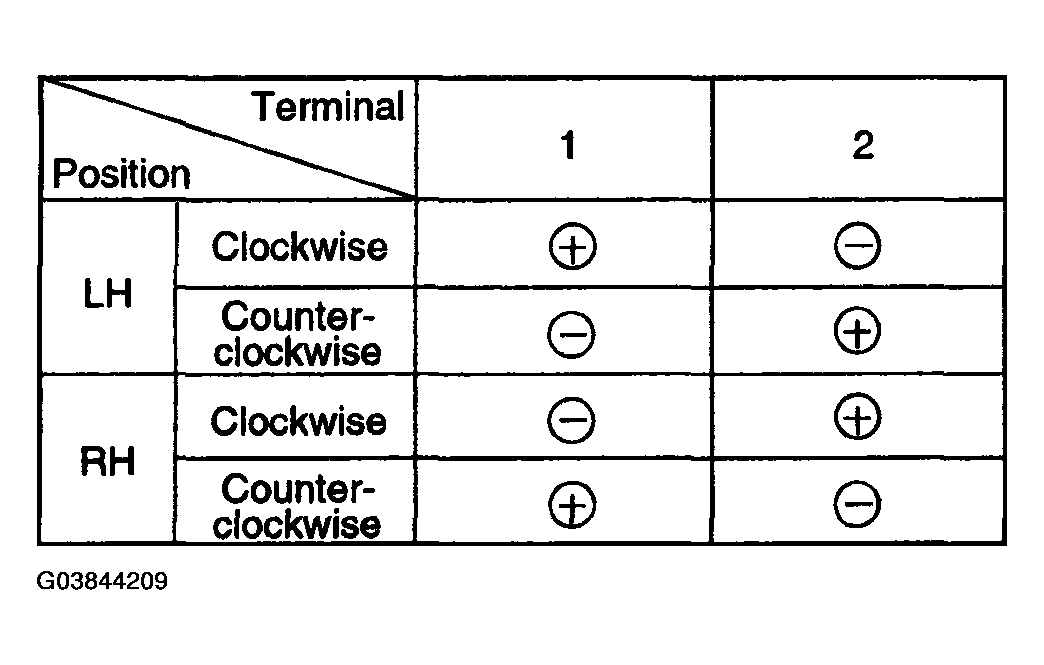

    Fig 2: Checking Power Window Motor Operation
    G03844209Courtesy of HYUNDAI MOTOR CO.
