Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

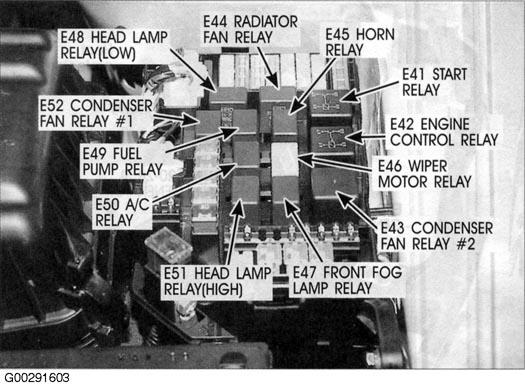

Engine Compartment Relay & Fuse Box In left front corner of engine compartment. See Figure .

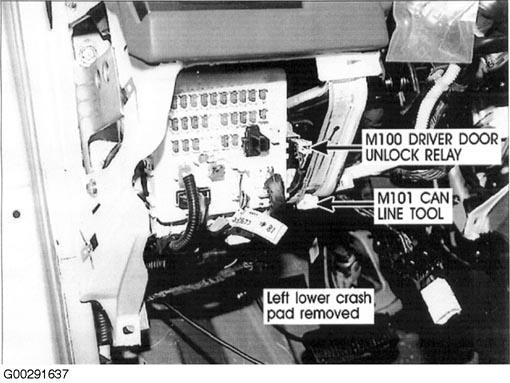

Passenger Compartment Junction Block Under left side of dash, near kick panel. See Figure .

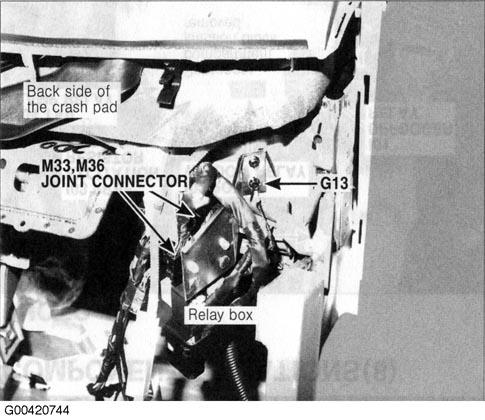

Passenger Compartment Relay Box Under left side of dash, beside passenger compartment junction block. See Figure .
