Inspect Ignition Switch

  1. Remove the connector located under the steering column.
  2. Check for continuity between terminals.

    If there is no continuity, replace the ignition switch.

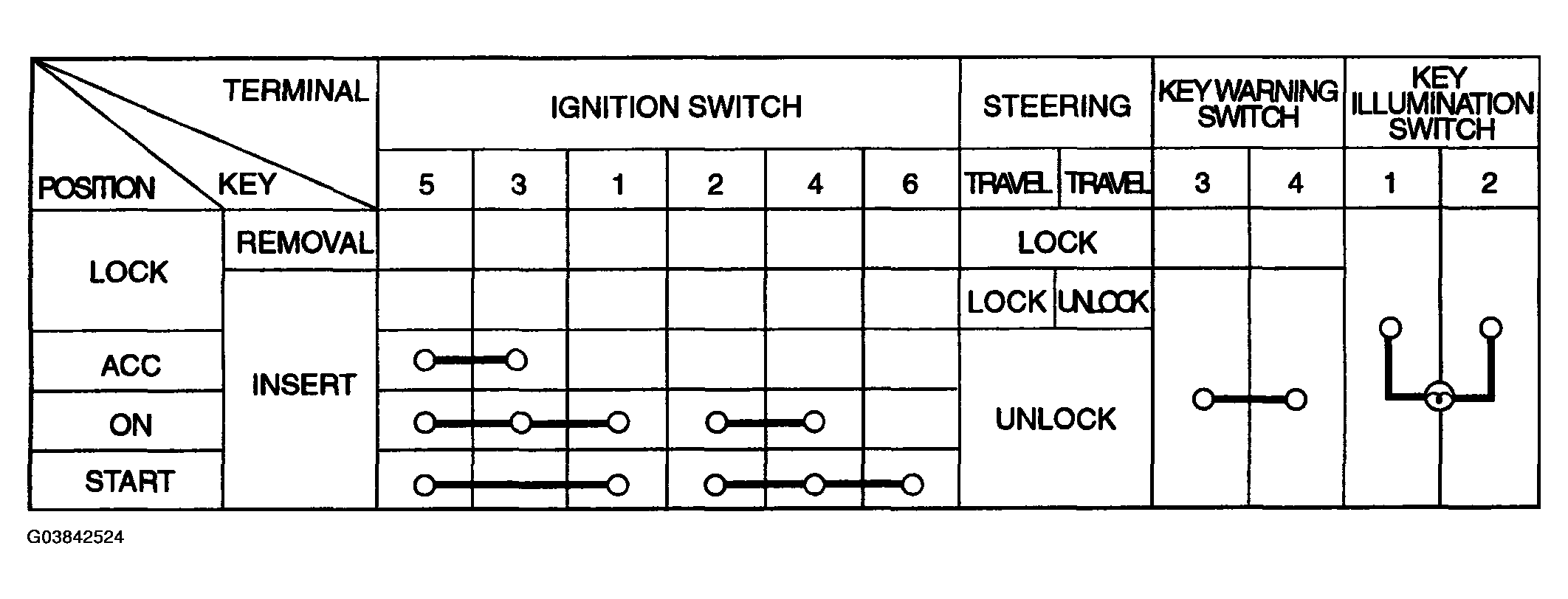

    Fig 1: Ignition Switch Continuity Chart
    G03842524Courtesy of HYUNDAI MOTOR CO.

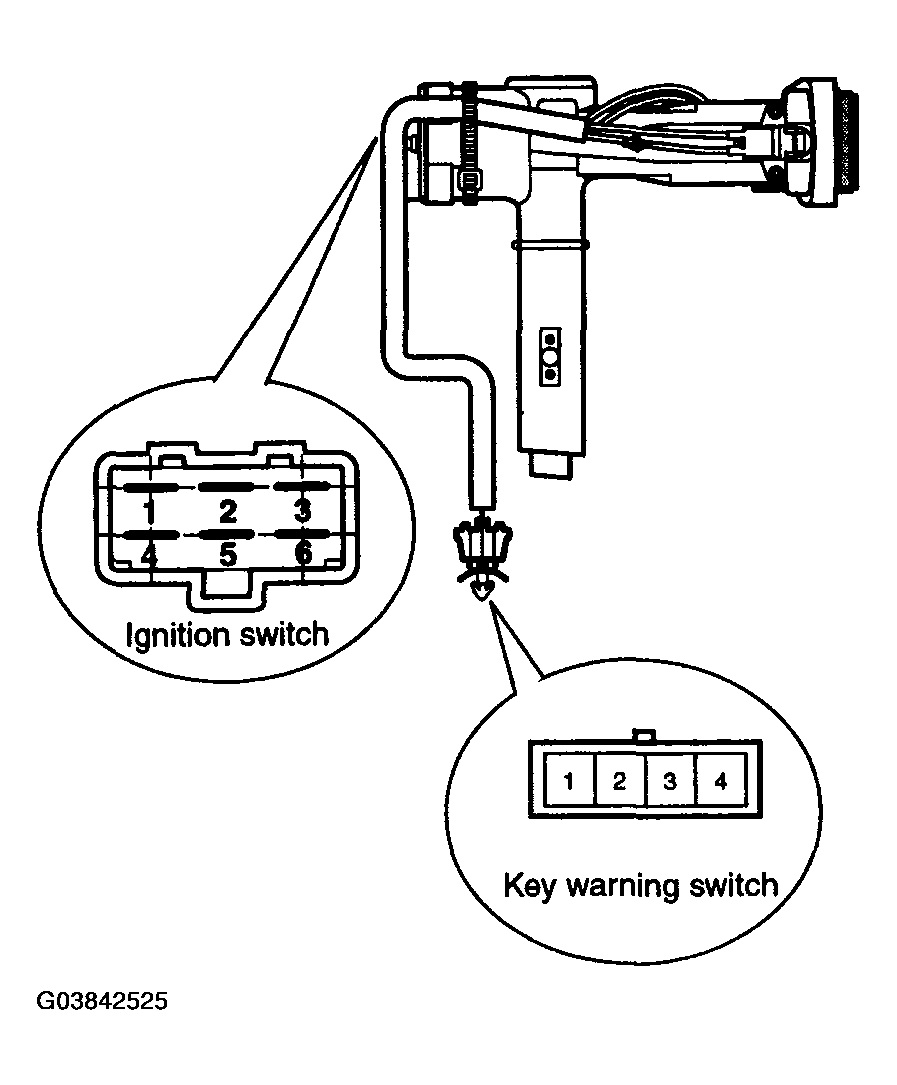

    Fig 2: Identifying Ignition Switch & Key Warning Switch Connectors
    G03842525Courtesy of HYUNDAI MOTOR CO.
