Starter Test Procedure: Notes

After the battery test, press ENTER immediately for the starter test.

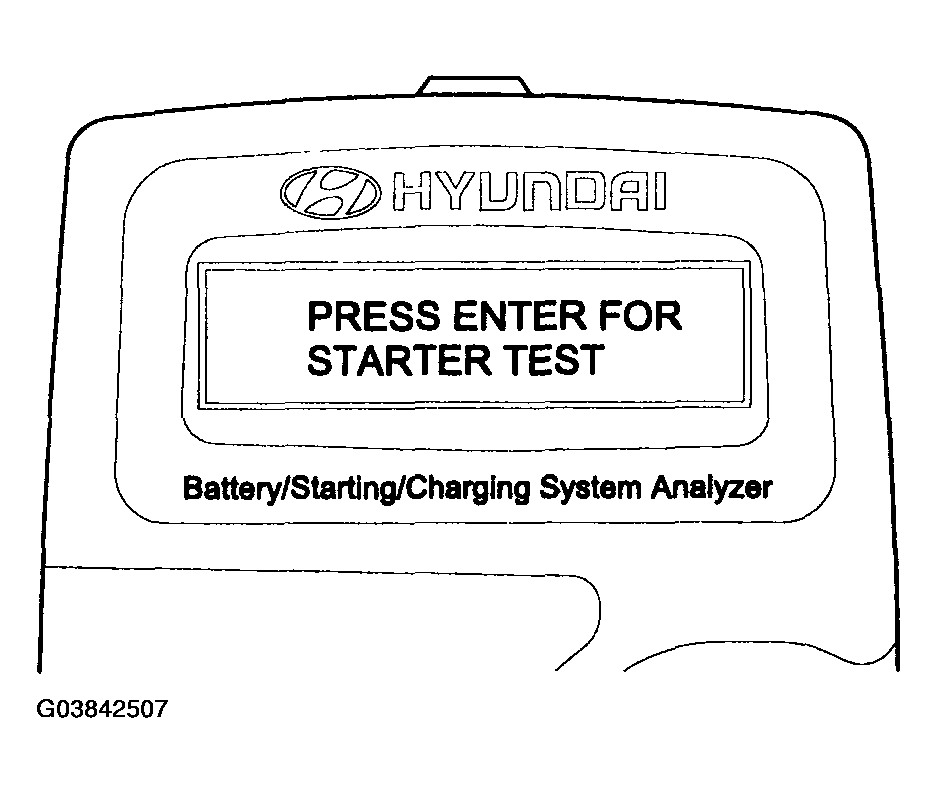

Fig 1: Displaying STARTER TEST PROCEDURE Screen
Courtesy of HYUNDAI MOTOR CO.
After pressing ENTER key, start the engine.

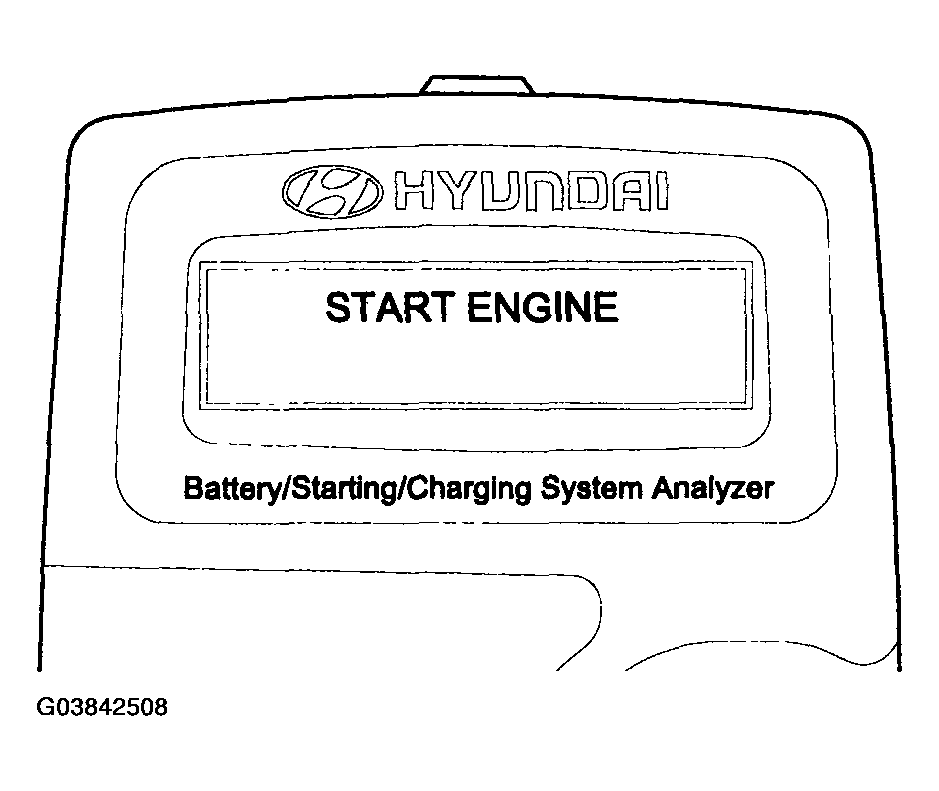

Fig 2: Displaying START ENGINE Screen
Courtesy of HYUNDAI MOTOR CO.
Cranking voltage and starter test results will be displayed on the screen.
Take relevant action according to the test results by referring to the starter test results as given below.

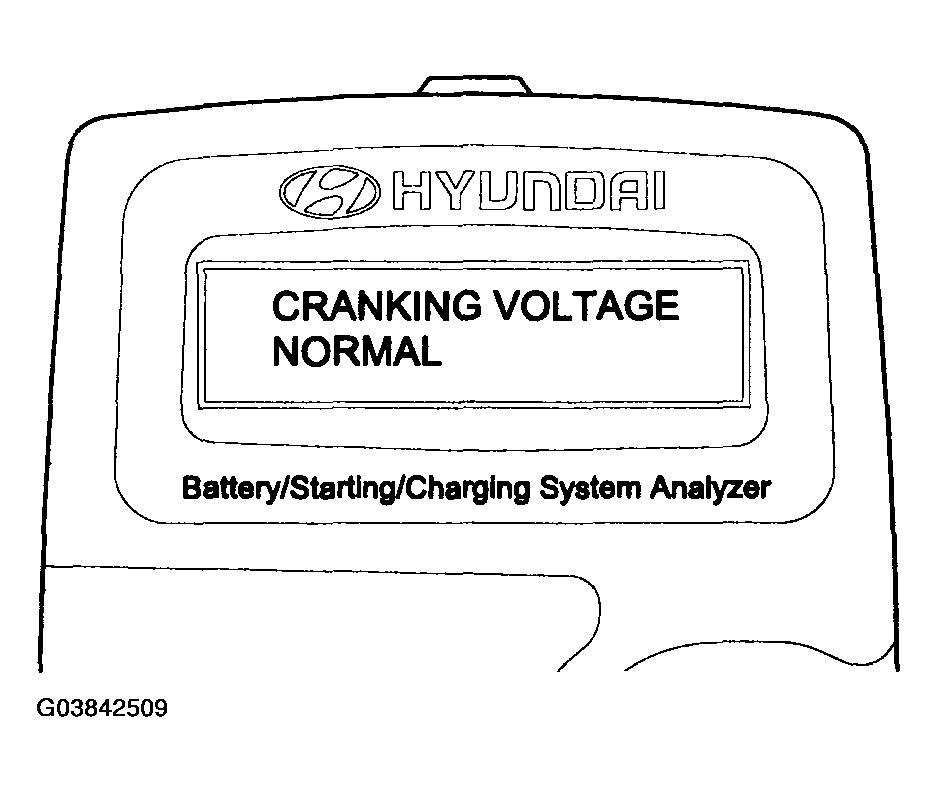

Fig 3: Displaying CRANKING VOLTAGE NORMAL Screen
Courtesy of HYUNDAI MOTOR CO.
To continue charging system test, press ENTER.
