Battery Test Procedure: Notes

Connect the tester to the battery.
- Red clamp to battery positive (+) terminal.
- Black clamp to battery negative (-) terminal.

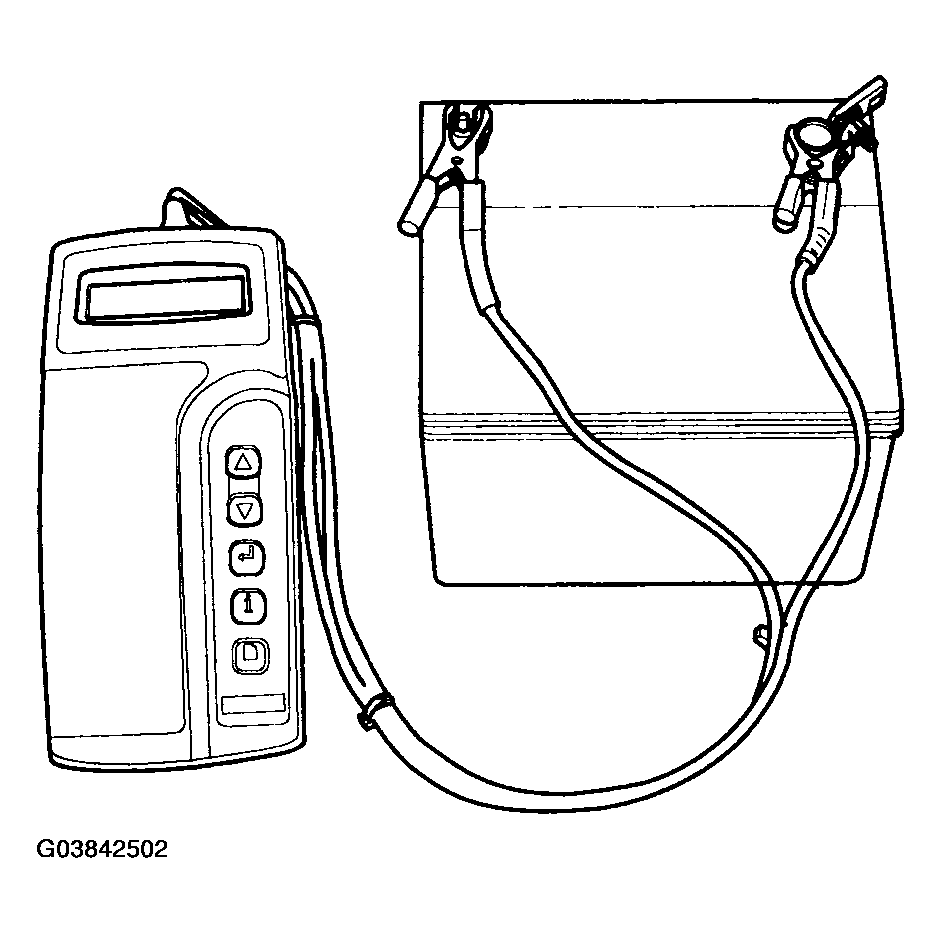

Fig 1: Connecting Tester To Battery
Courtesy of HYUNDAI MOTOR CO.

CAUTION: Connect clamps securely. If "CHECK CONNECTION" message is displayed on the screen, reconnect clamps securely.
The tester will ask if the battery is connected "IN A VEHICLE" or "OUT OF A VEHICLE".
Make your selection by pressing the arrow buttons; then press ENTER.

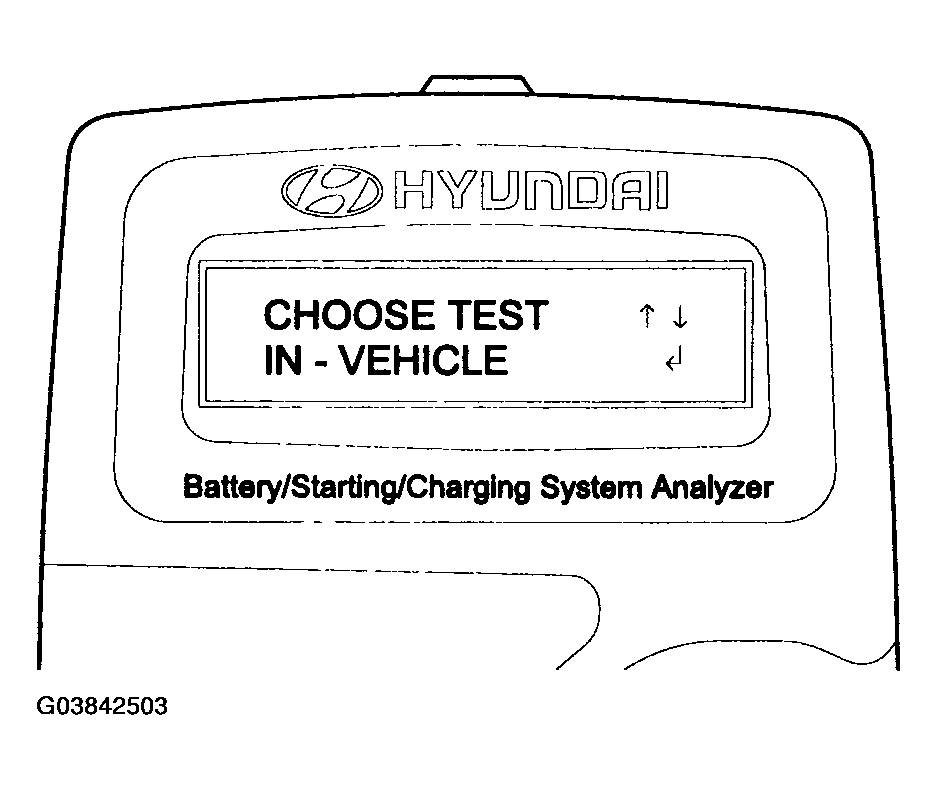

Fig 2: Displaying CHOOSE TEST IN-VEHICLE Screen
Courtesy of HYUNDAI MOTOR CO.
Choose either CCA or CCP and press the ENTER button.

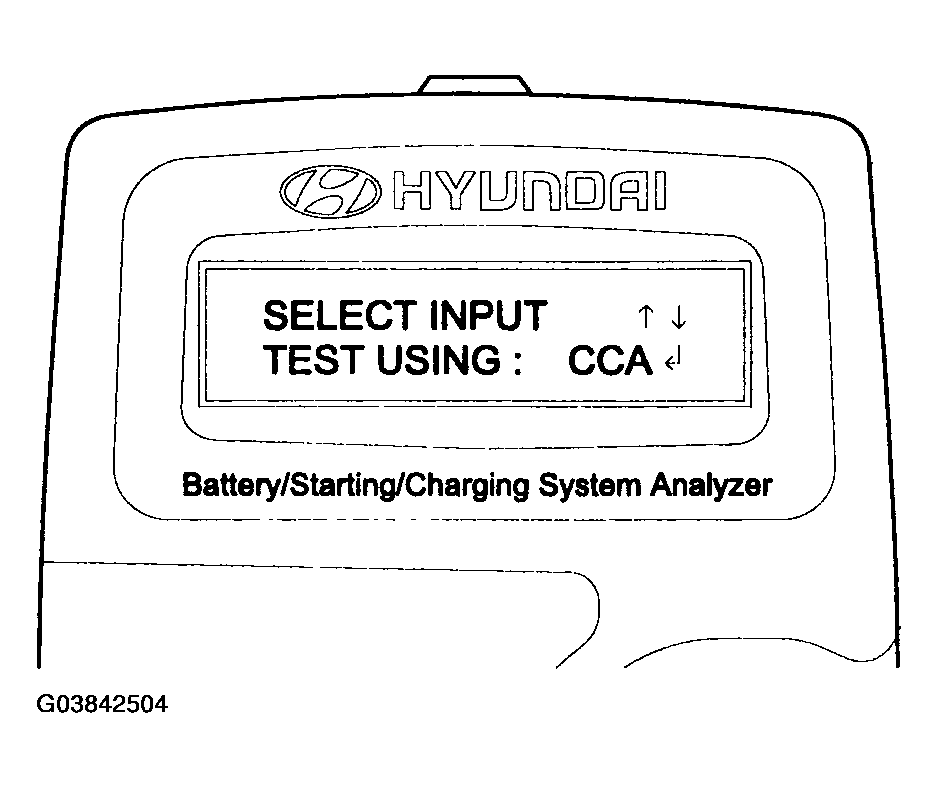

Fig 3: Displaying SELECT INPUT TEST USING: Screen
Courtesy of HYUNDAI MOTOR CO.
NOTE:
- CCA: Cold cranking amps, is an SAE specification for cranking batteries at 0°F (-18°C).
- CCP: Cold cranking power, is an SAE specification for Korean manufacturer's for cranking batteries at 0°F (-18°C).
Set the CCA value displayed on the screen to the CCA value marked on the battery label by pressing up and down buttons and press ENTER.

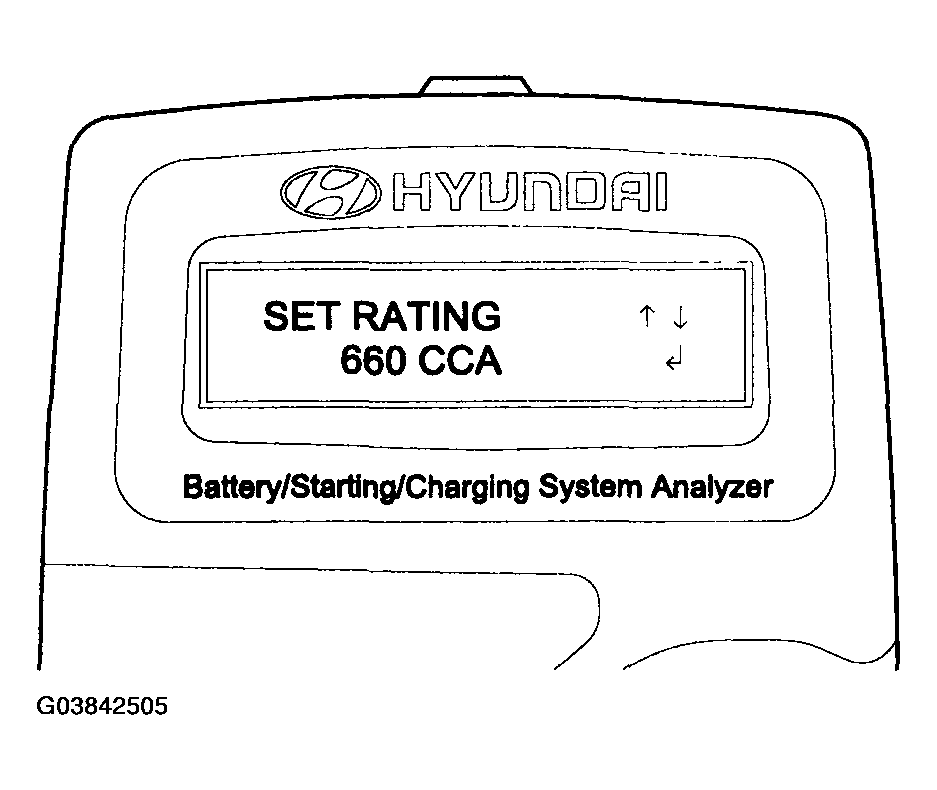

Fig 4: Displaying SET RATING Screen
Courtesy of HYUNDAI MOTOR CO.
The tester (Micro570) displays battery test results including voltage and battery ratings.
A relevant action must be taken according to the test results by referring to the battery test results as shown in BATTERY TEST RESULTS .

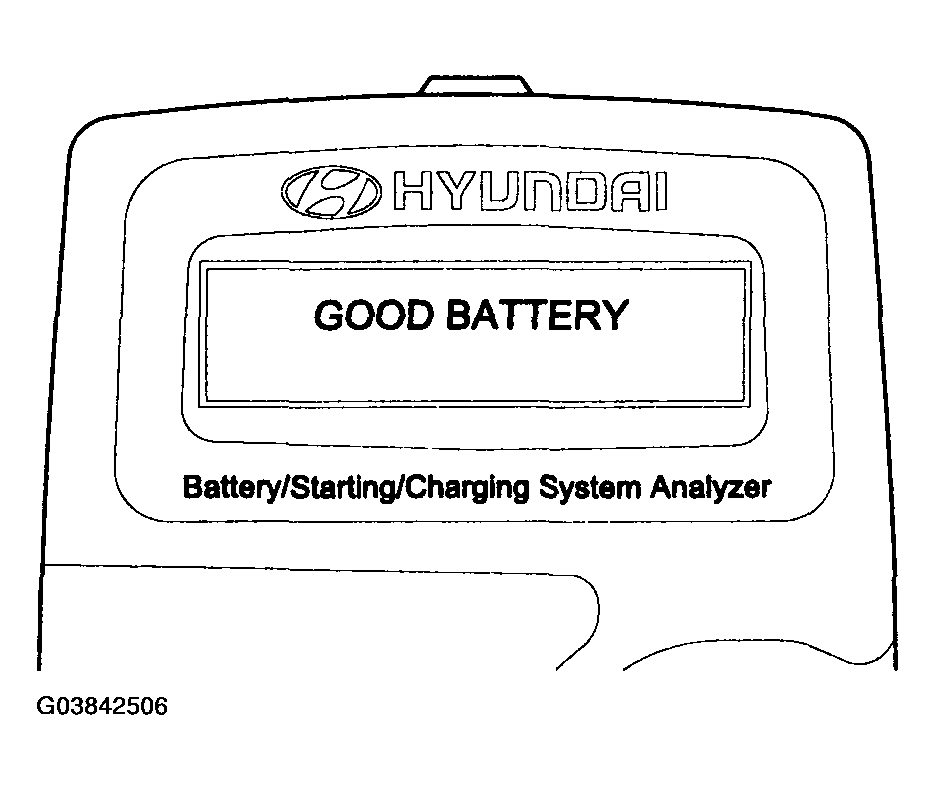

Fig 5: Displaying GOOD BATTERY Screen
Courtesy of HYUNDAI MOTOR CO.

NOTE: The battery ratings (CCA) displayed on the tester must be identical to the ratings marked on the battery label.
To conduct starter test, continuously, press ENTER.
