Control Circuit Inspection

Ignition "OFF"
Disconnect PCM connector
Measure resistance between terminal 2 of the PCSV harness connector and 26 of the PCM harness connector
Specification: Approx. 0Ω

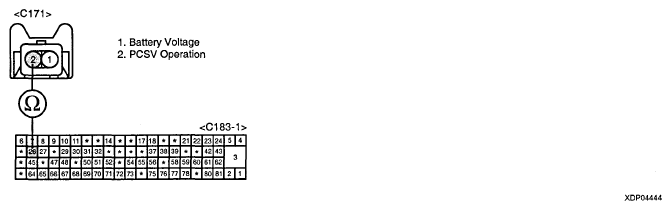

Fig 1: Measuring Resistance Between Terminal 2 Of PCSV Connector And 26 Of PCM Connector
Courtesy of HYUNDAI MOTOR CO.
Is resistance within the specification?
Yes:
- Check for poor connection between PCM and component: backed out terminal, improper mating, broken locks or poor terminal to wire connection. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure
No:
- Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure
