Crankcase Emission Control System: Components

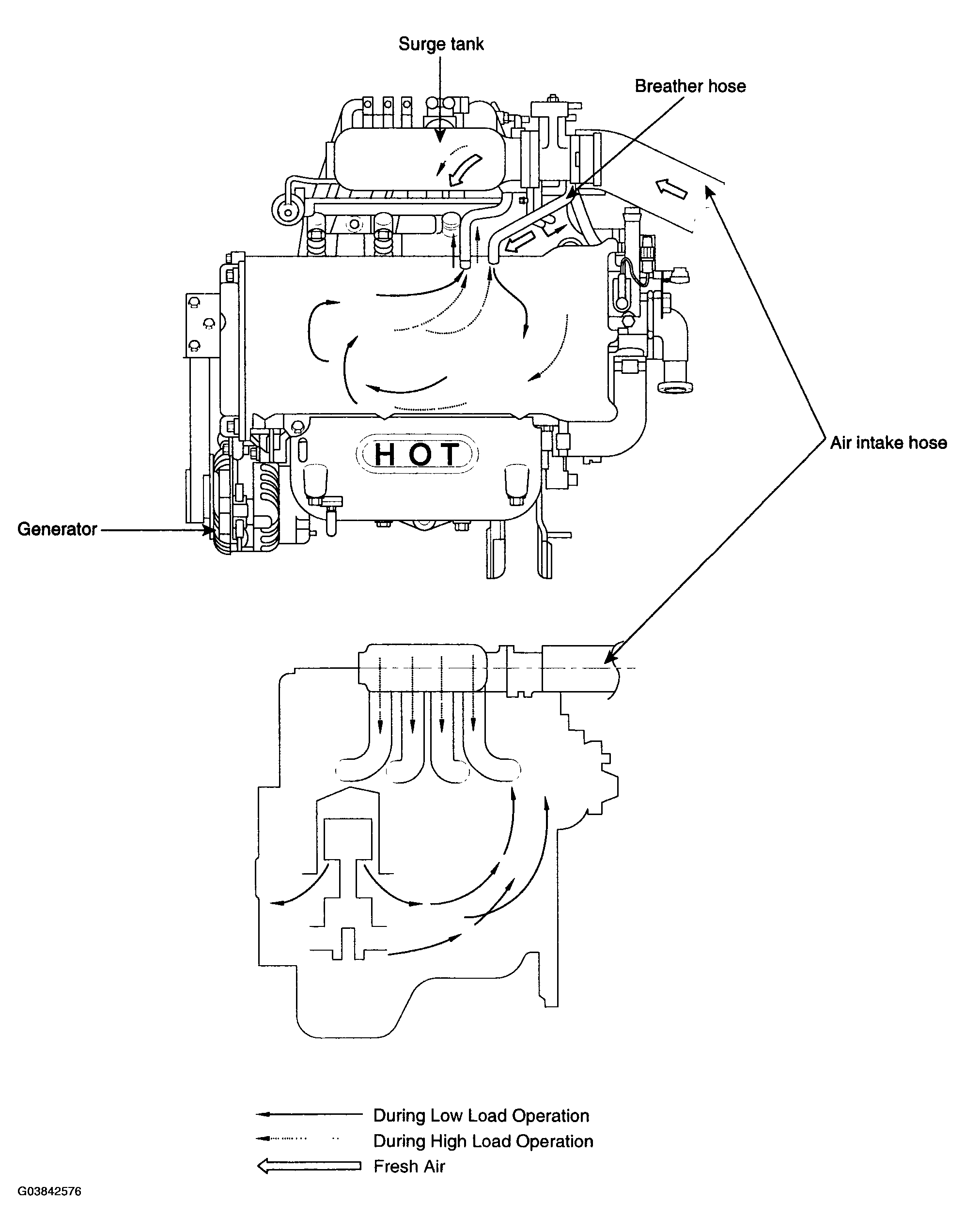

Fig 1: Identifying Crankcase Emission Control System Components

G03842576

Courtesy of HYUNDAI MOTOR CO.
