Electrical Component Locator
>>
Component Location Graphics
Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

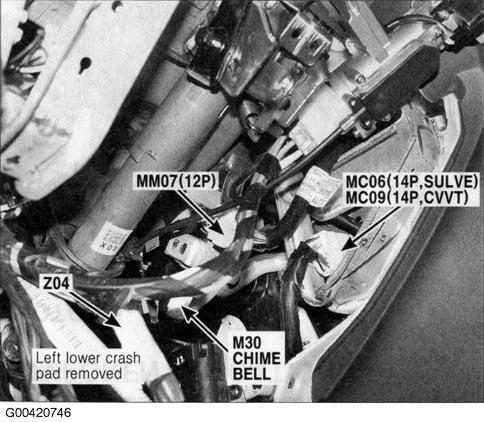

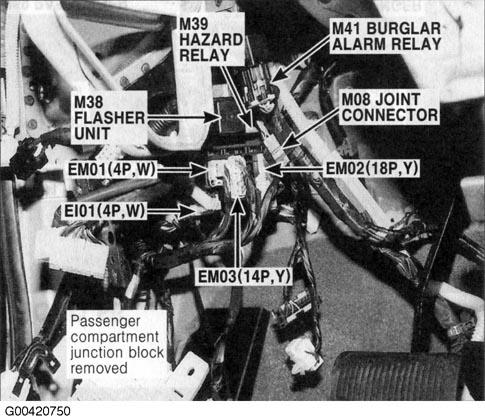

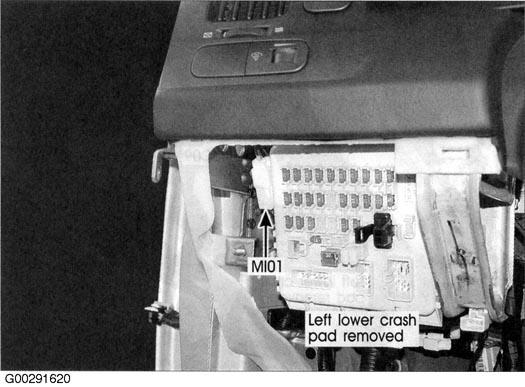

Fig 1: Lower Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 2: Right Center Of Dash
Courtesy of HYUNDAI MOTOR CO.

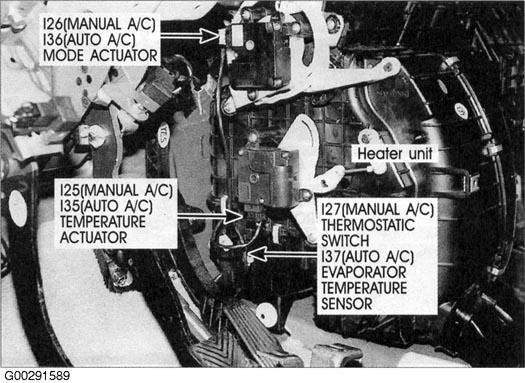

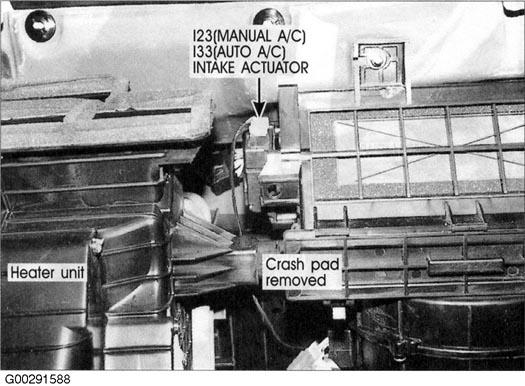

Fig 3: Center Of Dash
Courtesy of HYUNDAI MOTOR CO.

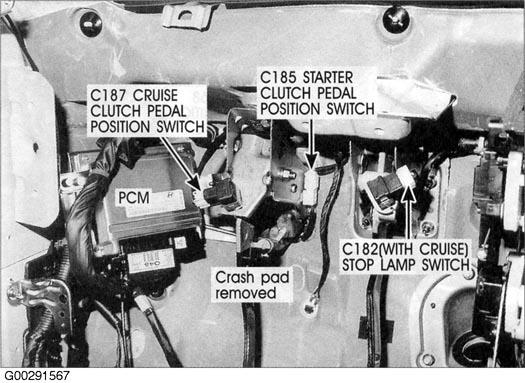

Fig 4: Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.

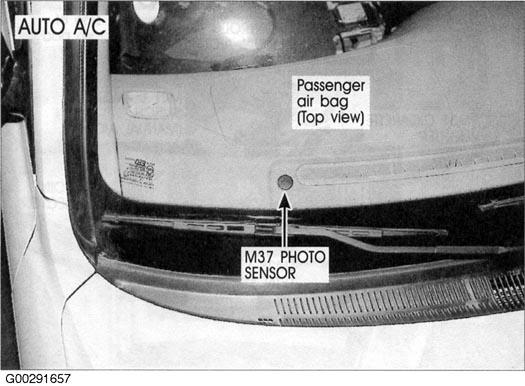

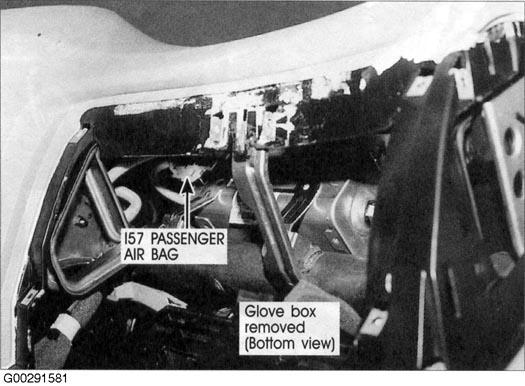

Fig 5: Right Top Of Dash
Courtesy of HYUNDAI MOTOR CO.

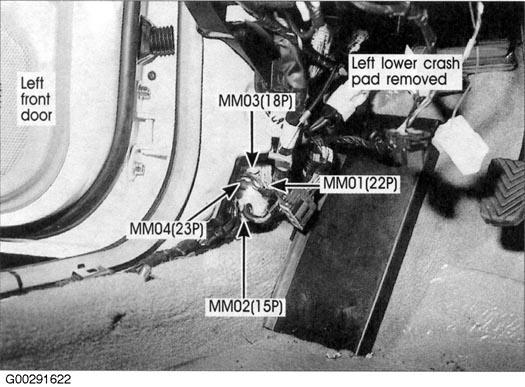

Fig 6: Lower Left End Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 7: Under Driver Seat
Courtesy of HYUNDAI MOTOR CO.

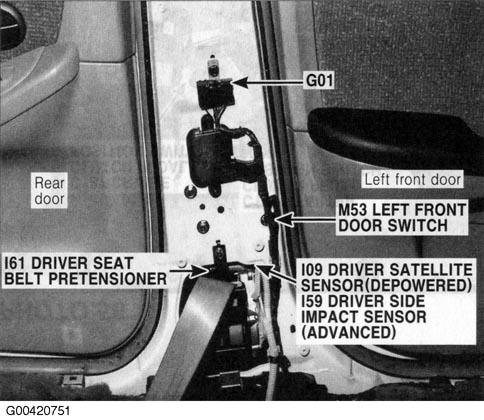

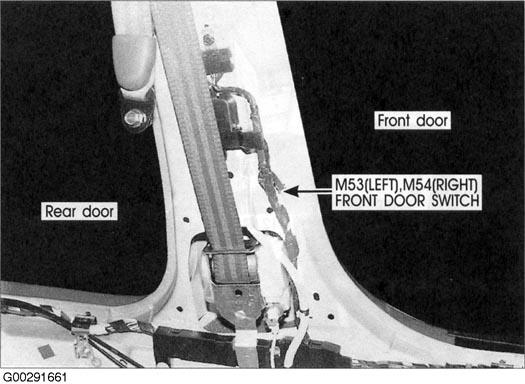

Fig 8: Left "B" Pillar
Courtesy of HYUNDAI MOTOR CO.

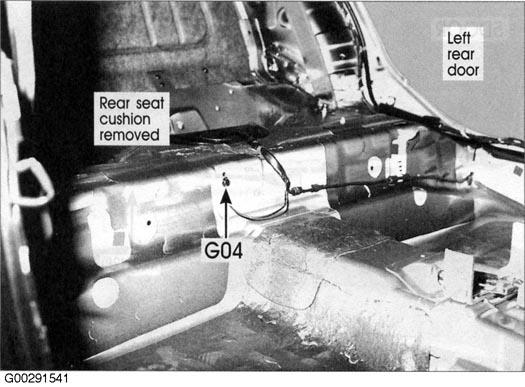

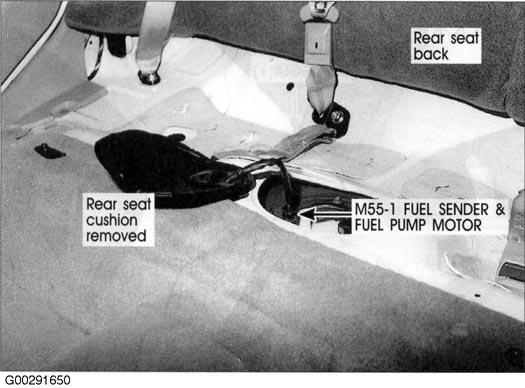

Fig 9: Under Rear Seat
Courtesy of HYUNDAI MOTOR CO.
Fig 10: Above Right End Of Package Shelf
Courtesy of HYUNDAI MOTOR CO.
Fig 11: Right Quarter Panel
Courtesy of HYUNDAI MOTOR CO.

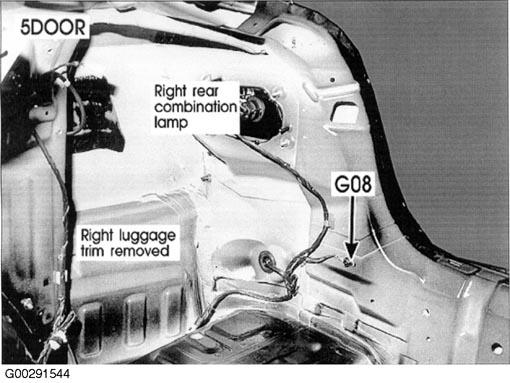

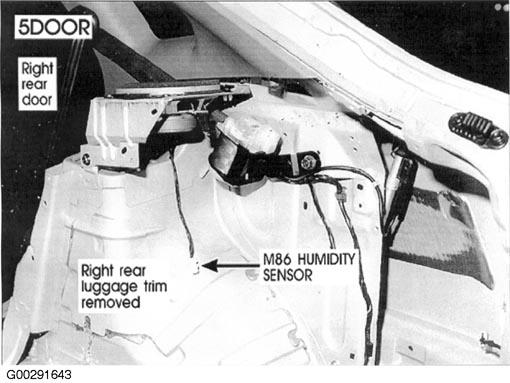

Fig 12: Right Side Of Luggage Area (5 Door)
Courtesy of HYUNDAI MOTOR CO.

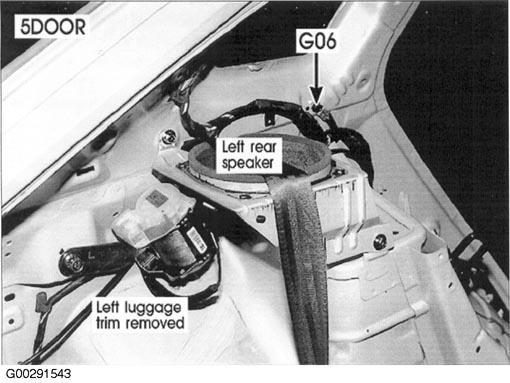

Fig 13: Left Side Of Luggage Area (5 Door)
Courtesy of HYUNDAI MOTOR CO.

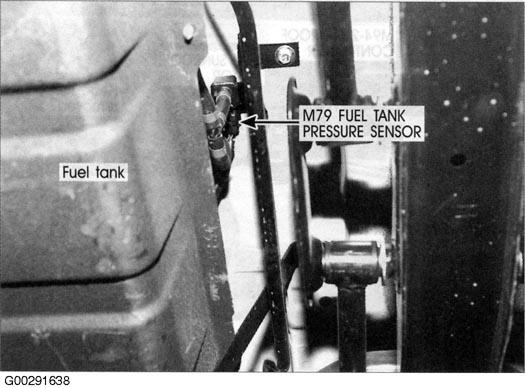

Fig 14: Left Side Of Fuel Tank
Courtesy of HYUNDAI MOTOR CO.

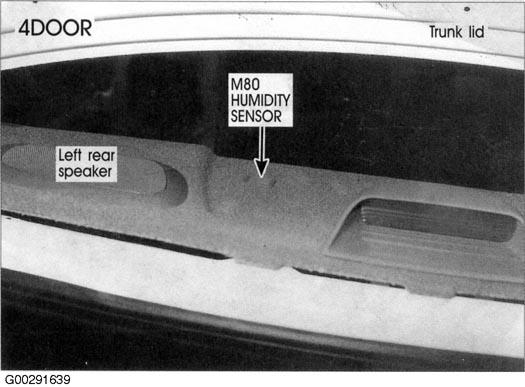

Fig 15: Left Side Of Rear Shelf
Courtesy of HYUNDAI MOTOR CO.
Fig 16: Right Rear Shock Tower (5 Door)
Courtesy of HYUNDAI MOTOR CO.

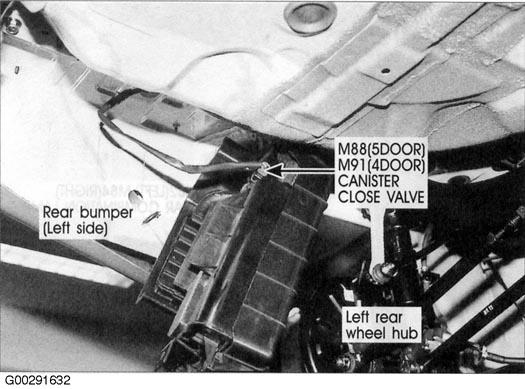

Fig 17: Under Left Rear Of Vehicle
Courtesy of HYUNDAI MOTOR CO.

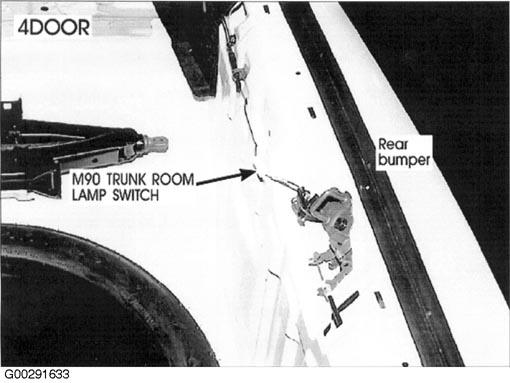

Fig 18: Rear Of Trunk Room
Courtesy of HYUNDAI MOTOR CO.

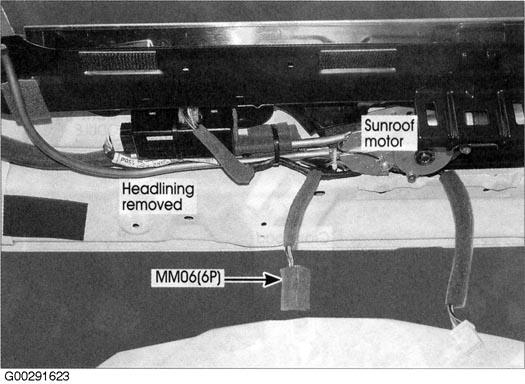

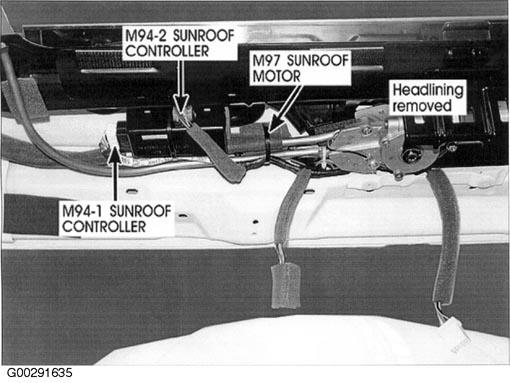

Fig 19: Headliner
Courtesy of HYUNDAI MOTOR CO.

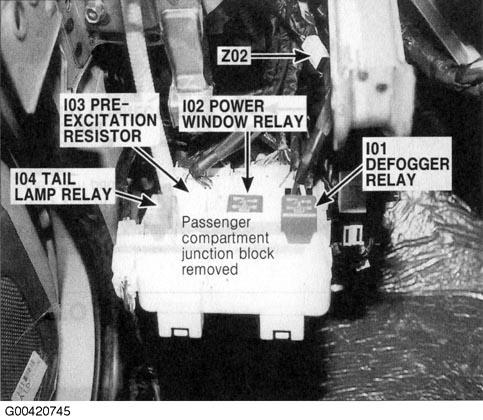

Fig 20: Lower Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 21: Center Of Dash
Courtesy of HYUNDAI MOTOR CO.

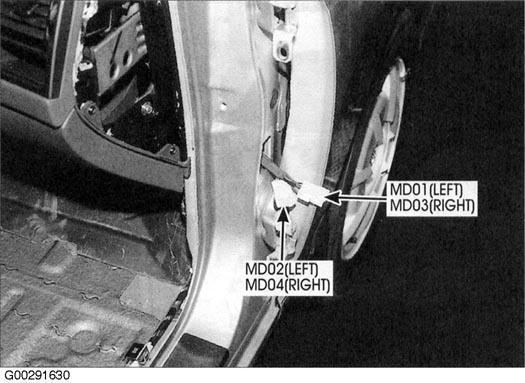

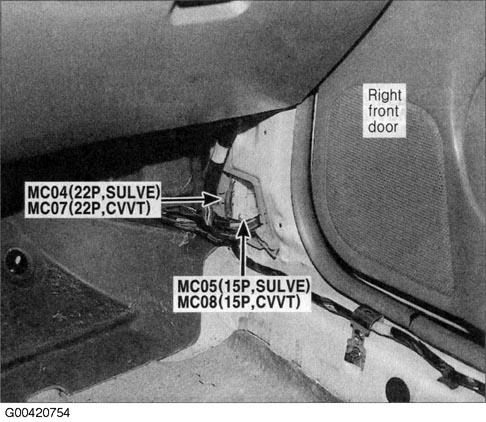

Fig 22: Right Kick Panel
Courtesy of HYUNDAI MOTOR CO.
Fig 23: Left Center Of Dash
Courtesy of HYUNDAI MOTOR CO.

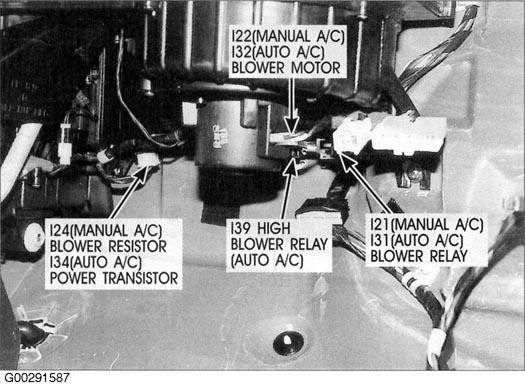

Fig 24: Right End Of Dash
Courtesy of HYUNDAI MOTOR CO.

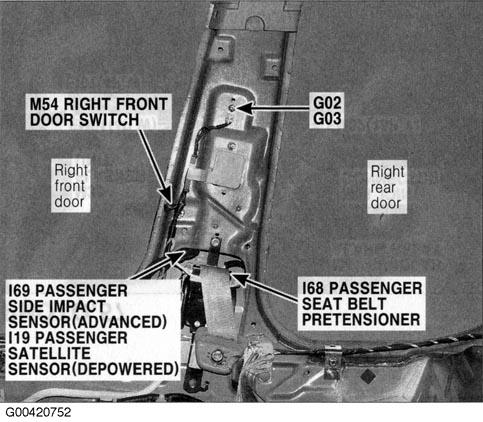

Fig 25: Right "B" Pillar
Courtesy of HYUNDAI MOTOR CO.

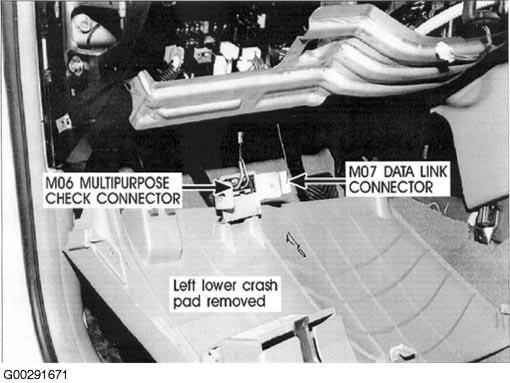

Fig 26: Lower Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 27: Right End Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 28: Left Kick Panel
Courtesy of HYUNDAI MOTOR CO.
Fig 29: Headliner
Courtesy of HYUNDAI MOTOR CO.

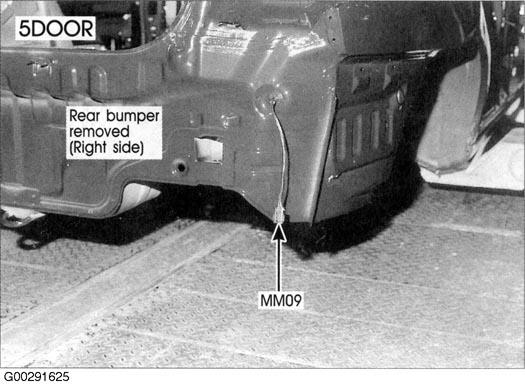

Fig 30: Under Right Rear Of Vehicle (5 Door)
Courtesy of HYUNDAI MOTOR CO.

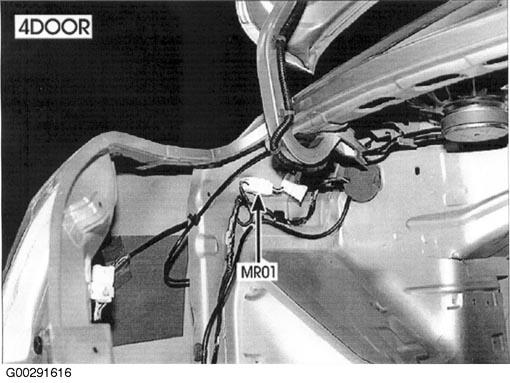

Fig 31: Top Left Front Of Trunk Room
Courtesy of HYUNDAI MOTOR CO.

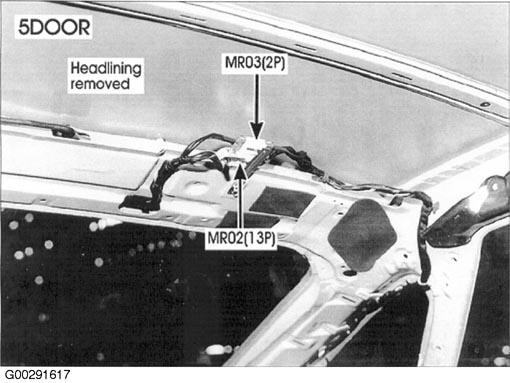

Fig 32: Left Rear Headliner
Courtesy of HYUNDAI MOTOR CO.

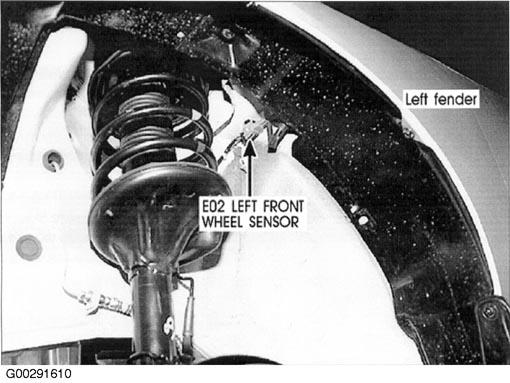

Fig 33: Left Front Wheel
Courtesy of HYUNDAI MOTOR CO.

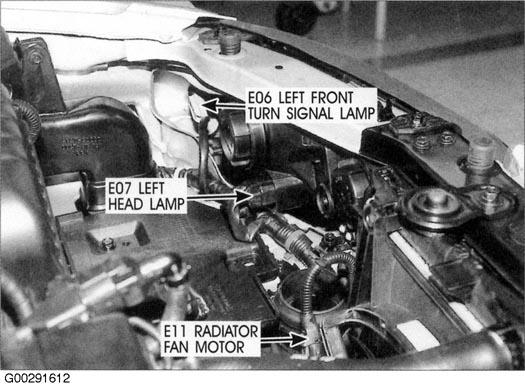

Fig 34: Left Front Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.

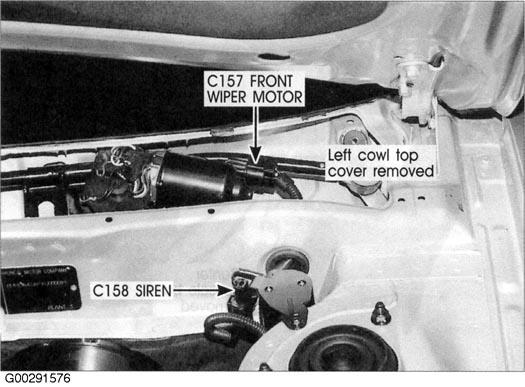

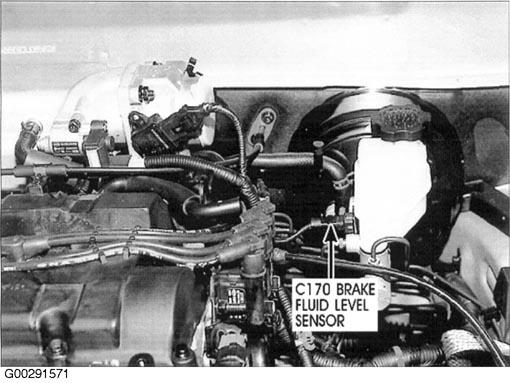

Fig 35: Left Rear Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.

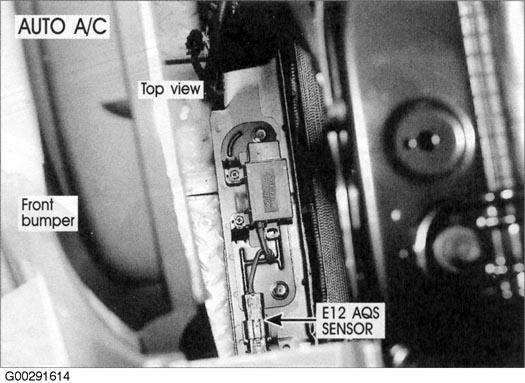

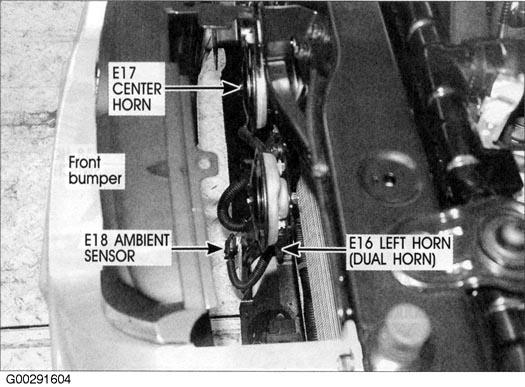

Fig 36: Behind Center Of Front Bumper
Courtesy of HYUNDAI MOTOR CO.
Fig 37: Left Front Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 38: Right Front Of Engine
Courtesy of HYUNDAI MOTOR CO.

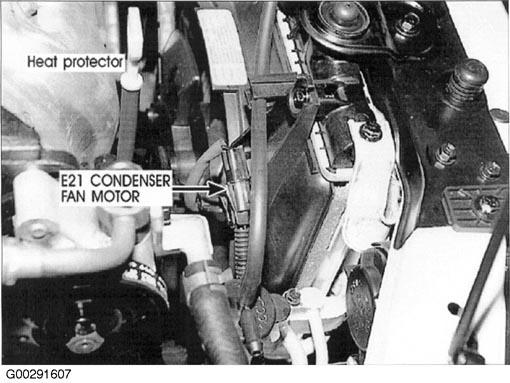

Fig 39: Right Front Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 40: Right Side Of Engine
Courtesy of HYUNDAI MOTOR CO.

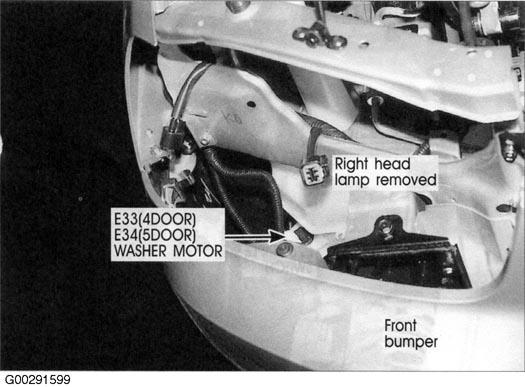

Fig 41: Right Front Corner Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 42: Right Front Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.

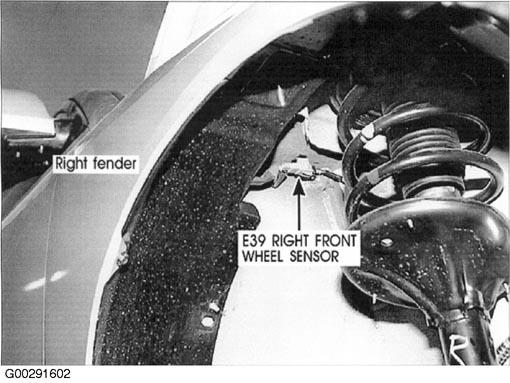

Fig 43: Right Front Wheel
Courtesy of HYUNDAI MOTOR CO.

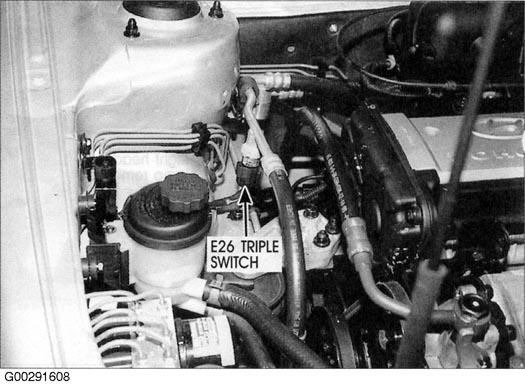

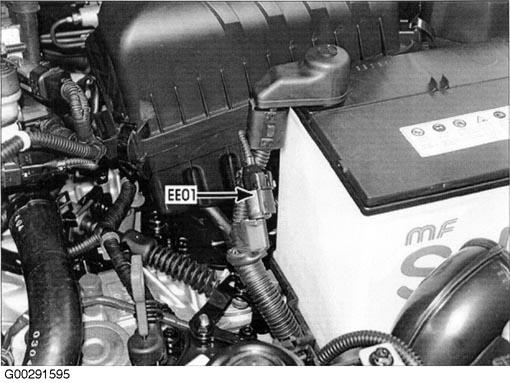

Fig 44: Left Side Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.

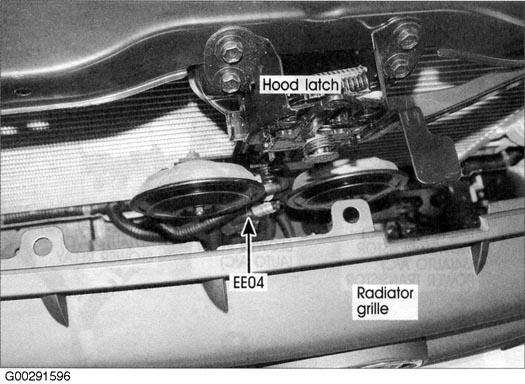

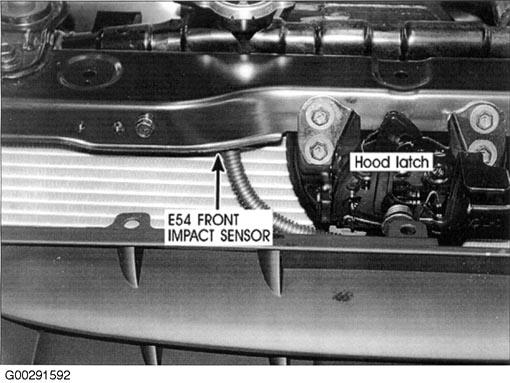

Fig 45: Front Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 46: Left Side Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.

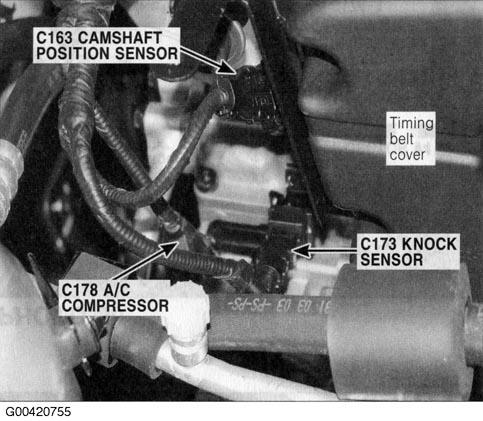

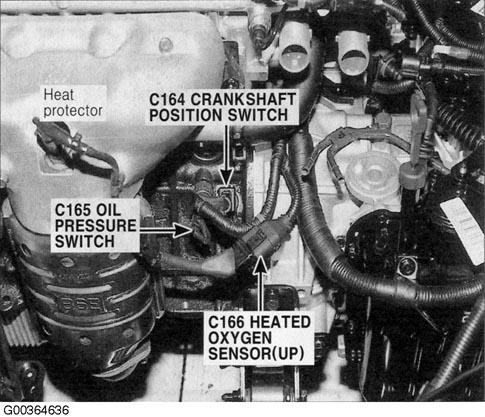

Fig 47: Front Of Engine
Courtesy of HYUNDAI MOTOR CO.
Fig 48: Left Front Of Engine
Courtesy of HYUNDAI MOTOR CO.
Fig 49: Front Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 50: Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 51: Lower Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.

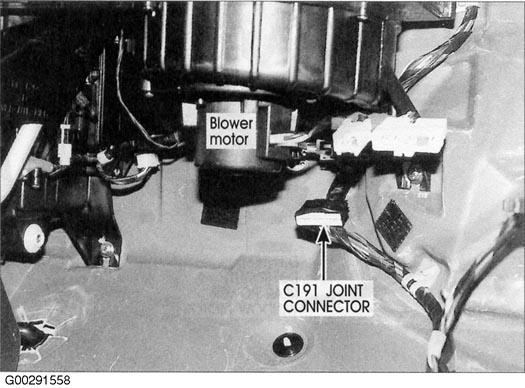

Fig 52: Lower Right Side Of Dash
Courtesy of HYUNDAI MOTOR CO.

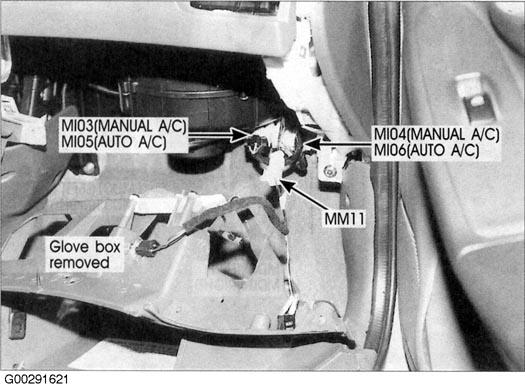

Fig 53: Right Center Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 54: Left Center Of Dash
Courtesy of HYUNDAI MOTOR CO.

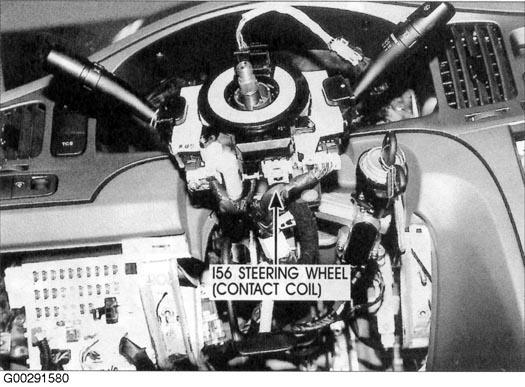

Fig 55: Top Of Steering Column
Courtesy of HYUNDAI MOTOR CO.
Fig 56: Right Side Of Dash
Courtesy of HYUNDAI MOTOR CO.

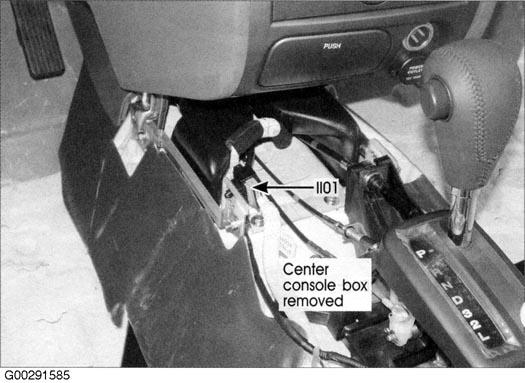

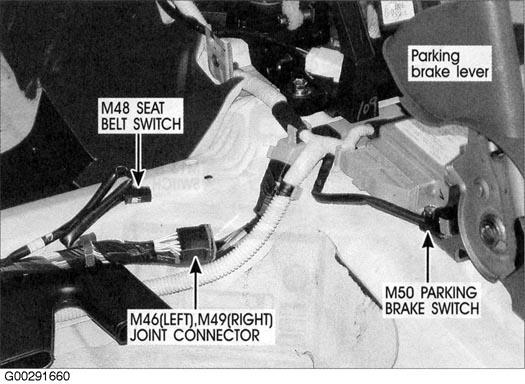

Fig 57: Center Console
Courtesy of HYUNDAI MOTOR CO.

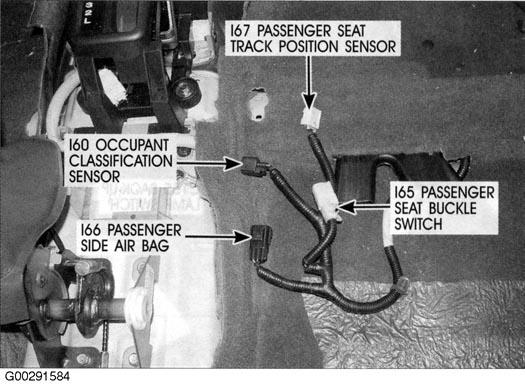

Fig 58: Under Front Passenger Seat
Courtesy of HYUNDAI MOTOR CO.
Fig 59: Center Console
Courtesy of HYUNDAI MOTOR CO.

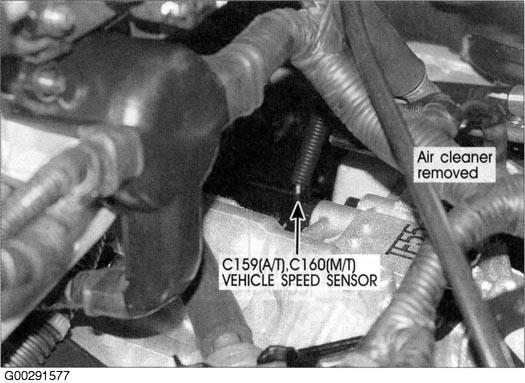

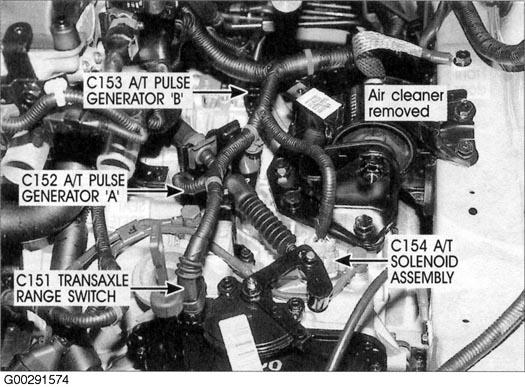

Fig 60: Transaxle
Courtesy of HYUNDAI MOTOR CO.
Fig 61: Left Front Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.

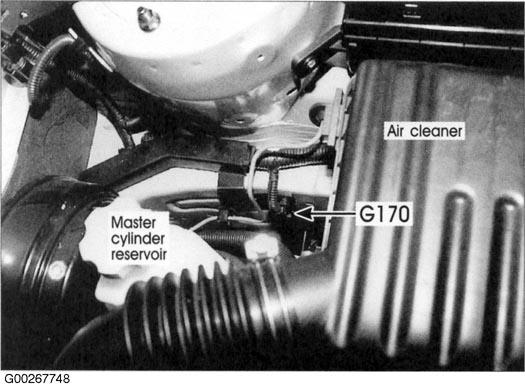

Fig 62: Left Rear Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.

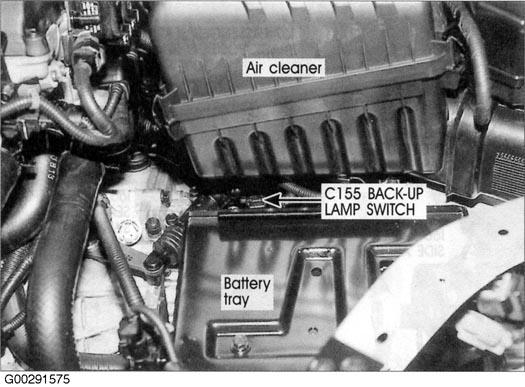

Fig 63: Transaxle
Courtesy of HYUNDAI MOTOR CO.
Fig 64: Left Front Of Engine
Courtesy of HYUNDAI MOTOR CO.
Fig 65: Left Front Of Engine
Courtesy of HYUNDAI MOTOR CO.
Fig 66: Left Rear Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.

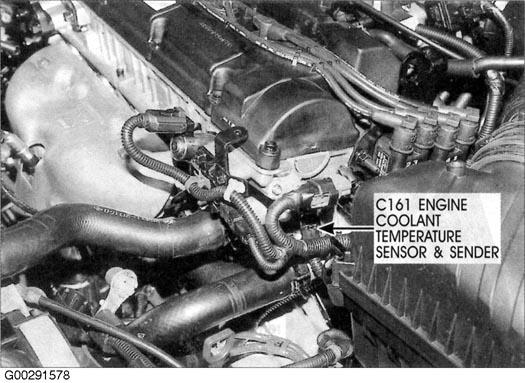

Fig 67: Top Left End Of Engine
Courtesy of HYUNDAI MOTOR CO.

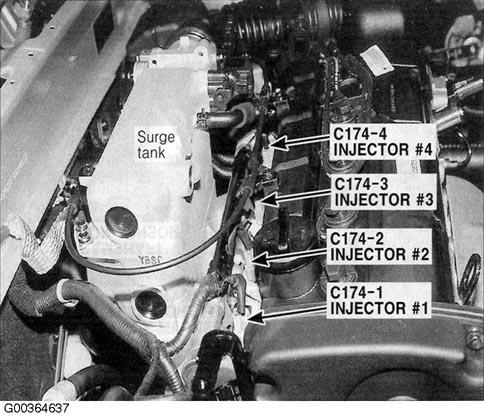

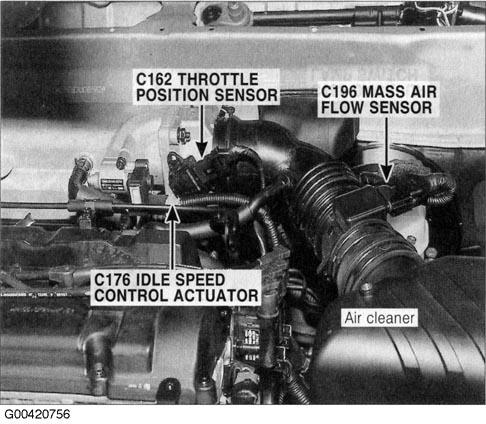

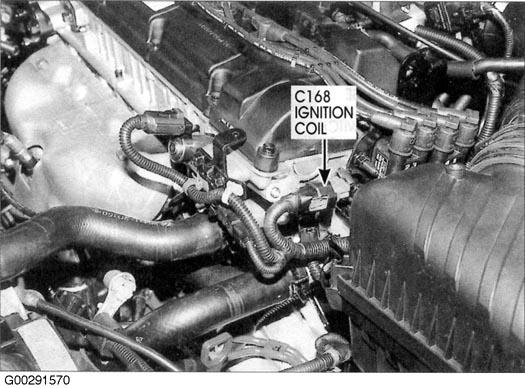

Fig 68: Engine
Courtesy of HYUNDAI MOTOR CO.

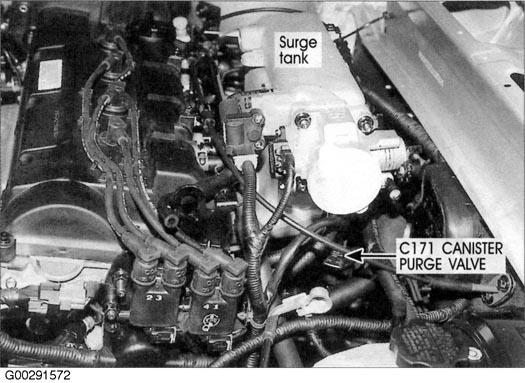

Fig 69: Engine
Courtesy of HYUNDAI MOTOR CO.
Fig 70: Right Rear Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 71: Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 72: Lower Right Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 73: Left Front Of Engine
Courtesy of HYUNDAI MOTOR CO.

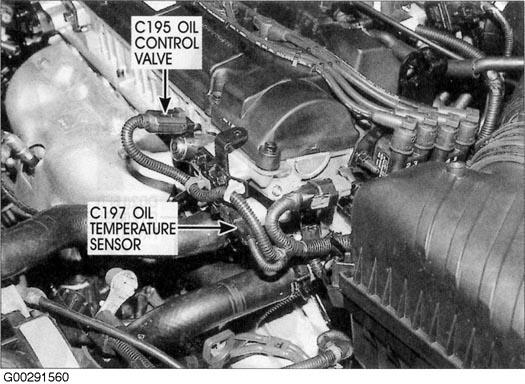

Fig 74: Engine
Courtesy of HYUNDAI MOTOR CO.

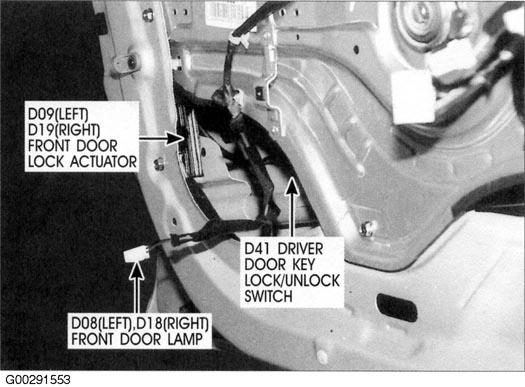

Fig 75: Left Front Door
Courtesy of HYUNDAI MOTOR CO.

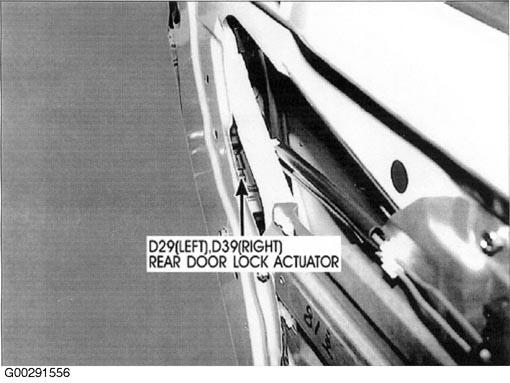

Fig 76: Left Rear Door
Courtesy of HYUNDAI MOTOR CO.

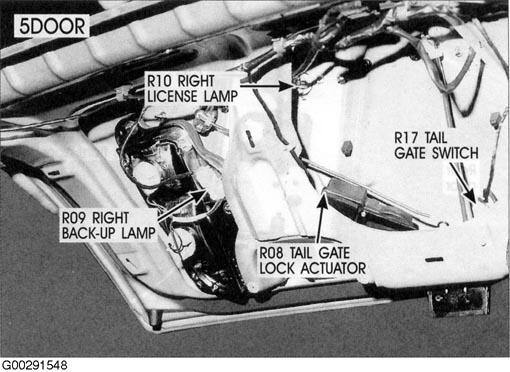

Fig 77: Tail Gate (5 Door)
Courtesy of HYUNDAI MOTOR CO.

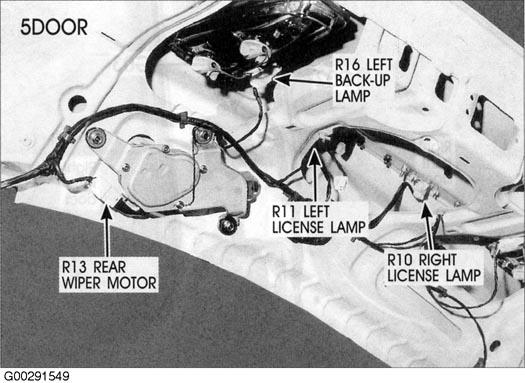

Fig 78: Tail Gate (5 Door)
Courtesy of HYUNDAI MOTOR CO.

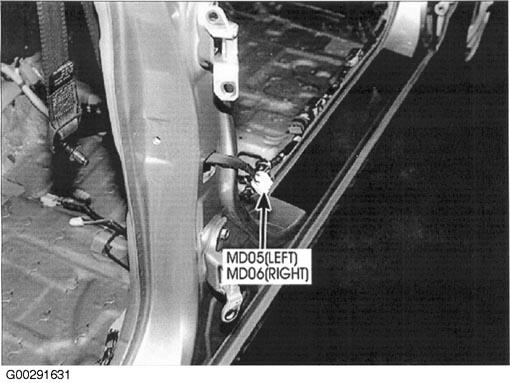

Fig 79: Left "B" Pillar
Courtesy of HYUNDAI MOTOR CO.
Fig 80: Right "B" Pillar
Courtesy of HYUNDAI MOTOR CO.
Fig 81: Below Center Of Rear Seat
Courtesy of HYUNDAI MOTOR CO.

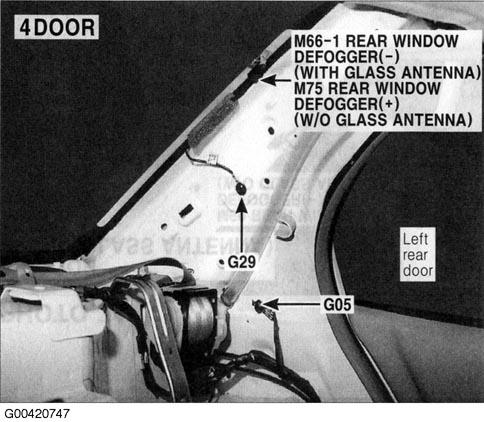

Fig 82: Left "C" Pillar (4 Door)
Courtesy of HYUNDAI MOTOR CO.

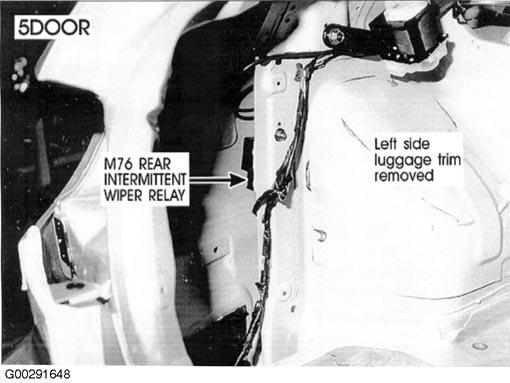

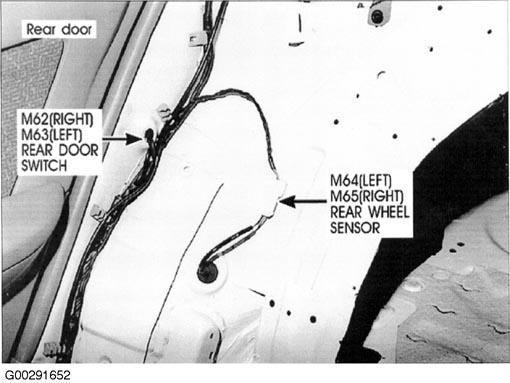

Fig 83: Left Side Luggage Area (5 Door)
Courtesy of HYUNDAI MOTOR CO.

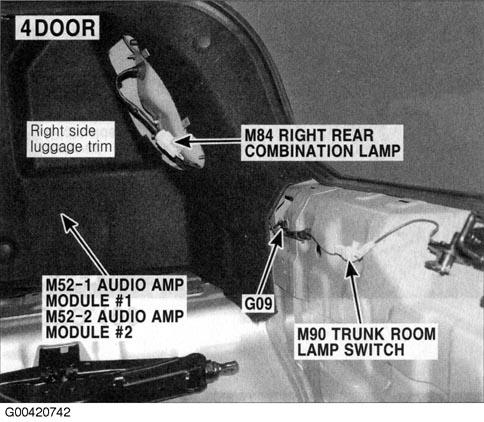

Fig 84: Right Rear Of Trunk Room
Courtesy of HYUNDAI MOTOR CO.

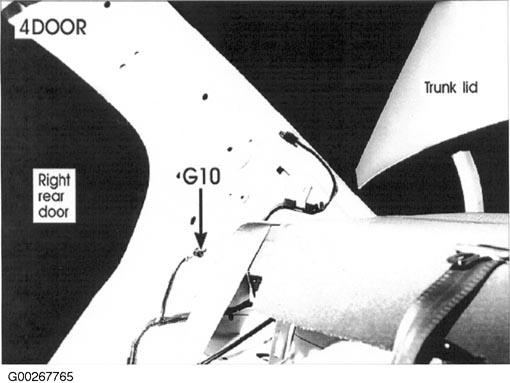

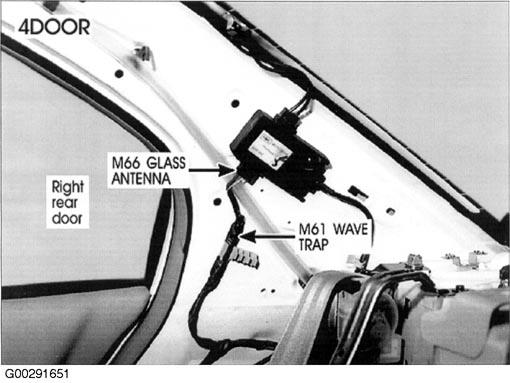

Fig 85: Right "C" Pillar
Courtesy of HYUNDAI MOTOR CO.

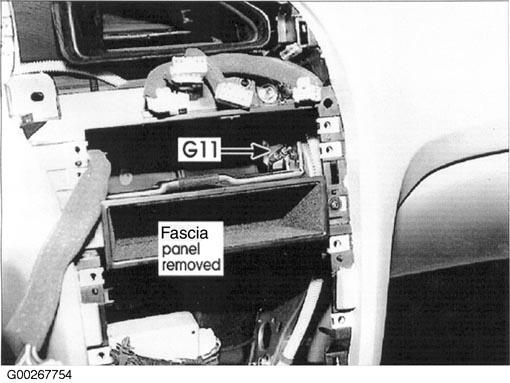

Fig 86: Center Of Dash
Courtesy of HYUNDAI MOTOR CO.

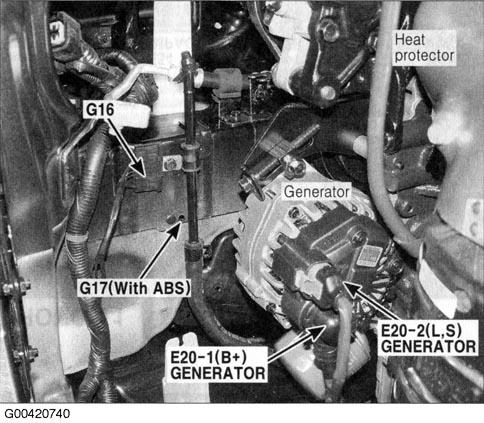

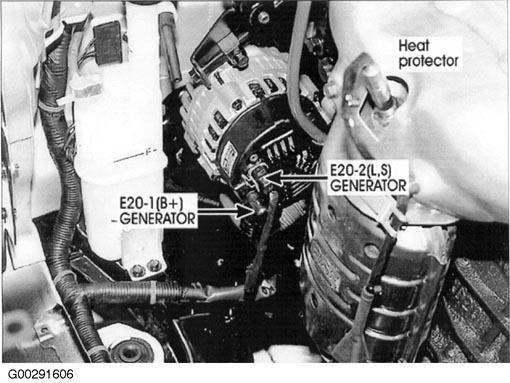

Fig 87: Near Generator
Courtesy of HYUNDAI MOTOR CO.

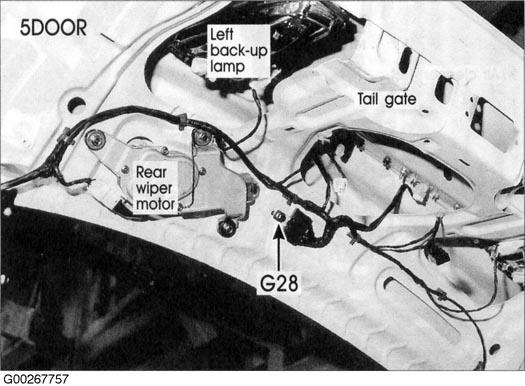

Fig 88: Tail Gate (5 Door)
Courtesy of HYUNDAI MOTOR CO.

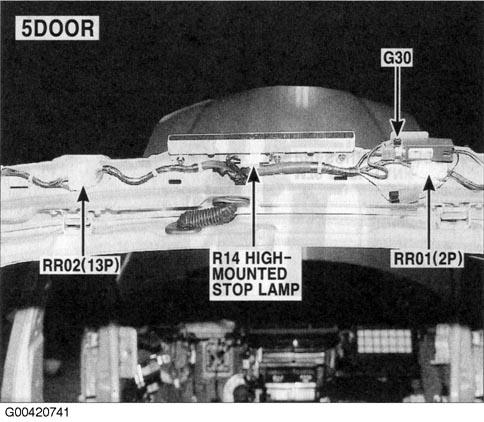

Fig 89: Top Of Tail Gate (5 Door)
Courtesy of HYUNDAI MOTOR CO.

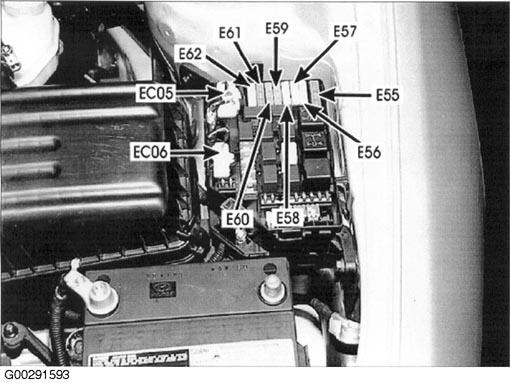

Fig 90: Left Side Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.

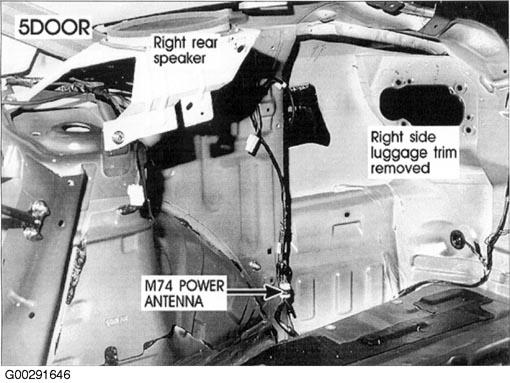

Fig 91: Right Side Of Luggage Area (5 Door)
Courtesy of HYUNDAI MOTOR CO.
Fig 92: Ignition Switch
Courtesy of HYUNDAI MOTOR CO.

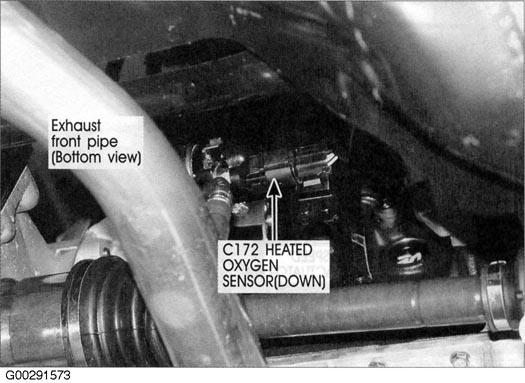

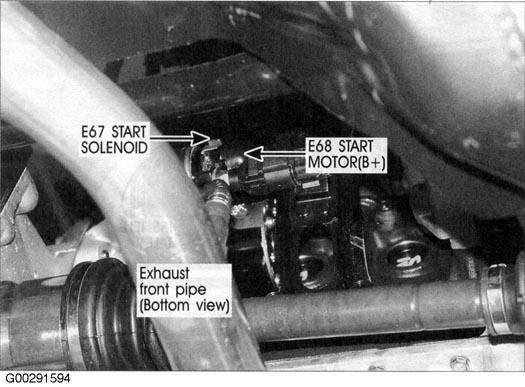

Fig 93: Left Rear Of Engine
Courtesy of HYUNDAI MOTOR CO.
Fig 94: Top Of Engine
Courtesy of HYUNDAI MOTOR CO.

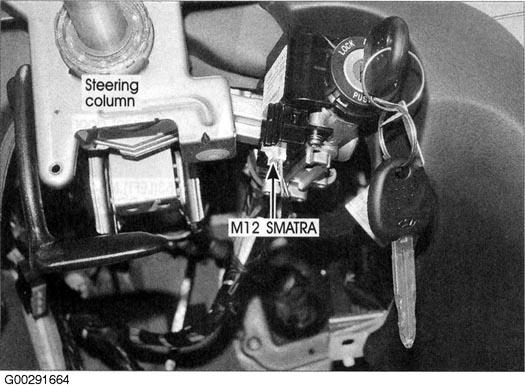

Fig 95: Steering Column
Courtesy of HYUNDAI MOTOR CO.
