Charging System: Generator: Components

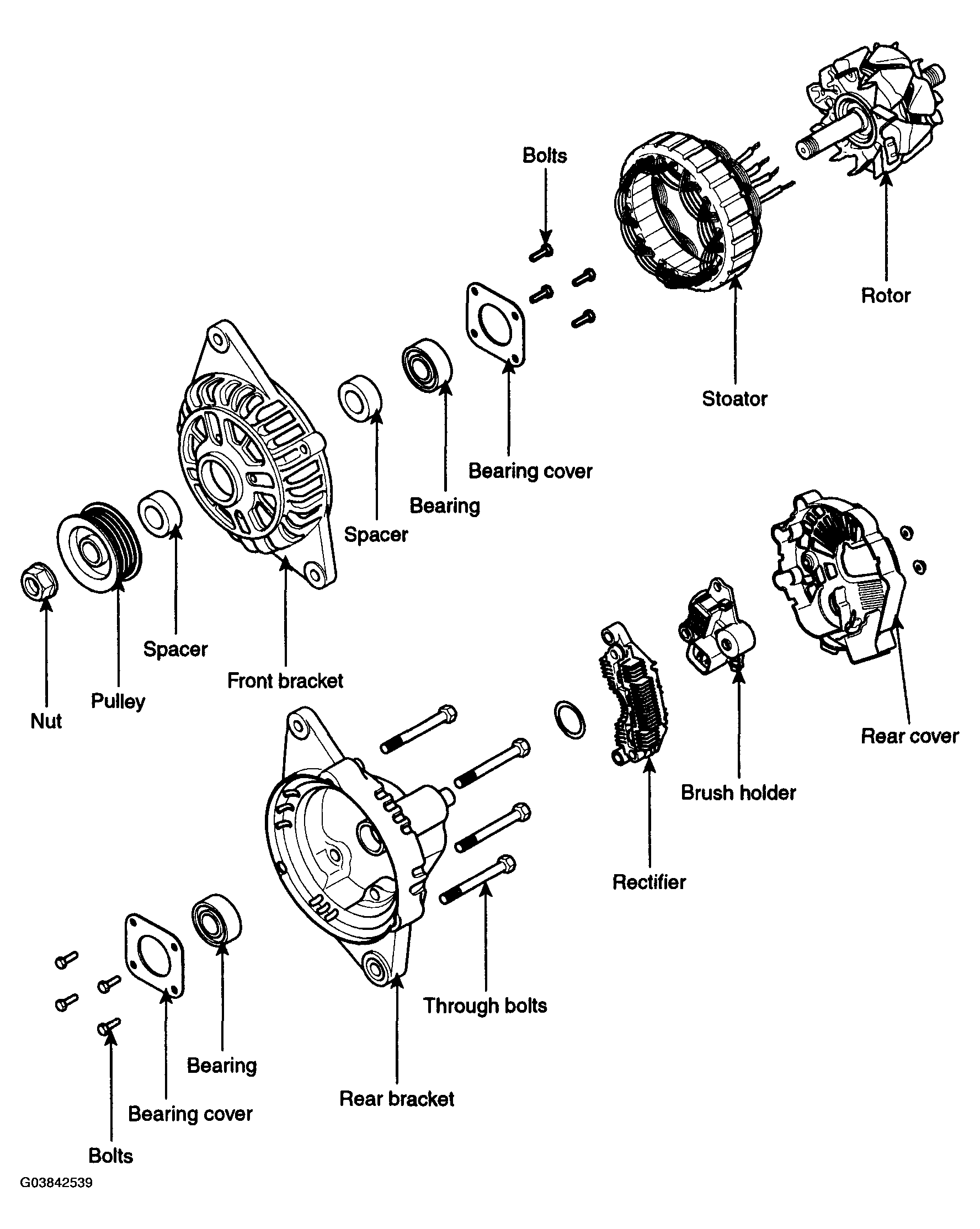

Fig 1: Identifying Charging System Components

G03842539

Courtesy of HYUNDAI MOTOR CO.
